AIMS Power www.aimscorp.net

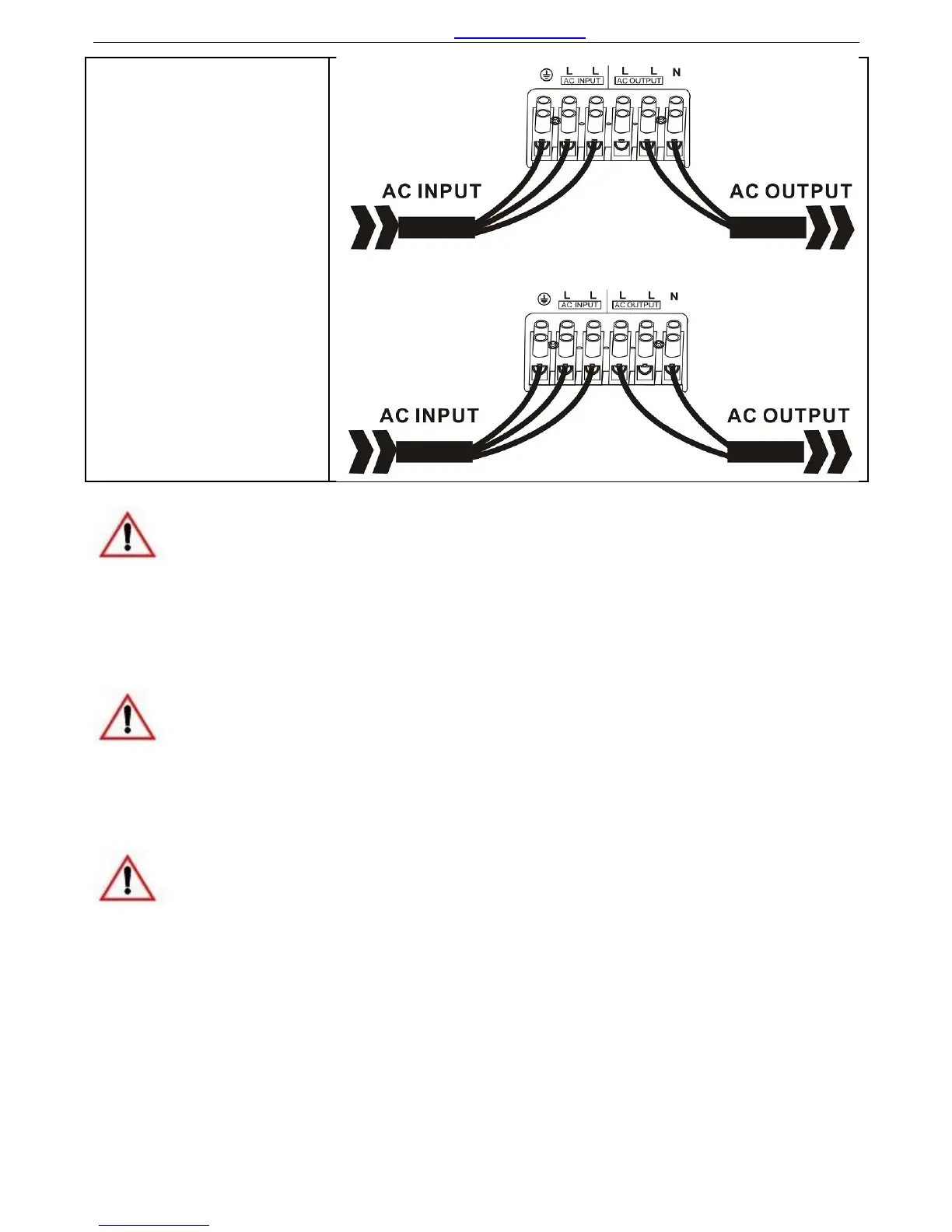

Wiring Option 3
230V split phase
Input: Hot line+ Hot line +Ground
Output: Hot line +Neutral
Remark: In such case, each output
hotline can only carry a max of
half the rated capacity.
Caution:
Wiring Option 2 and Wiring Option 3 are only allowed for the following models:
PICOGLF50W24V230VS, PICOGLF50W48V230VS, PICOGLF60W24V230VS,
PICOGLF60W48V230VS.
Pls wire all the other models according to Wiring Option 1.
WARNING
For split phase models, AC input neutral is not required in wiring. Never Connect Input Neutral to
Output Neutral. Damage will result which is not covered under warranty.
Always switch on the inverter before plugging in any appliance.
WARNING
The output voltage of this unit must never be connected in its input AC terminal, overload or damage
may result.
Always switch on the inverter before plugging in any appliance.
3.4 Grounding
Connect an AWG 8 gauge or greater copper wire between the grounding terminal on the inverter and the
earth grounding system or the vehicle chassis.
19
