Aiphone IX-DVF User Manual

12
Before you start using the
device

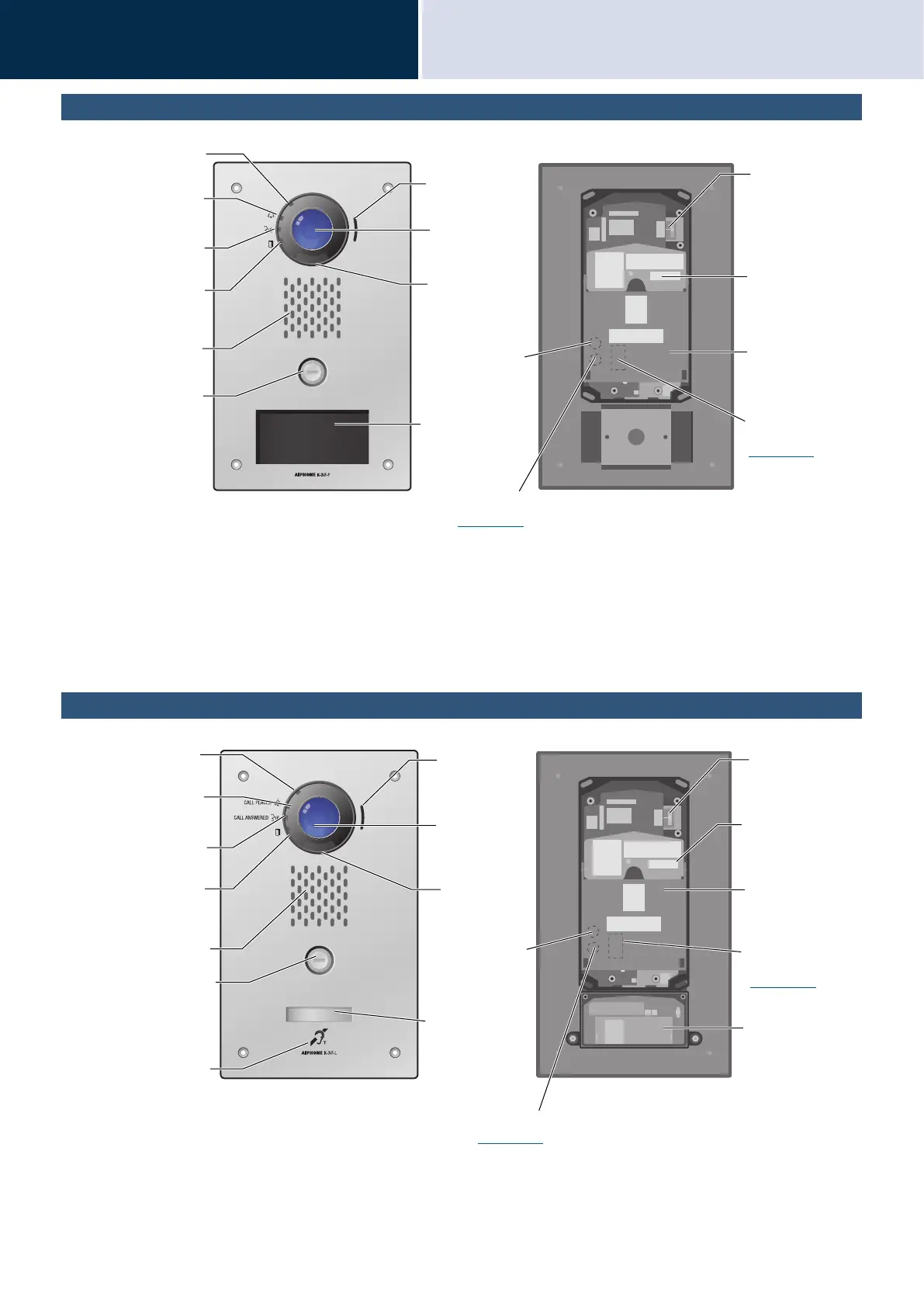

Part Names
2
Video Door Station IX-DVF-P
*1 Pressing the [Call] button turns the light ON when in a dark location, such as at night. The light turns OFF once the call has
ended.
It also lights ON when being monitored by the Master Station.
There may be cases where it is configured to not light ON.
*2 The angle of the camera can be adjusted up and down.
*3 This is for use by service personnel only. Do not press it.
Video Door Station IX-DVF-L
*1 Pressing the [Call] button turns the light ON when in a dark location, such as at night. The light turns OFF once the call has
ended.
It also lights ON when being monitored by the Master Station.
Call button
Area around is lit up
with blue light
Status indicator
(orange/blue)
Call indicator (green)
Communication
indicator (orange)
Door release indicator
(green)
Speaker
Microphone
Camera
Night LED
illumination
*1
Reset button*
*3
HID
®
reader
microSD card eject button*
(→page 22)
Camera angle
adjusting lever
*2
MAC address
Terminal cover
microSD card
slot*
(→page 22)
*Found by removing terminal cover.
Status indicator
(orange/blue)
Call indicator (green)
Communication
indicator (orange)
Door release indicator
(green)
Speaker
Microphone
Camera
Night LED
illumination
*1
Call button
Area around is lit up with
blue light
Hearing aid T-mode
compatibility symbol
*4
Nameplate
(with backlight)
Reset button*
*3
microSD card eject button*
(→page 22)
Camera angle
adjusting lever
*2
MAC address
Terminal cover
microSD card
slot*
(→page 22)
*Found by removing terminal cover.
Hearing aid unit

Aiphone IX-DVF Specifications

General

Resolution	720p
Video Compression	H.264
Ingress Protection	IP65
Vandal Resistance	IK08
Operating Voltage	48 VDC (PoE)
Power Source	PoE (IEEE 802.3af)
Operating Temperature	-40° to 140°F (-40° to 60°C)
Communication	IP
Call Tone	Chime
