IXW-MA Settings
Change Contact
Check the Change Contact box for
each station that will communicate
with the IXW-MA.
Click Update to save the SIF
and Change Contact settings.
Update

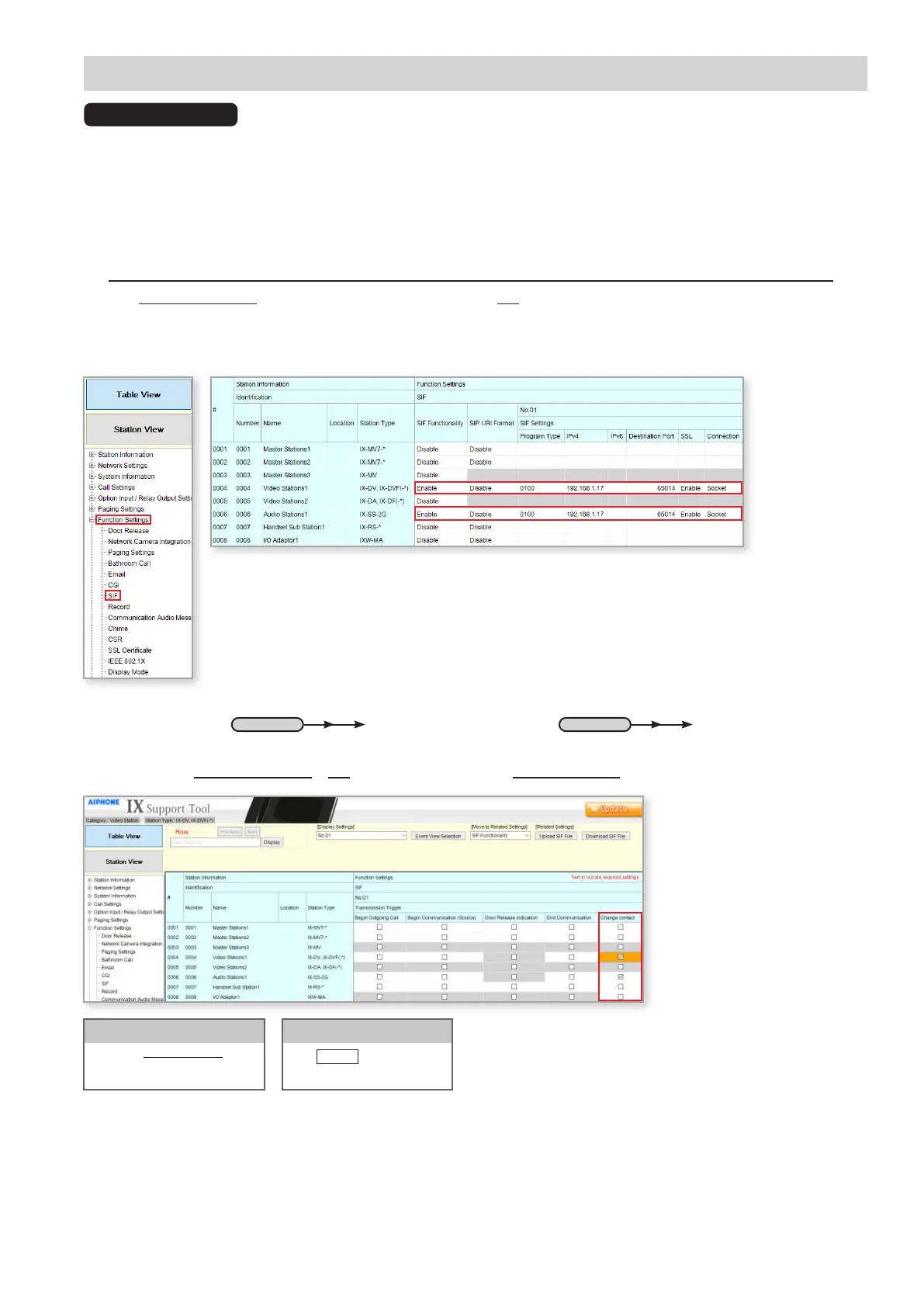

While still on the Function Settings > SIF screen, scroll right to nd Change Contact.
Getting Started
The IXW-MA is an IP relay with 10 congurable outputs that can be remotely triggered by a station based on status conditions
dened in Support Tool. Typically, these outputs are used for remote door release or external signalling activation. The
following steps detail the conguration for using the outputs of the IXW-MA for door release.
ThesestepsshouldbefollowediftheIXW-MAwasincludedwhencreatinganewsystem.IftheIXW-MAneedstobeadded
tothesystem,refertopage8(AddingaNewStation)andreturntothissectiononcecomplete.
Expand Function Settings on the left-hand side menu and select SIF. Note that the SIF event trigger for door release is sent
by the door station, and not the master station, so the following steps use door stations as examples. Enter the information
shown below for each door station that requires remote activation for door release. This step allows communication between
the IXW-MA and IX Series door and master stations.
SIF Functionality: Enable for each station interacting with the IXW-MA.
Program Type: 0100 for each station.
IPv4: Enter the IP address of the IXW-MA.
Destination Port / SSL: 65014 when SSL is Enabled (65013whenSSLisDisabled)
Connection: Socket
Scroll RightScroll Right
Step 1: SIF Settings
To Next Page
