Aiphone IX SERIES Owners & Installation Manual

- 10 -

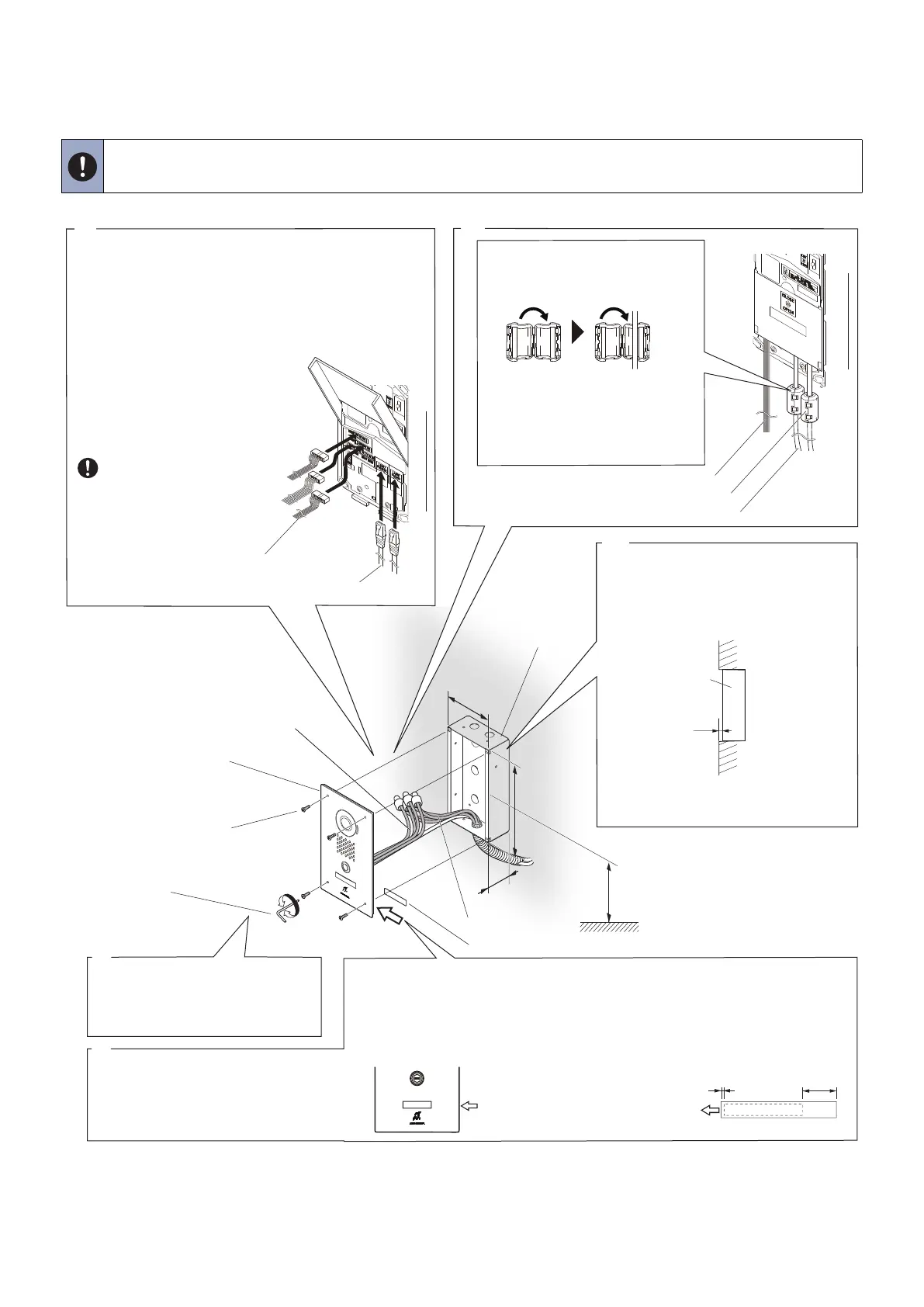

● IX-DVF, IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L, IX-SSA, IX-SSA-2RA,
IX-SSA-RA (flush mount)
• When installing the unit on a rough surface, please use sealant to seal the unit edges to prevent water entering the unit.
If the unit edges are left unsealed on a rough surface, IP65 ingress protection rating is not guaranteed.
ABCDEFG
5
1
4
2
3
Tighten
e.g.) IX-DVF-L
To insertion
opening
To insertion
opening
(1) Peel off the protective plastic on the plate
(both sides).
(2) Fill in the name on the transparent name plate.
· Be sure to leave 25 mm (1") of white space on the right end to account for insertion.
(3) Insert the filled-in transparent name plate at the specified insertion opening (indicated
with arrow to the right).
Install the back box in the wall.
Recommended Mounting height (box center)
1,500 mm (4'11'')
(max.1,850mm (6' 3/4"))
Insert the transparent name plate.
(IX-DVF-L only)
Loosen
Back box (included)
Vandal-resistant front panel with
the unit attached
148 mm *
(5-13/16'')
60 mm
(2-3/8
'')
267 mm **
(10-1/2
'')
Special screws (included) × 4
Special screwdriver
(included)
Fasten the front panel to the
back box with the special
screws.
Transparent name plate (included in IX-DVF-L only)
The back box must be installed at a depth of 5
mm (3/16
'') or more from the wall face.
Min.
5 mm (3/16
'')
Wall
Back box
* For IX-DVF and IX-SSA: 120 mm (4-3/4'')
** For IX-DVF and IX-SSA: 235 mm (9-1/4'')
Open the terminal cover, and join the option
connectors (included) to the low-voltage lines, and
insert the option connectors and Cat-5e/6 cable to
the unit.
(1) Slide the terminal cover down.
(2) Open up the terminal cover.
(3) Insert the option connectors and
Cat-5e/6 cable to the unit, and
replace the terminal cover.
Be sure to close the
terminal cover when done.
If left open, condensation
or water may enter,
preventing heat dissipation
and causing damage.
Option connectors
Cat-5e/6 cable
Clamp the ferrite cores to
Cat-5e/6 cables.
Open the
ferrite core.
Thread
Cat-5e/6 cable
through the
ferrite core.
Option connectors
Ferrite cores (included) ×2
Cat-5e/6 cable
Option connectors (included)
Low-voltage lines
25 mm (1")
2 mm (1/8
")

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
