- 11 -

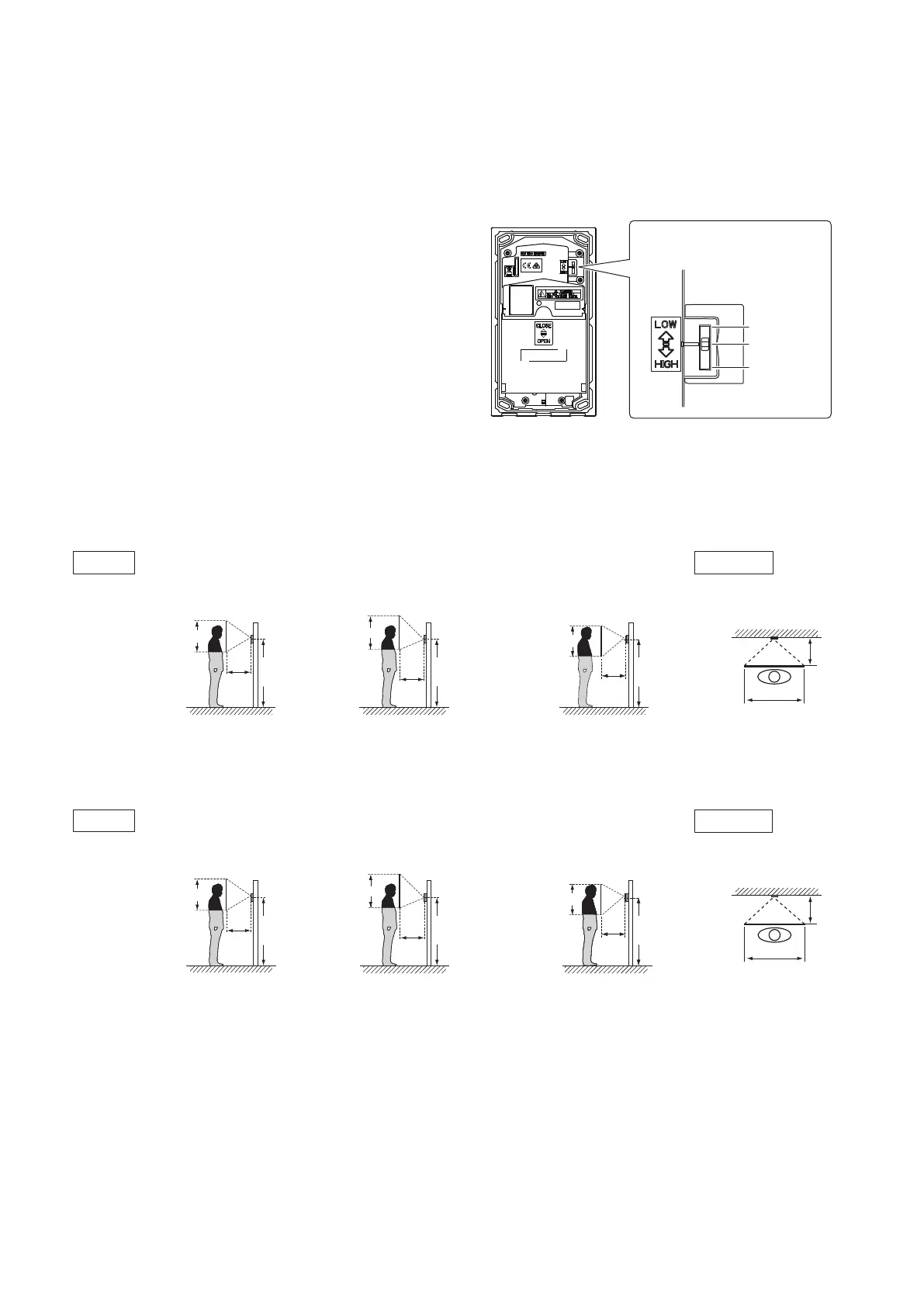

■ Camera View Area and Mounting Location (IX-DV, IX-DVF, IX-DVF-P,
IX-DVF-2RA, IX-DVF-RA, IX-DVF-L)
● Camera view adjustment
● Camera view range
The camera range as illustrated is only an approximate indication and may vary according to the environment.
IX-DV, IX-DVF
IX-DVF-P, IX-DVF-2RA, IX-DVF-RA, IX-DVF-L
When light enters the camera, the monitor screen may flicker brightly or the subject may become dark. Try to prevent
strong lighting from entering the camera directly.
Using the camera angle adjustment lever, the camera can be
tilted up or down (-8°, 0°, +13°). Adjust the camera to the
optimal position.
Back View
Camera angle adjustment lever
- 8°
0°
+ 13°
Vertical
Camera angle 0° Camera angle 13° Camera angle -8°
1,900 mm (6' 2'')
1,200 mm (3' 11'')
700 mm (2' 3'')
500 mm
(1' 7'')
Center
of device
Center
of device
Center
of device
The dimensions are approximate in this page.
1,500 mm
(4' 11'')
1,400 mm
(4' 7'')
750 mm (2' 5'')
2,150 mm (7')
500 mm
(1' 7'')
1,500 mm
(4' 11'')
1,800 mm (5' 10'')
1,100 mm (3' 7'')
700 mm (2' 3'')
500 mm
(1' 7'')
1,500 mm
(4' 11'')
Horizontal
(When the object position is lowered due to a
stepped floor, etc.)
1,150 mm (3' 9'')
500 mm
(1' 7'')
Vertical
Camera angle 0° Camera angle 13° Camera angle -8°
1,950 mm (6' 4'')
1,250 mm (4' 1'')
700 mm (2' 3'')
500 mm
(1' 7'')
The dimensions are approximate in this page.
1,500 mm
(4' 11'')
1,400 mm
(4' 7'')
750 mm (2' 5'')
2,150 mm (7')
500 mm
(1' 7'')
1,500 mm
(4' 11'')
1,800 mm (5' 10'')
1,100 mm (3' 7'')
700 mm (2' 3'')
500 mm
(1' 7'')
1,500 mm
(4' 11'')
Horizontal
(When the object position is lowered due to a
stepped floor, etc.)
1,150 mm (3' 9'')
500 mm
(1' 7'')
Center
of device
Center
of device
Center
of device
To Next Page
