Aiphone IX SERIES Owners & Installation Manual

- 7 -
IX-SSA-2RA
IX-SSA-RA
IX-DVF-L
Call Indicator
(Green)
Status indicator
(Orange/Blue)
Communication
Indicator (Orange)
Door release
Indicator (Green)
Speaker
Microphone
Camera
LED for night
illumination
Call button
Camera angle
adjustment lever
MAC address
Terminal cover
Hearing aid
unit
Reset button
microSD
™
card
eject button
Connectors
microSD
card slot
T-mode
hearing aid
indication
Name plate
(with backlight)
Call Indicator
(Green)
Status indicator
(Orange/Blue)
Communication
Indicator (Orange)
Door release
Indicator (Green)
Speaker
Microphone
Call button
MAC address
Terminal cover
Reset button
microSD
™
card
eject button
Connectors
microSD
card slot

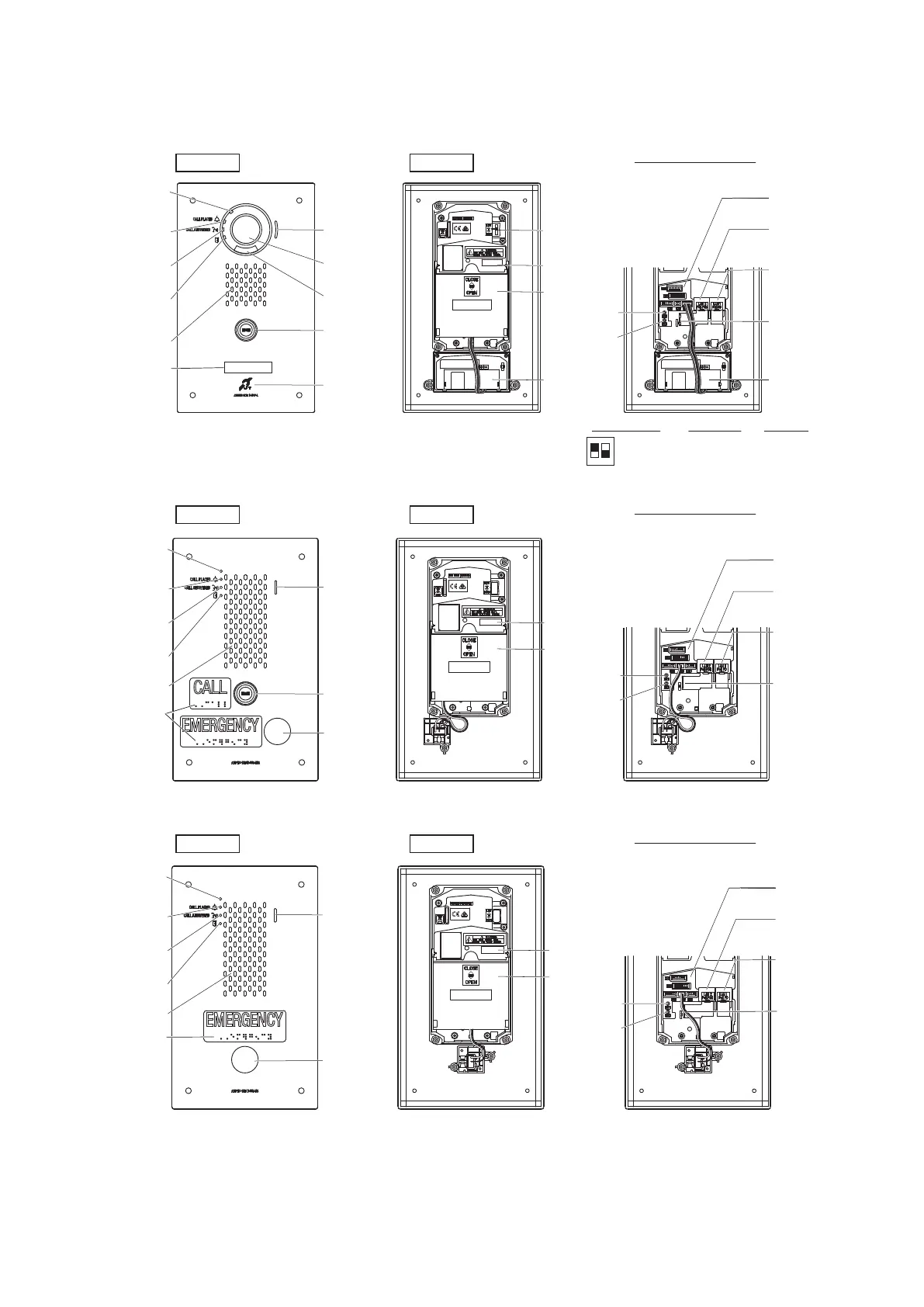

Frontview Backview
Under the Terminal cover
Frontview Backview
Under the Terminal cover
Frontview Backview
Under the Terminal cover
Braille
Emergency
call button
Call Indicator
(Green)
Status indicator
(Orange/Blue)
Communication
Indicator (Orange)
Door release
Indicator (Green)
Speaker
Microphone
MAC address
Terminal cover
Reset button
microSD
™
card
eject button
Connectors
microSD
card slot
Braille
Emergency
call button
Setting switch*
ON
1 2
Switch setting
Output gain
1=OFF, 2=OFF
1=OFF, 2=ON
1=ON, 2=OFF
0 dB
-6 dB
-12 dB (Default setting)
1=ON, 2=ON
-14 dB
1=ON, 2=OFF
* Factory presetting
LAN PoE PSE
Port (Out)
LAN PoE PD
Port (In)
LAN PoE PSE
Port (Out)
LAN PoE PD
Port (In)
LAN PoE PSE
Port (Out)
LAN PoE PD
Port (In)

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
