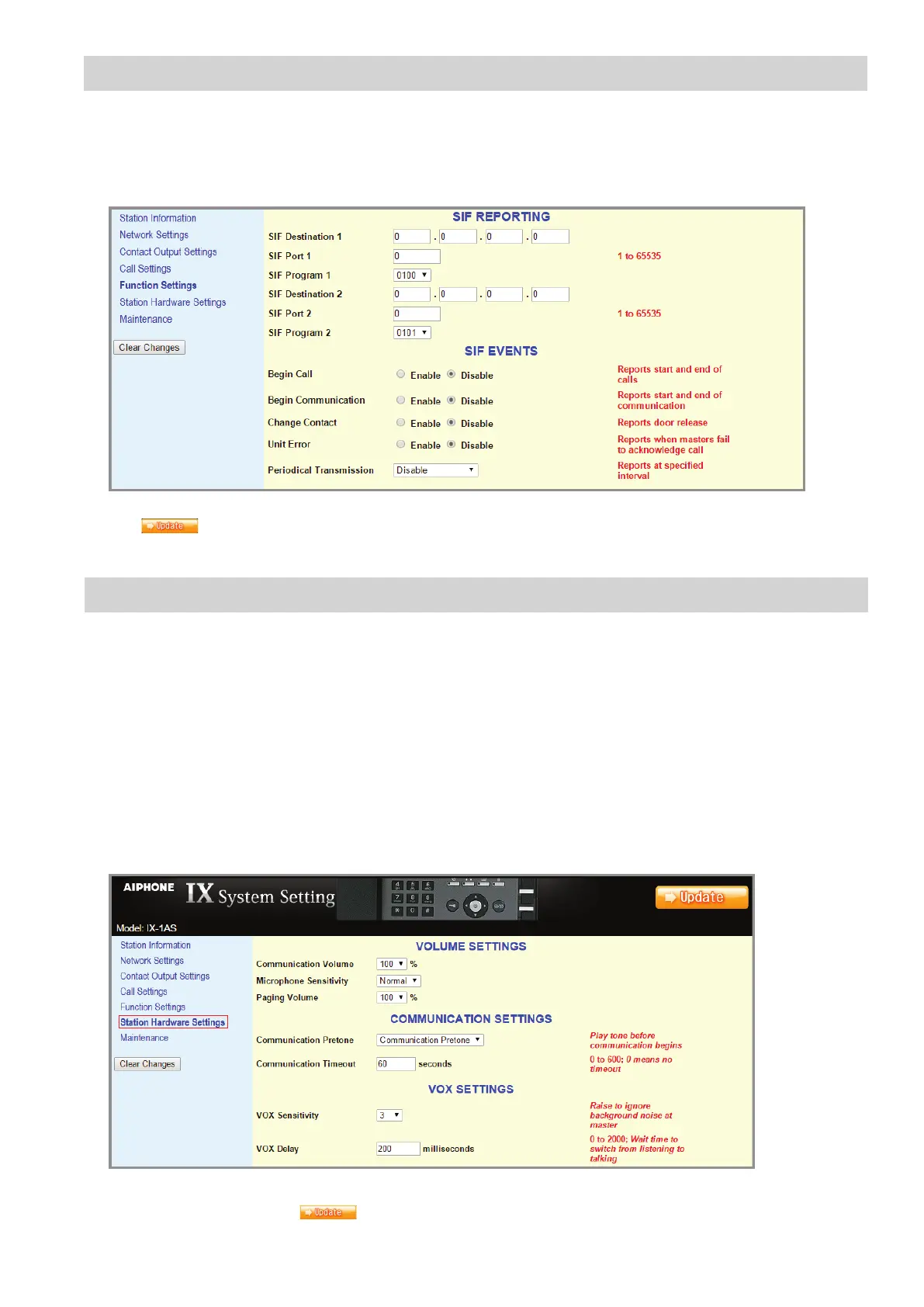

Step 6: Function Settings (continued)
SIF Reporting and SIF Events can be enabled from the same Function Settings screen. This is used when integrating with
access control platforms (i.e. RY-IP44). Enter the IP address (of 3rd party device), Port (of 3rd party device), and Program number
for each destination under SIF Reporting. Under SIF Events, use the appropriate radio buttons to enable events to be sent to the
destination addresses. When enabling Periodical Transmission, select the transmission interval from the drop down menu.
Click the button to update the Function Settings changes and restart the adaptor.
Step 7: Station Hardware Settings (optional)
Select Station Hardware Settings from the menu on the left. From this screen, the Volume Settings, Communication Settings,
and VOX Settings can be adjusted. In most environments, the default settings will work, but should the environment warrant a
change, make it here.
The Communication and Paging Volumes are set to the max level. Should they need to be lowered, use the appropriate drop
down to select the desired volume level.
Adjust the Microphone Sensitivity to lower or increase the sub station's sensitivity when speaking to the master station.
Select which tone will be heard upon receiving a call from a master station from the Call Answer Tone drop down.
Select the Communication Timeout for this station (0-600 seconds, 0 = no timeout)
Change the VOX Sensitivity to adjust for background noise at the master station.
Change the VOX Delay to adjust how long it takes the unit to switch to talk from listen mode.
If any changes are made, click the
button to update the Station Hardware Settings changes and restart the adaptor.
