Air Techniques, Inc. Page 10
AS10, AS12, AS21, AS22, AS30,
AS40, AS50, AS70, & AS100
INSTALLATION INFORMATION
AS100 ASSEMBLED at the SITE
Installing Left and Right Head Assemblies
All AIRSTAR models, except the AS100, are shipped assembled and can be installed upon
delivery by following the installation guidelines for plumbing and electrical connections provided
by pages 12 & 13. The AS100 is shipped as separate assemblies that must be assembled
during installing the system at the site
Place the tank assembly in the installation space; then perform the following procedure to
install the left and right head assemblies onto the AS100 tank assembly.
 Left head installation.
 Move air hose A and B to make sure they are not damaged during installation.
 Orient the left head with its electrical box on the right side.
 Align the 4 screw holes of the mounting plate with the 4 left shock mounts.
 Install the head assembly onto the 4 left shock mounts and secure with 4 nuts
provided with the head assembly accessory kit.
 Right head installation.
 Move air hose A and B to make sure they are not damaged during installation.
 Orient the right head with its electrical box on the left side.
 Align the 4 screw holes of the mounting plate with the 4 right shock mounts.
 Install the head assembly onto the 4 right shock mounts and secure with 4 nuts
provided with the head assembly accessory kit.
Each assembly (tank and
heads) weighs over 100 pounds
and requires two people to lift.

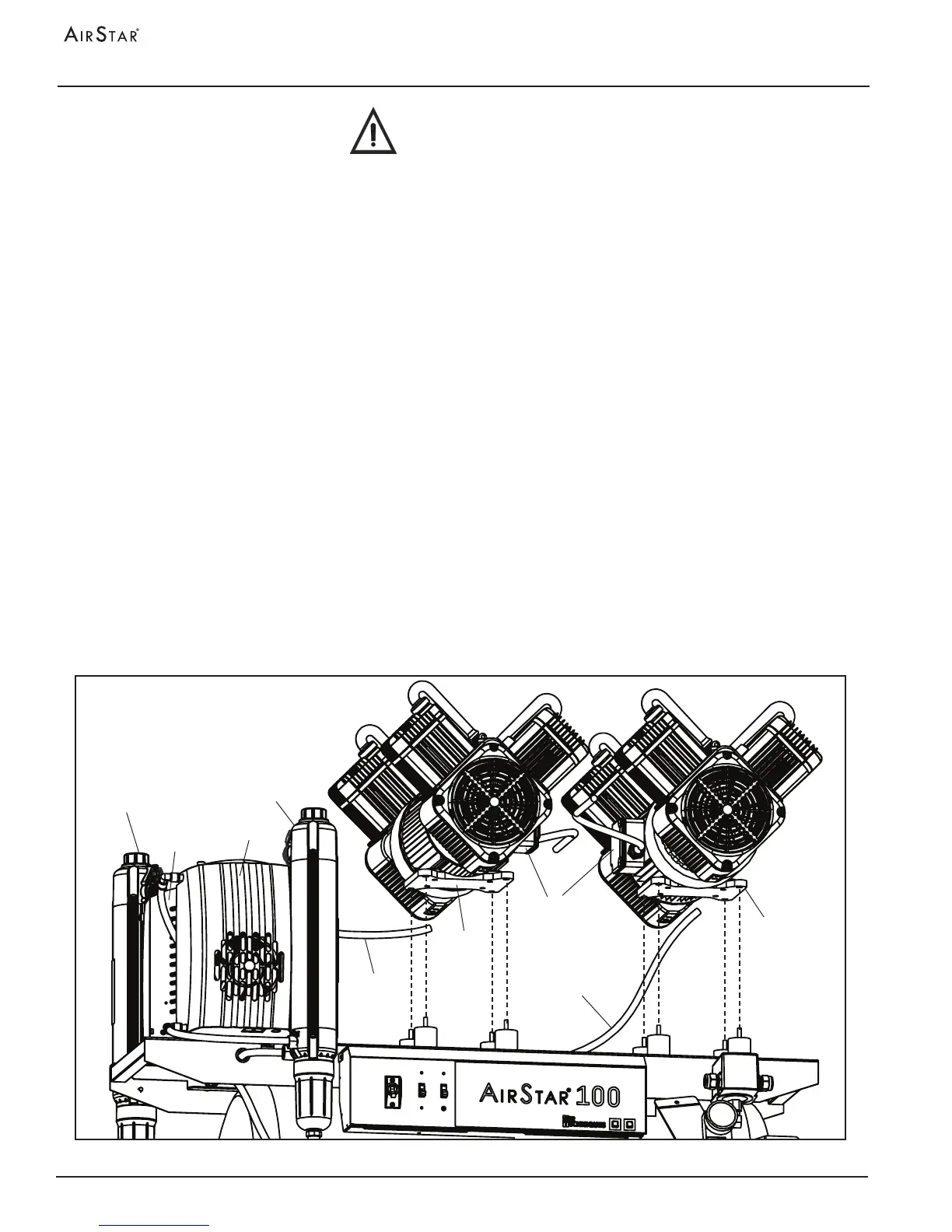

Figure 3. Left and Right Head Assembly Installation
Facing Electrical
Connection
Boxes
Mounting
Plate
Mounting
Plate
Left Head
Assembly
Right Head
Assembly
Left
Shock
Mounts
Air
Hose A
Air
Hose B
Right
Shock
Mounts
Front
Membrane
Dryer
Front
Cooler
Rear
Membrane
Dryer
Rear
Cooler
