Connecting Power to the Scale
You can connect the trailer scale to the trailer’s power either through
the ABS brake harness, through the junction box, or directly through the
lighting harness. All methods are equally e󰀨ective regardless of your
trailer setup; choose the method that is most convenient.
Note: If using lighting harness for power, the lights need to be on in order
for the trailer scale to have power.

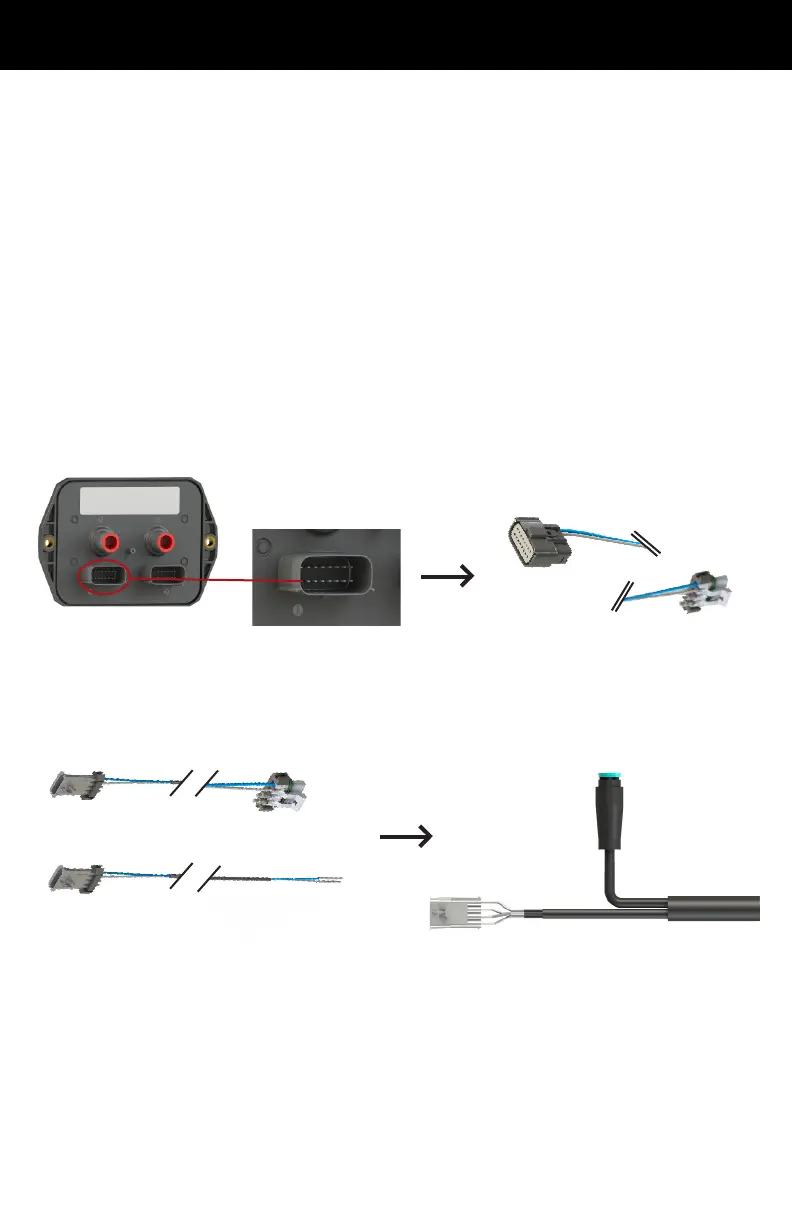

Power Cable Installation Guide
1. Scale Display
E
C
D
Blunt Cut
2. Interface Cable
4. ABS-T Breakout
3. Power Cable
Connection order
1. Plug interface cable (A) into Scale Display Port 1
2. Plug interface cable (B) to Power Cable (C)
3. Plug Power Cable (D) into ABS T-Breakout (E) or wire Blunt cut end
to junction box or lighting harness
Port 1
B
A
or
