NOTE: THIS FAN MUST BE INSTALLED BY A LICENSED AND QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH LOCAL AUTHORITY REGULATIONS
5

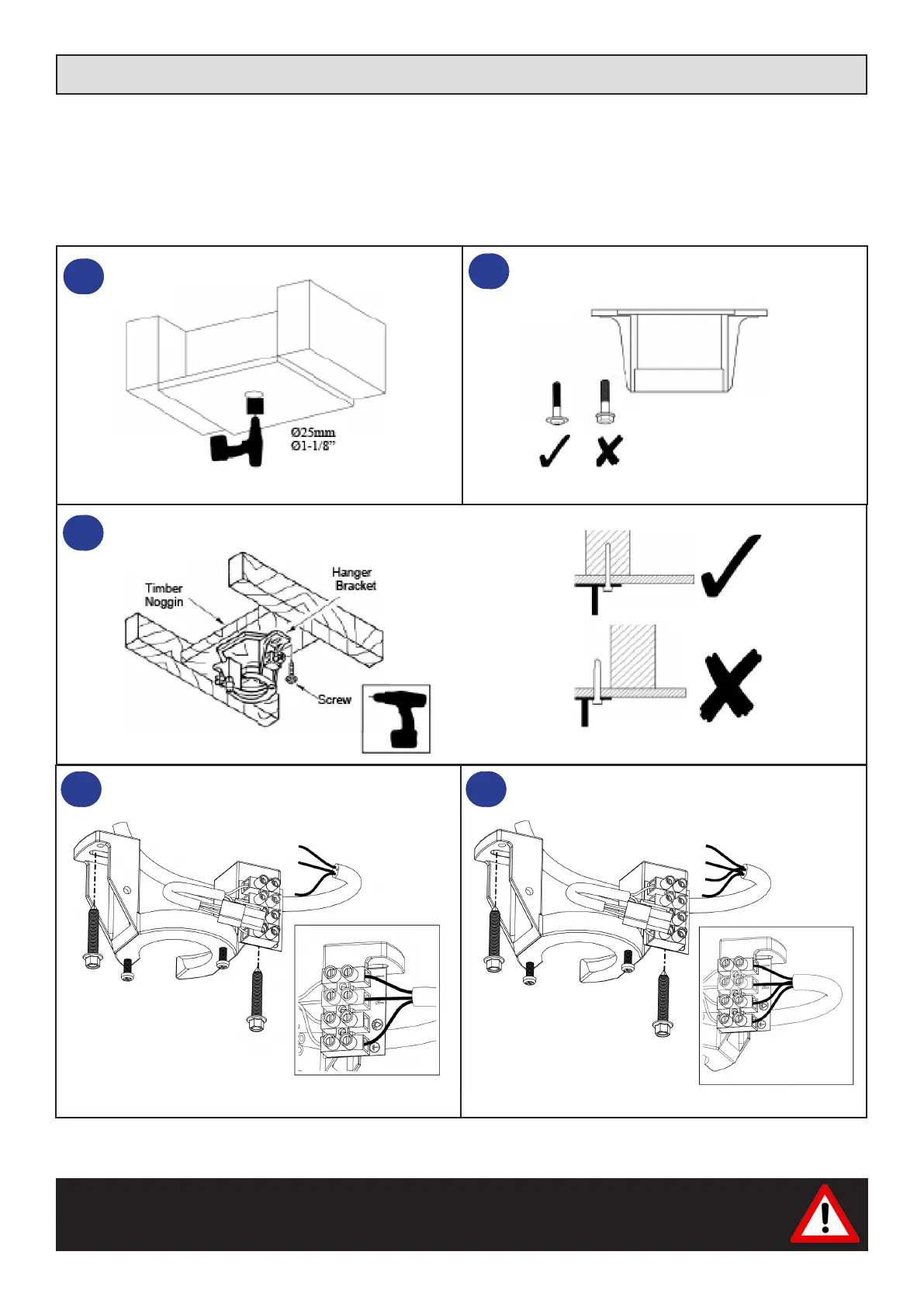

INSTALLING HANGER BRACKET - ENSURE CAN TAKE 25KG LOAD
1
2
3
4a 4b
In accordance with Australian Standards, the fan blades must be at least 2.1 metres above oor level and the blades
require at least 300mm clearance to the nearest object. Ensure only the supplied Hanger bracket screws are used
Ensure ceiling joists are sound and of adequate size and strength to support a 25Kg (55lbs) load. If a timber frame is
to be added it must be securely nailed or screwed between two beams. Proper care must be taken when mounting to
concrete ceilings.
WITHOUT LIGHT - Three Wire
WITH LIGHT - Four Wire
See back page for wiring diagram See back page for wiring diagram
