Installation
Positioning and Clearance
• Unit must be positioned on an even base to ensure correct operation.
• Observe airow and maintenance clearances.
• Where multiple units are installed, due care should be taken to avoid the discharge air from each unit adversely
affecting other units in the vicinity.
• When mounting the units adjacent to a wall or other vertical surface, the condenser should be positioned with the
coil side facing the wall.
• Check all the services are present and accessible.
Mounting
Fix the condenser down using the appropriate bolt holes in the unit xing legs .

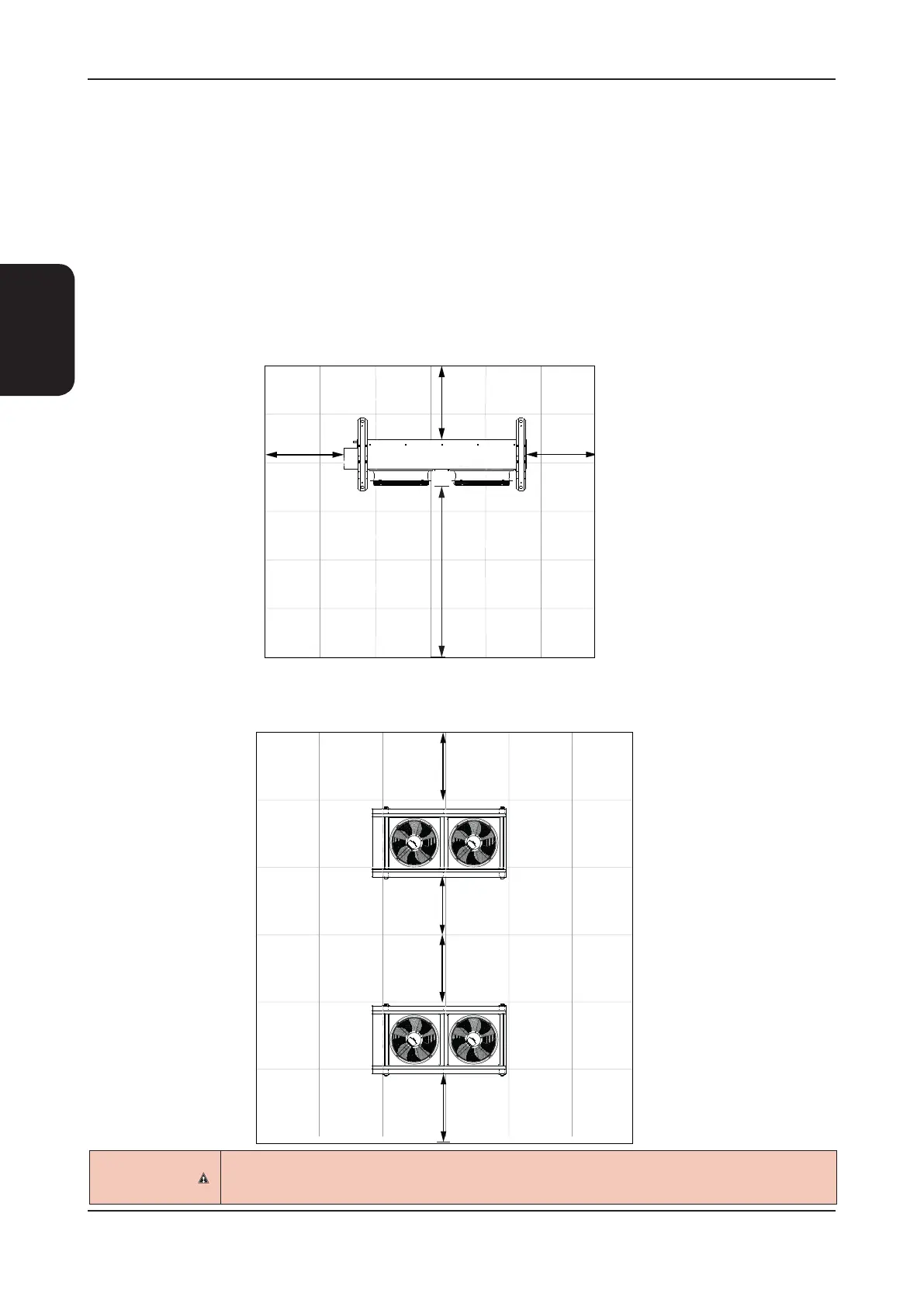

Horizontal Airow Conguration
Clearance is required as below. Considerations must be taken into account ensuring air is not recirculated. Recirculated
air could cause the unit to malfunction.
• Avoid where possible siting the unit where wind and air recirculation may interfere with the fan operation.
3000
500
500
500
500
500
500
500
Vertical Airow Conguration
Clearance is required as below. Consideration must be given to ensure air is not recirculated by overhead obstructions
such as pipework or ducting. Recirculating air could cause the unit to malfunction.
Dimensions in mm
Dimensions in mm
If the unit is installed in particularly windy locations, the provision of wind breaks may be required.
For such applications a vertical discharge unit is recommended or where horizontal airow could
be obstructed.
IMPORTANT
