Dry Coolers Technical Manual 9308503 V2_06_2020
Installation
Unit Lifting
General
• Employ lifting specialists
• Local codes and regulations relating to the lifting of this type of equipment should be observed
• Each chain/sling must be capable of lifting the whole unit
• Lift the unit slowly and evenly
IMPORTANT
Only use lifting points provided. Do not lift from the pipework connections as this may damage the unit.
• Do not use 1 chain between 2 lifting points to avoid load shift.
• Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies.
• If the unit is dropped it should immediately be checked for damage and reported to Airedale.
• Airedale will accept no responsibility for mishandling during the positioning of the equipment.

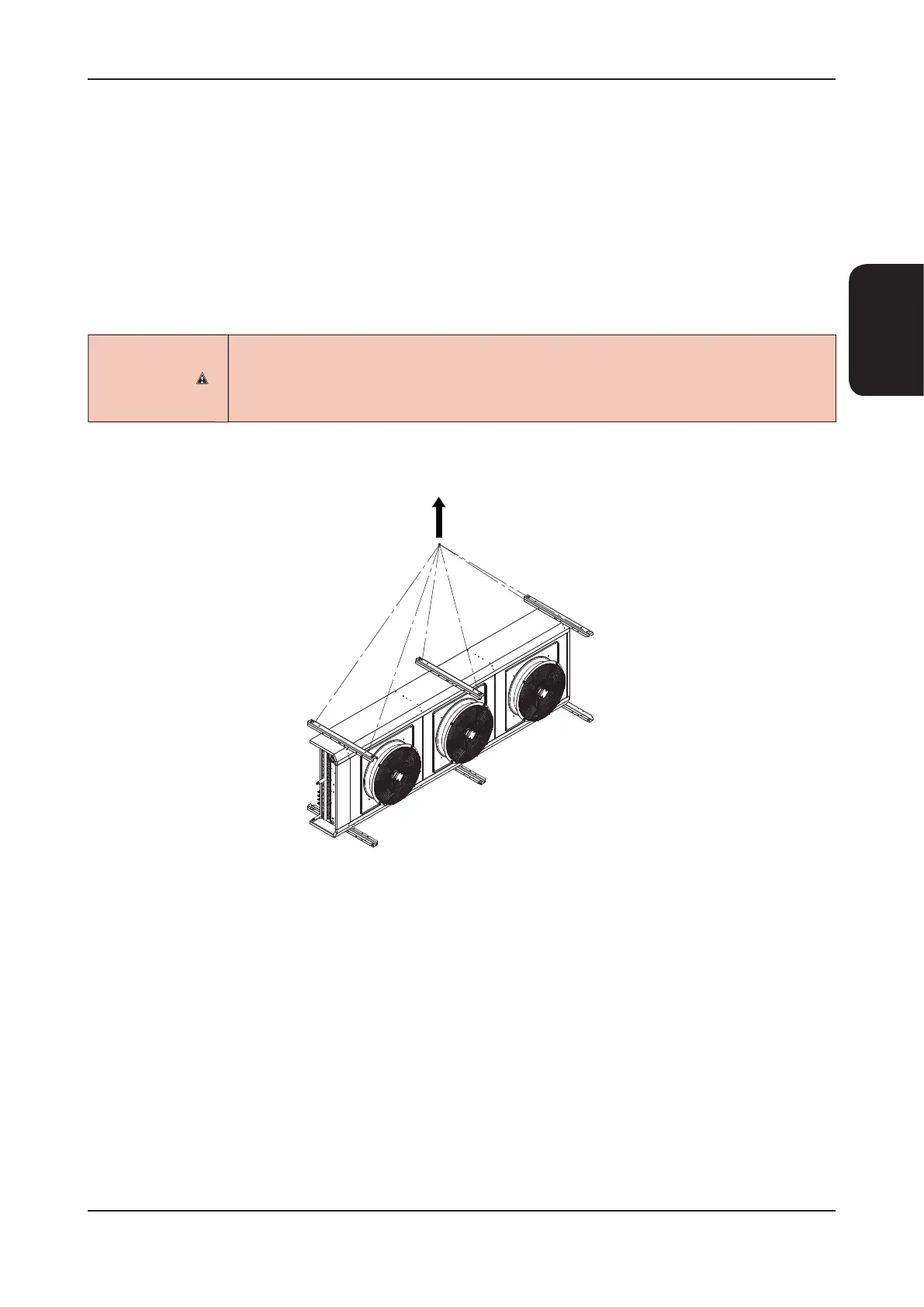

Horizontal Air Discharge
Use lifting eyes attached to individual slings/chains (supplied by others) and attach 2 to every top leg using the holes
provided as illustrated. Maximum of 6 slings/chains.
Check the unit is as ordered, discrepancies or transit damage should be reported to
Airedale immediately.
Care should be taken to ensure the unit does not sustain damage before it is lifted into
nal position.
CAUTION
LIFT
LIFT
