18 Dry Coolers Technical Manual 9308503 V2_06_2020
Installation

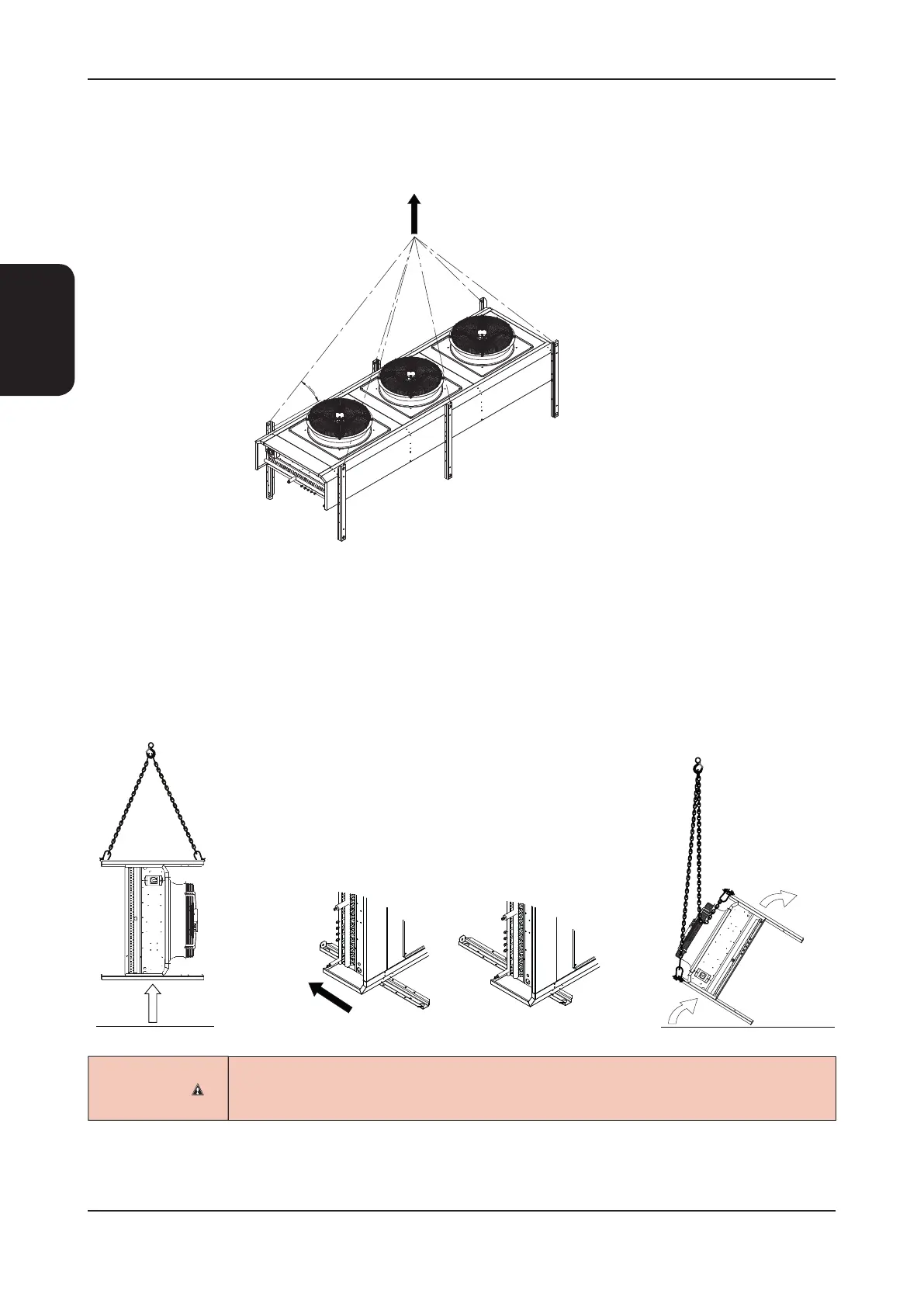

Vertical Air Discharge
Use lifting eyes attached to individual slings/chains (supplied by others) and attach 1 to the top of every leg using the
holes provided as illustrated. Maximum of 6 slings/chains.
Re-Orientation To Vertical Discharge - CS Units Only
1. Remove the xings securing the unit to the pallet.
2. In line with horizontal discharge lifting instructions, lift the unit sufciently to gain access to the lower leg xings.
3. Reposition and secure the lower 2 legs to the corner of the unit using the xings and hole positions provided to
both faces. Note, model sizes CR80 & CR105 have an additional mid support leg, this should also be adjusted and
secured.
4. Lower and rest the unit down to oor and reposition and secure the upper legs as described in Step 3.
5. In line with vertical discharge lifting instructions lift the unit slowly into vertical orientation.
It is strictly prohibited to use the connections, which are delicate parts of the Coil, as
anchoring points when lifting or handling the unit. This would cause serious damage to
the Coil and serious risks for the safety of persons and goods.
