AIREDALE DR Series - Ambient Temperature Sensor Location

Dry Cooler
Condensers
8 Dry Coolers Technical Manual 9308503 V2_06_2020
Installation
Ambient Temperature Sensor Location
Horizontal Airow
In the case of a unit with a horizontal airow specied, the location shown in gure 1 will be the nal position of the
ambient temperature sensor, tted in house before shipment.

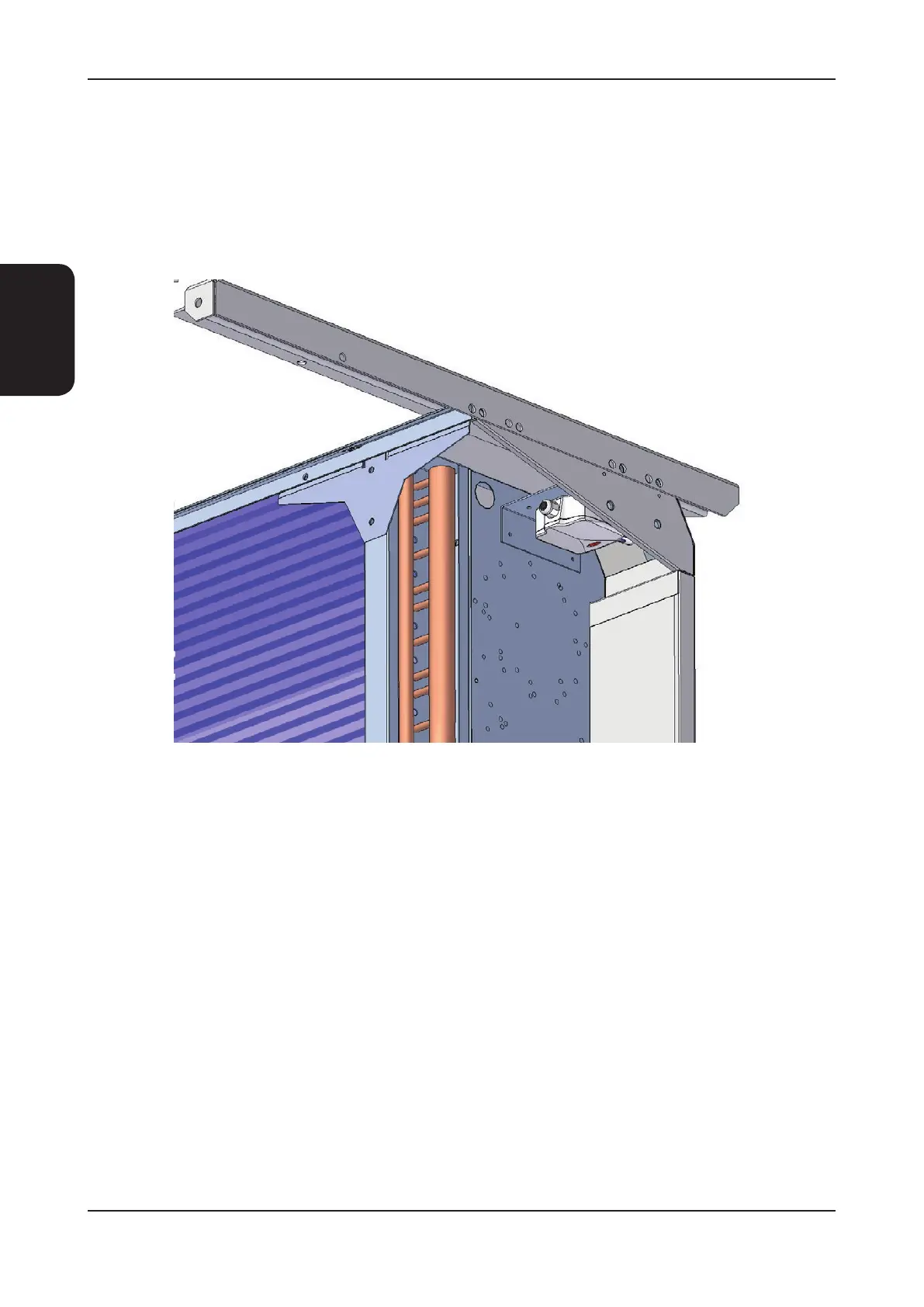

Figure 1: Ambient Sensor Location
