AIRMAC T20D - Dual Pump Compressor Components

Instruction Manual
Airmac Air Compressors
2019-06-07
© Glenco Air & Power Pty Ltd
5
Item
Description
Item
Description
1
Compressor Pump
11
Pallet Foot Mount
2
Air Filter
12
Vibration Isolator
3
Crankcase Breather
13
Non-Return Valve
4
Oil Fill Cap
14
Unloading Line
5
Oil Drain Plug
15
Safety Valve
6
Oil Level Sight Glass
16
Drain Valve
7
Electric Motor
17
Discharge Outlet Valve
8
Overload Reset Button
18
Air Receiver Pressure Gauge
9
Air Receiver Tank
19
Pressure Switch
10
V-Belt Drive Guard

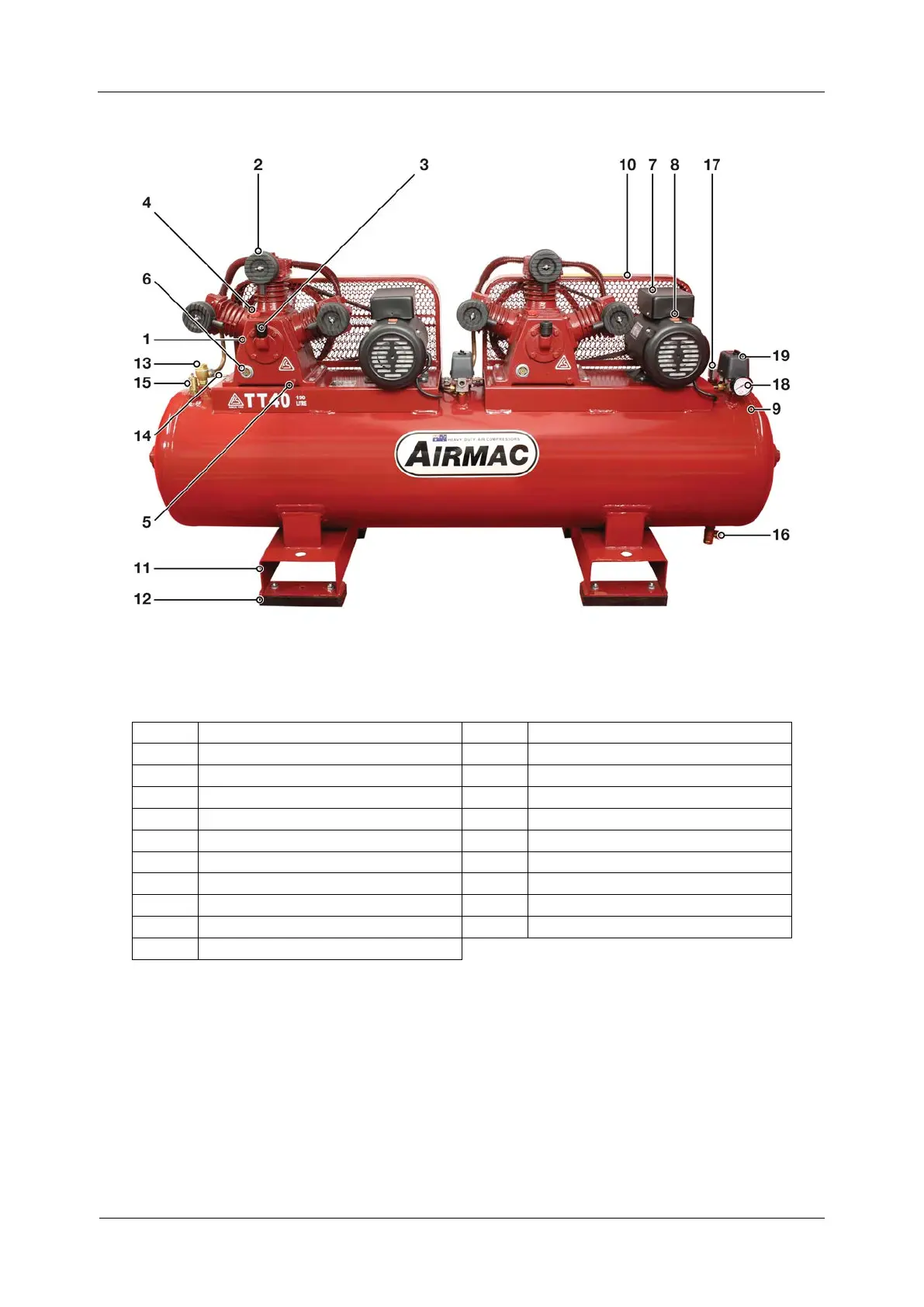

Figure 2-2 240 Volt Dual Pump Air Compressor
