AIRMAC T20D - 415 V Compressor Components (≤ 7.5 kW)

Instruction Manual
Airmac Air Compressors
2019-06-07
© Glenco Air & Power Pty Ltd
6
Item
Description
Item
Description
1
Compressor Pump
11
V-Belt Drive Guard
2
Air Filter
12
Pallet Foot Mount
3
Crankcase Breather
13
Non-Return Valve
4
Oil Fill Cap
14
Unloading Line
5
Oil Drain Plug
15
Safety Valve (Behind Item 18)
6
Oil Level Sight Glass
16
Drain Valve
7
Electric Motor
17
Discharge Outlet Valve
8
Motor Position Adjustor
18
Air Receiver Pressure Gauge
9
Air Receiver Tank
19
Pressure Switch
10
Air Receiver Tank Nameplate

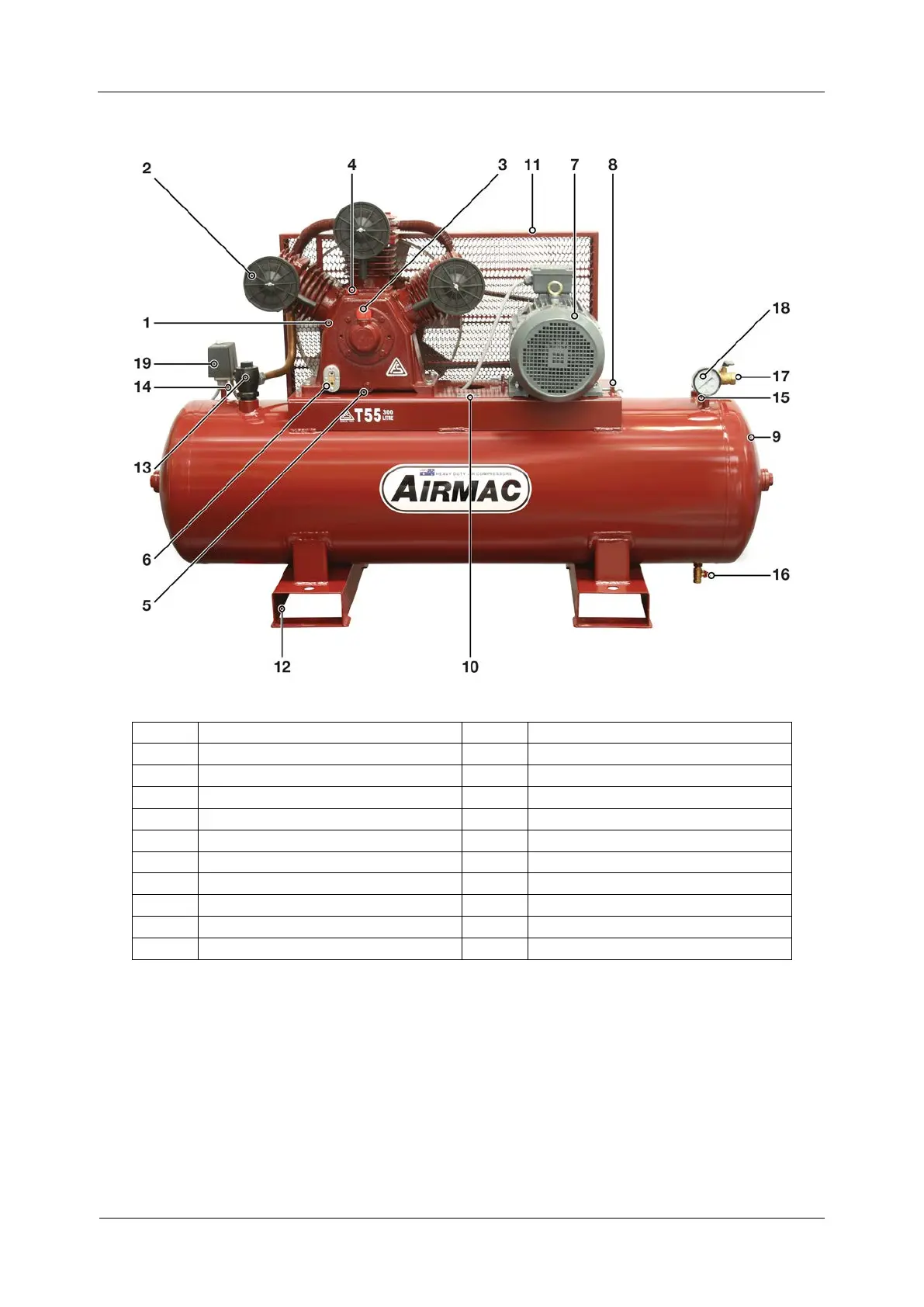

Figure 2-3 415 Volt Air Compressor ≤ 7.5 kW (10 hp)
ESSOR ≤ 7.5 KW (10 HP)
