AIRMAC T20D - 415 V Compressor Components (11 kW)

Instruction Manual
Airmac Air Compressors
2019-06-07
© Glenco Air & Power Pty Ltd
7
Item
Description
Item
Description
1
Compressor Pump
13
Non-Return Valve Unloading Line
2
Air Filter
14
Head Unloading Line
3
Crankcase Breather
15
Safety Valve (Behind Item 18)
4
Oil Fill Cap
16
Drain Valve
5
Oil Drain Plug
17
Discharge Outlet Valve
6
Oil Level Sight Glass
18
Air Receiver Pressure Gauge
7
Electric Motor
19
Pressure Switch
8
Motor Position Adjustor
20
Star-Delta Starter
9
Air Receiver Tank
21
Solenoid Valve
10
V-Belt Drive Guard
22
On / Off Switch
11
Pallet Foot Mount
23
Emergency Stop Button
12
Non-Return Valve

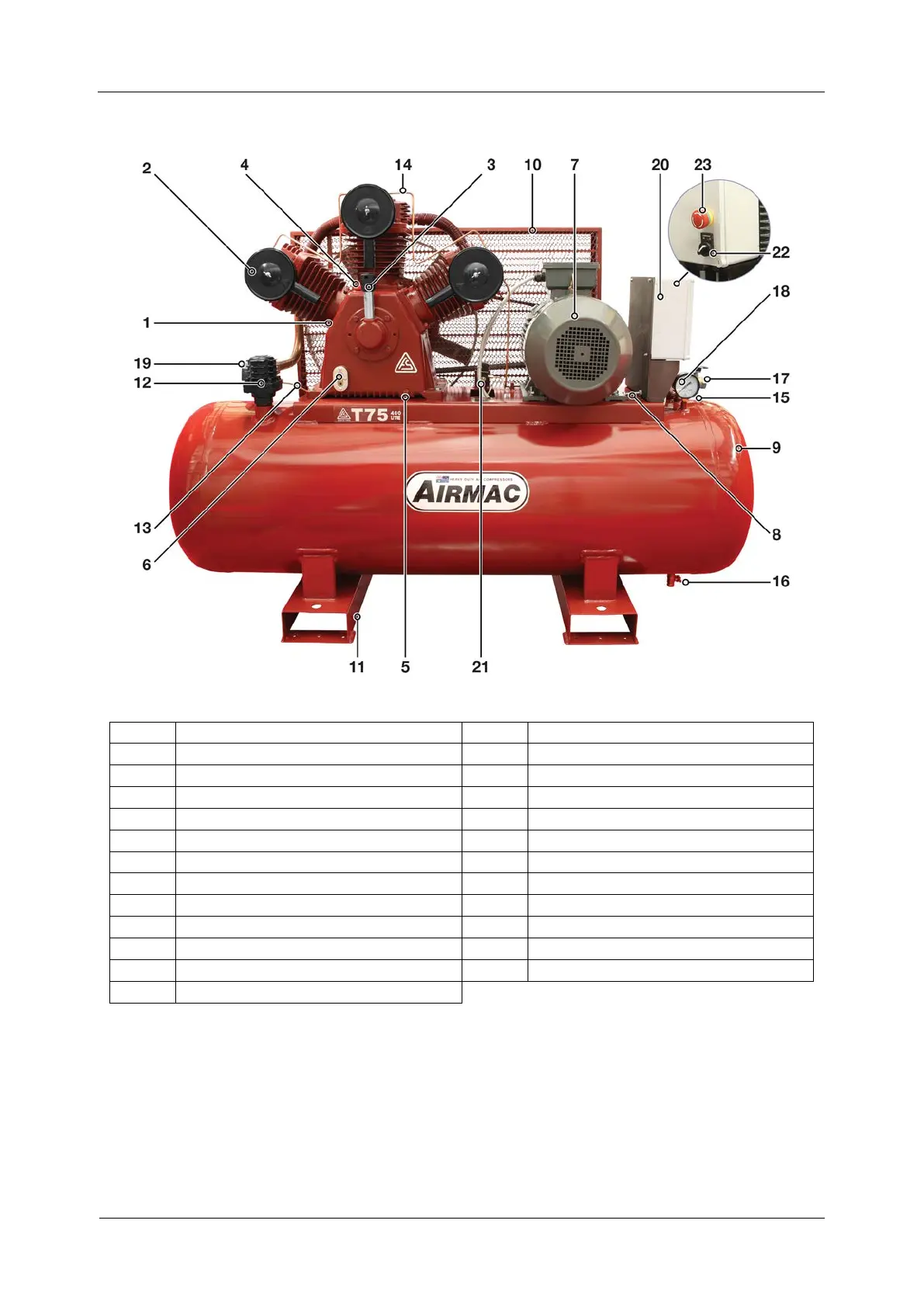

Figure 2-4 415 Volt Air Compressor 11 kW (15 hp)
