2. Part Names
2-1

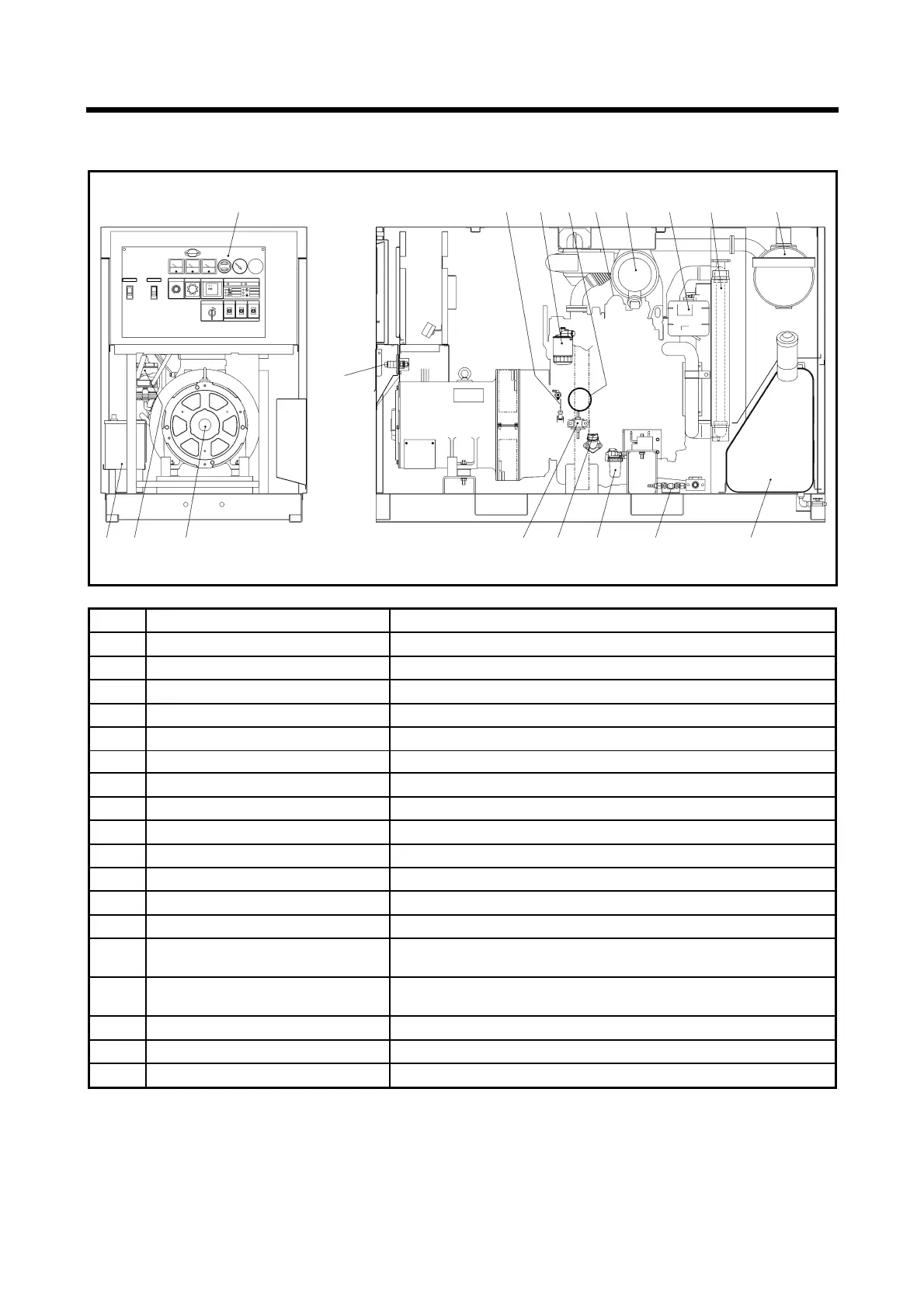

2.1 Internal Components
No. Description Function
1 Control panel Panel fitted with various meters and controllers.
2 Engine oil level gauge Scale for measuring engine oil level.
3 Fuel filter Filtering device for filtering dust mixed in fuel oil.
4 Engine oil filter For filtering engine oil.
5 Engine For driving the generator main unit.
6 Air filter Filtering device for filtering dust floating in intake air.
7 Reserve tank For feeding cooling water.
8 Radiator For cooling engine.
9 Exhaust muffler Equipment which muffles an engine exhaust sound.
10 Fuel tank Fuel oil container.
11 Fuel pipe change-over system For fuel supply from outside set fuel tank.
12 Sedimentor For separating water mixed in fuel oil.
13 Engine oil filler port For supplying and replenishing engine oil to engine.
14
Fuel air-bleeding
electromagnetic pump
For automatically bleeding air from fuel pipes.
15 Output terminals
Equipped with three phase and single phase terminal and
receptacle for single phase.
16 Generator main unit For generating AC power to be supplied.
17 Breather filter element For removing contaminated oil from blow by gas.
18 Battery For electrically starting engine.
A130505
1
2
3 4
5
6
7
8 9
18
17 16 14 13
12 11 10
15
