User & Installation manual
VHF- Communication Transceiver
Doc.-Nr:
DE-3000-800100e
KRT2
Revision 12.2
Jan. 2016
42 / 61
5.9 Wiring
5.9.1 Wire Gauges
Supply lines (Power, GND): AWG18 (0,83 mm²)
Control lines: AWG22 (0,38 mm²)
All wires must be aviation certified.

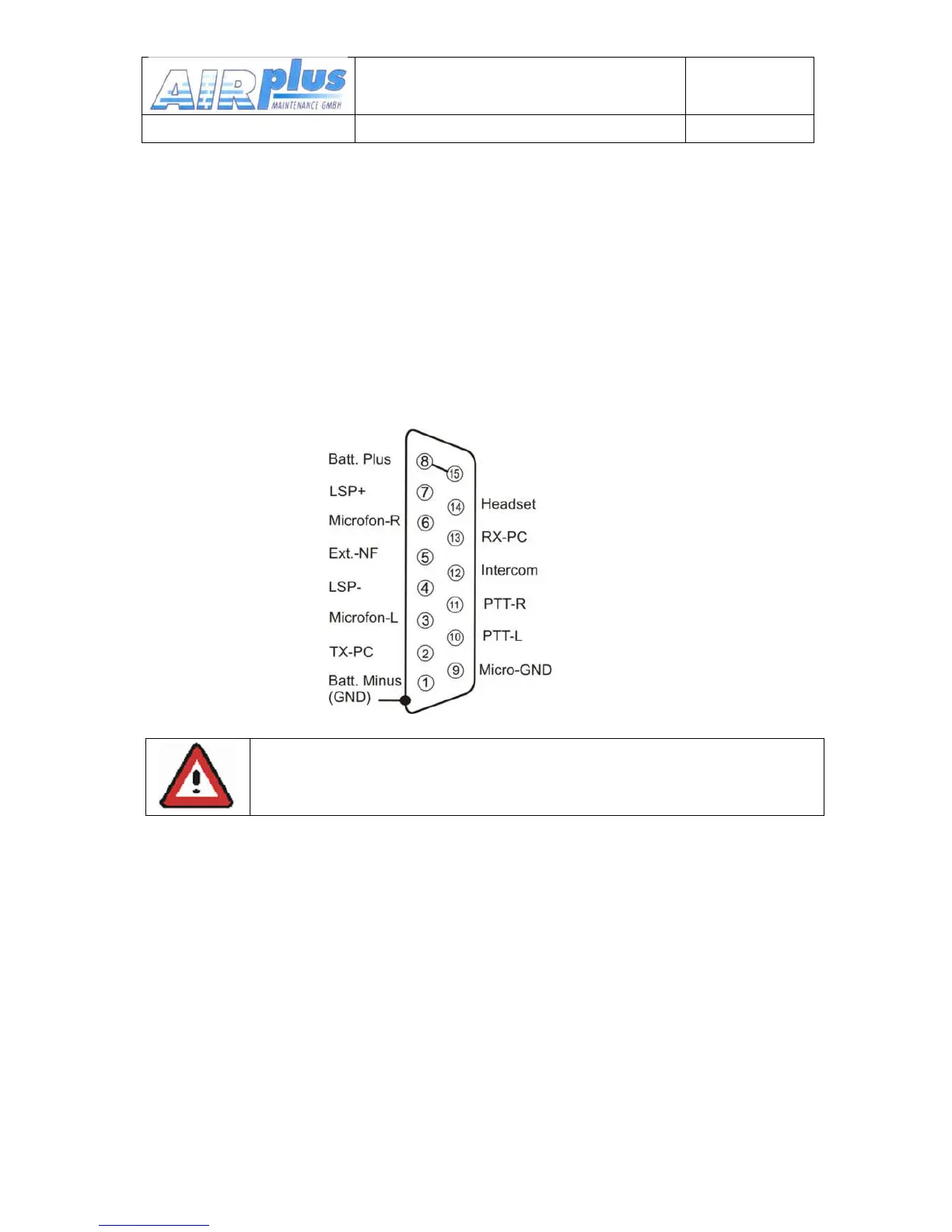

5.9.2 Connector Pin-Configuration
If manual intercom is not used, pin 12 should be grounded.
5.9.3 Wiring Diagram
5.9.3.1 Two place motor aircraft connection
