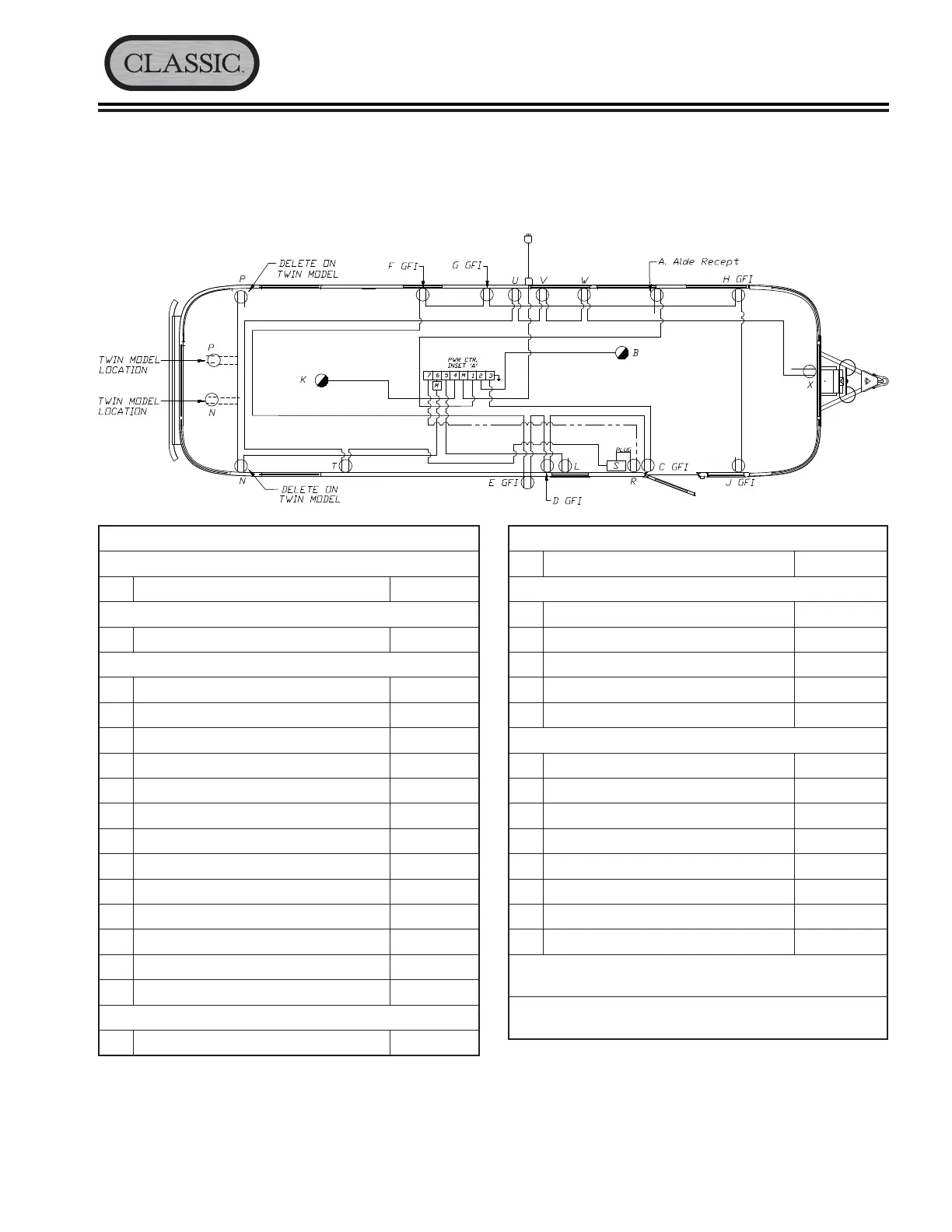

Airstream CLASSIC 2021 - 120-Volt;50-Amp Diagrams

Maintenance
2021 Classic 8-17
30’ Classic
Main Circuit, 50 Amp
Circuit 1, 20 Amp
A Alde System (Receptacle) 16.0 Amps
Circuit 2, 20 Amp
B Front Air Conditioner 16.0 Amps
Circuit 3, 15 Amp (GFCI)
C Galley Endpanel Receptacle 1.5 Amps
C Galley Endpanel Receptacle - CSA 1.0 Amps
D Galley Receptacle 1.5 Amps
D Galley Receptacle - CSA 1.0 Amps
E Outside Receptacle 1.5 Amps
E Outside Receptacle - CSA 1.0 Amps
F Bath Receptacle 1.5 Amps
F Bath Receptacle - CSA 1.0 Amps
G Refrigerator Receptacle 2.7 Amps
H RS Living Area Receptacle 1.5 Amps
H RS Living Area Receptacle - CSA 1.0 Amps
J CS Living Area Receptacle 1.5 Amps
J CS Living Area Receptacle - CSA 1.0 Amps
Circuit 4, 20 Amp
K Rear Air Conditioner 16.0 Amps
Circuit 5, 15 Amp
L Microwave Receptacle 12.0 Amps
Circuit 6, 15 Amp
M Converter (Wired Direct) 8.0 Amps
N CS Nightstand Receptacle 1.5 Amps
N CS Nightstand Receptacle - CSA 1.0 Amps
P RS Nightstand Receptacle 1.5 Amps
P RS Nightstand Receptacle - CSA 1.0 Amps
Circuit 7, 15 Amp
R Inverter Receptacle 1.25 Amps
S Inverter 0.0 Amps
T Bedroom TV Receptacle .25 Amps
U Blu-Ray Player Receptacle .15 Amps
V Dinette TV Receptacle .25 Amps
W Dinette Receptacle 1.5 Amps
W Dinette Receptacle - CSA 1.0 Amps
X Power Lounge Receptacle 3.2 Amps
DC to AC 1000W Inverter Rated at 8.5 Amp
Inverting
15 Amp Fuse for Overcurrent. Transfer Switch rated
at 15 Amp. UL 458 Tested. ULC
120-Volt/50-Amp Diagrams
The following electrical diagrams are representative of the National Electric Code (NEC) and Canadian Standards
Association (CSA). All circuits are NEC with the exception of CSA circuits as specied in each respective table.
