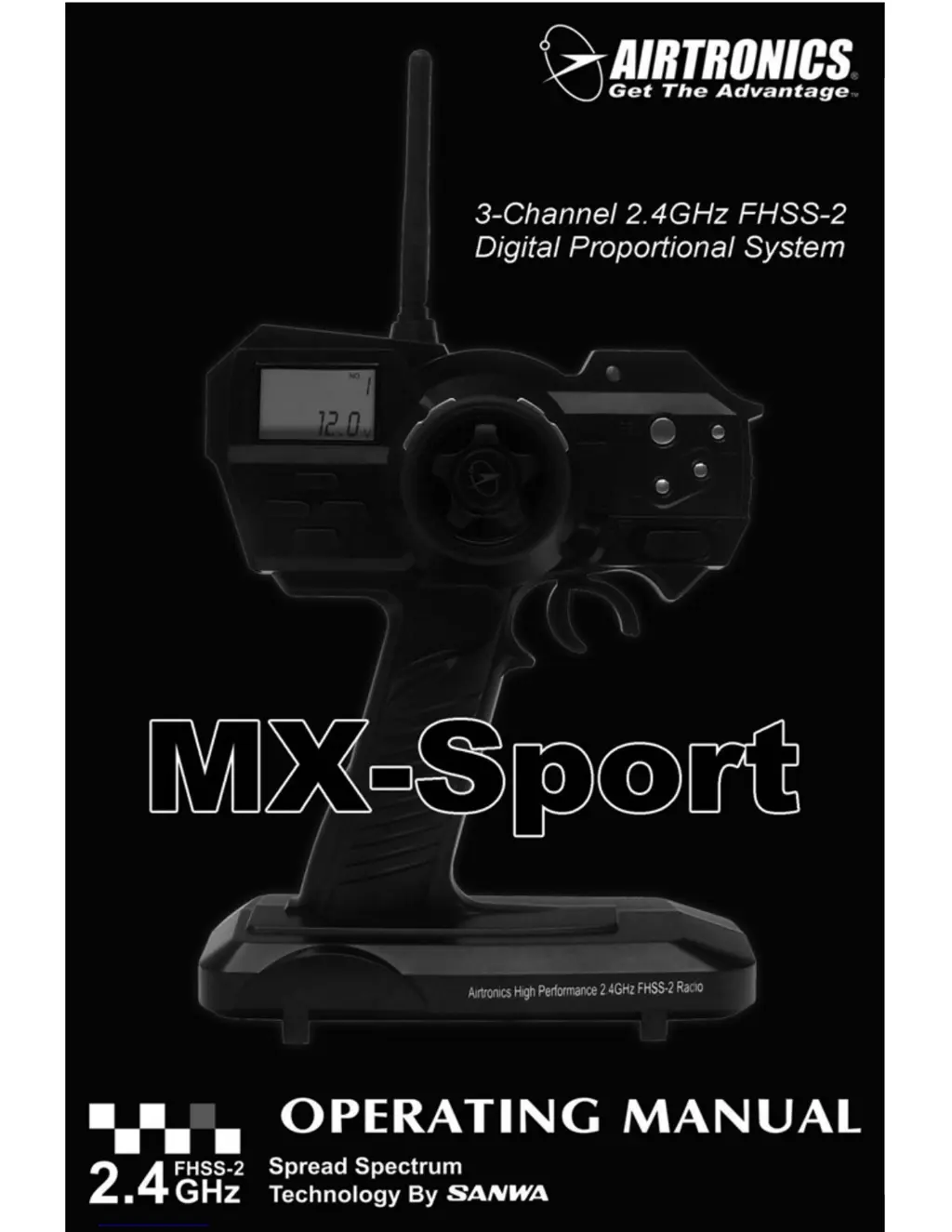

AIRTRONICS MX-Sport - User Manual

Other manuals for AIRTRONICS MX-Sport

Instruction Manual16 pages

Questions and Answers

K
Karen FrostAug 17, 2025
What to do if my AIRTRONICS MX-Sport transmitter will not bind to the receiver?
- K
  Karen AllenAug 17, 2025
  If your AIRTRONICS Remote Control transmitter isn't binding to the receiver, consider these potential causes: Ensure you quickly press the transmitter Bind Button after releasing the receiver Bind Button to avoid too much time elapsing. Confirm that you are using a compatible receiver, as the transmitter is only compatible with Airtronics 2.4GHz FHSS-2 surface receivers. If using an electronic speed control (ESC), disconnect it and use a standard receiver battery for the Binding procedure, then reconnect the ESC after binding.
J
Jeffrey RodriguezAug 19, 2025
Why is the AIRTRONICS MX-Sport Remote Control transmitting range inadequate?
- D
  Dr. Rachel PattersonAug 19, 2025
  An inadequate transmitting range in your AIRTRONICS Remote Control could stem from several factors. First, check both the transmitter and receiver battery voltage and replace or recharge if low. Ensure the receiver antenna is correctly mounted and not damaged; remount as recommended or replace if necessary. Lastly, adjust the transmitter antenna to maintain a vertical position during use.
K
krichardsonAug 22, 2025
How to fix an AIRTRONICS MX-Sport transmitter that does not turn ON?
- L
  Lee SullivanAug 22, 2025
  If your AIRTRONICS Remote Control transmitter isn't turning on, there are a few things to check: * Make sure the batteries are installed correctly, paying attention to the correct polarity when reinstalling them. * If you have been using an incorrect charger or reverse polarity, contact Airtronics Customer Service. * Also, check the transmitter battery voltage and replace or recharge the batteries if they are low.
A
annabakerAug 25, 2025
How to center AIRTRONICS MX-Sport Remote Control servo horns?
- R
  ryanmichelleAug 26, 2025
  If your AIRTRONICS Remote Control servo horns are not centered, it might be due to incorrect installation or trim settings. Try turning the servo horn 180º and reinstalling it. Alternatively, use the trim switch to center the servo horn.
T
Tracy HardyAug 27, 2025
Why is the AIRTRONICS Remote Control servo movement slow?
- V
  Victoria WongAug 27, 2025
  Slow servo movement in your AIRTRONICS Remote Control could be due to control linkages binding; adjust them for smoother operation. Another possible cause is low receiver battery voltage, so try recharging the receiver battery.
J
Jordan HillAug 30, 2025
Why does my AIRTRONICS MX-Sport Remote Control audible alarm beep continuously?
- C
  Chelsea DuncanAug 31, 2025
  A continuous audible alarm in your AIRTRONICS Remote Control usually indicates low transmitter battery voltage. Replace or recharge the transmitter batteries to resolve this issue.
P
Phillip Adams MDSep 2, 2025
What to do if AIRTRONICS MX-Sport servos move in the wrong direction?
- U
  ulaneSep 2, 2025
  If your AIRTRONICS Remote Control servos are moving in the wrong direction, the issue is likely an incorrect Servo Reversing setting. You can correct this by changing the Servo Reversing setting in the REV menu.
D
David HaneySep 5, 2025
What causes my AIRTRONICS MX-Sport Remote Control model to veer or the motor to turn ON unexpectedly?
- J
  Joseph SmithSep 5, 2025
  If your AIRTRONICS Remote Control model veers right or left, or the motor turns on unexpectedly, it's likely due to steering and/or throttle trim being out of adjustment. Correct this by adjusting the steering and/or throttle trim using the trim switches.
S
sheri52Sep 8, 2025
What to do if AIRTRONICS MX-Sport Remote Control linkages bind?
- C
  Connie WyattSep 8, 2025
  If the control linkages on your AIRTRONICS Remote Control are binding, it's likely due to too much servo travel. Reduce servo travel using the EPA menu or Dual Rate function.
E
Edward McdowellSep 10, 2025
Why does the AIRTRONICS MX-Sport LCD appear dark or hard to read?
- S
  Stephen GaySep 12, 2025
  If the LCD on your AIRTRONICS Remote Control appears dark or hard to read, it may be because the transmitter was left in direct sunlight for too long. Place the transmitter in the shade until the LCD clears up, and avoid leaving it in direct sunlight for extended periods.

Summary

Usage Precautions

General Safety

Provides essential safety guidelines for operating the radio control system.

FCC Compliance Statement

Details the equipment's compliance with FCC rules and potential interference issues.

RF Exposure Statement

Outlines guidelines for maintaining safe separation distances during transmitter use.

2.4 GHz Frequency Band Precautions

Warns about potential interference in the 2.4GHz band and advises pre-use checks.

Features and Specifications

System Features

Lists the key capabilities and functionalities of the MX-Sport radio control system.

System Specifications

Provides detailed technical data for both the transmitter and receiver.

Optional Items

Lists separately available accessories that can enhance the radio control system.

Customer Service

Offers guidance on how to get help for questions or problems with the system.

Features Familiarization

Transmitter and Receiver Features Diagrams

Illustrates and labels the various components of the transmitter and receiver.

Features Descriptions

Provides detailed explanations for each feature identified in the diagrams.

Servo Connectors

Explains the type and handling of servo connectors used with the receiver.

System Connections

Transmitter Battery Installation

Guides the user on how to properly install batteries in the transmitter.

Receiver Connections and Mounting

Details how to connect and mount the receiver and its accessories in a model.

Transmitter and Receiver Battery Options

Discusses options for using rechargeable batteries instead of alkaline ones.

Servo Recommendations

Suggests specific Airtronics servos for optimal performance with the system.

LCD and Programming Keys

Multi-Function LCD Overview

Explains the layout and information displayed on the transmitter's LCD screen.

Programming Key Functions

Describes the purpose and operation of each key used for programming the transmitter.

System Setup

Transmitter and Receiver Binding

Details the process of pairing the transmitter and receiver to prevent interference.

Throttle Fail Safe Programming

Explains how to set the throttle servo position for safety in case of signal loss.

Programming and System Use

Programming Menus Flow Chart

Provides a visual guide to navigate through the transmitter's programming menus.

MDL - Model Select

Guides on selecting and managing different model profiles stored in the transmitter memory.

REV - Servo Reversing

Explains how to electronically reverse the direction of servo operation for any channel.

EPA - End Point Adjustment

Details how to adjust the maximum travel limits for steering and throttle servos.

EXP - Exponential

Describes how to adjust servo sensitivity around the neutral position for smoother control.

ABS - Anti-Lock Braking

Explains the function and activation of the Anti-Lock Braking system for improved stability.

NAME - Model Naming

Guides on how to assign custom names to the 10 different model profiles.

Digital Trim Memory

Explains how trim settings are automatically stored and recalled for each model.

Dual Rate

Details how to adjust steering and throttle sensitivity for different driving conditions.

Low Voltage Alarm

Describes the low battery warning system and its importance for safe operation.

Troubleshooting Guide

Reference

Glossary of Terms

Defines key terms and concepts used throughout the operating manual.

Index

Provides an alphabetical listing of topics and their corresponding page numbers.

AIRTRONICS MX-Sport Specifications

General

Brand	AIRTRONICS
Model	MX-Sport
Category	Remote Control
Language	English
