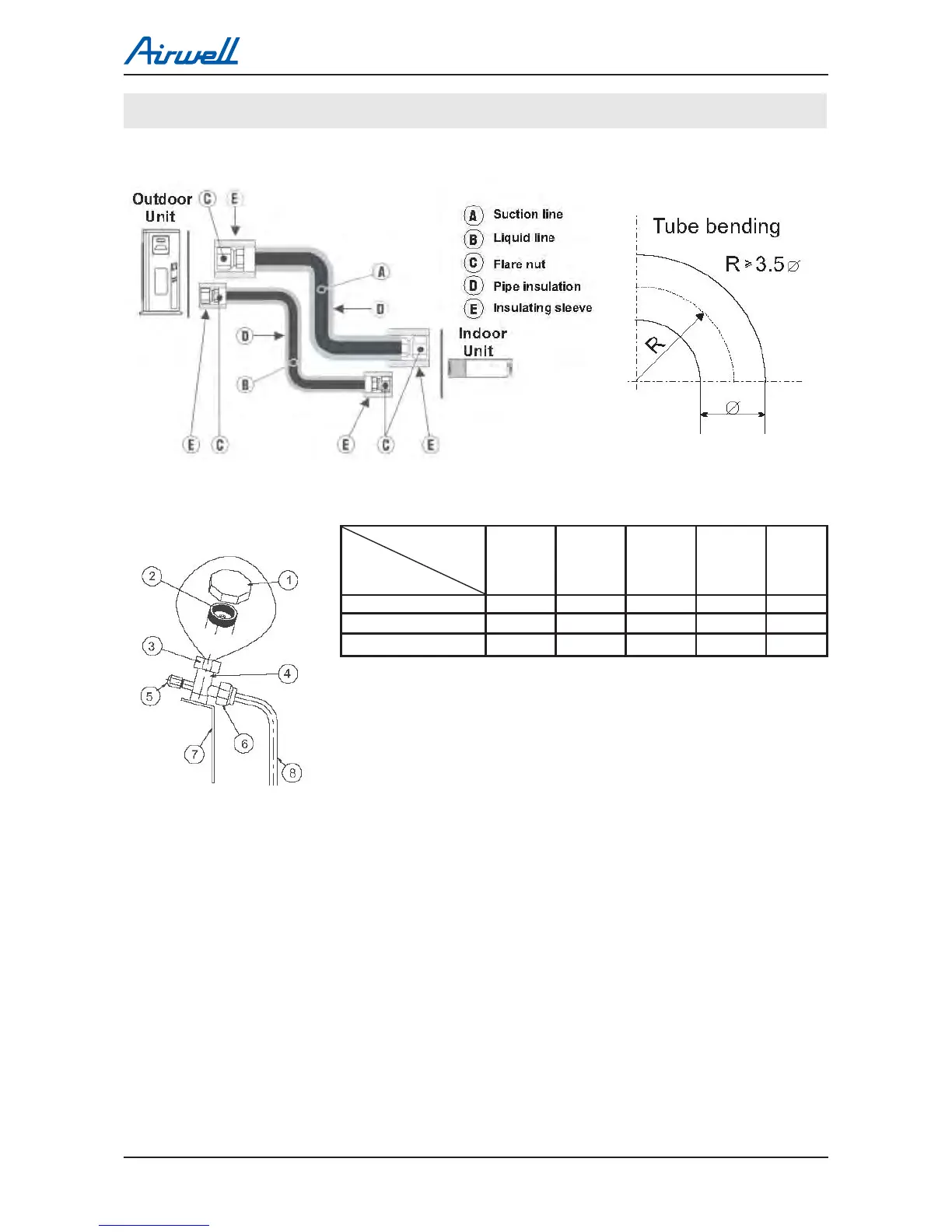

TUBING CONNECTIONS

SM DLSDCI 3-A.1 GB

11. TUBING CONNECTIONS

TUBE (Inch)

TORQUE (Nm)

¼” ⅜” ½” ⅝” ¾”

Flare Nuts

15-18 40-45 60-65 70-75 80-85

Valve Cap

13-20 13-20 18-25 18-25 40-50

Service Port Cap

11-13 11-13 11-13 11-13 11-13

1. Valve Protection Cap-end

2. Refrigerant Valve Port (use Allen wrench to open/close)

3. Valve Protection Cap

4. Refrigerant Valve

5. Service Port Cap

6. Flare Nut

7. Unit Back Side

8. Copper Tube
