PERFORMANCE DATA & PRESSURE CURVES
SM FLODCI 2-A.4 GB

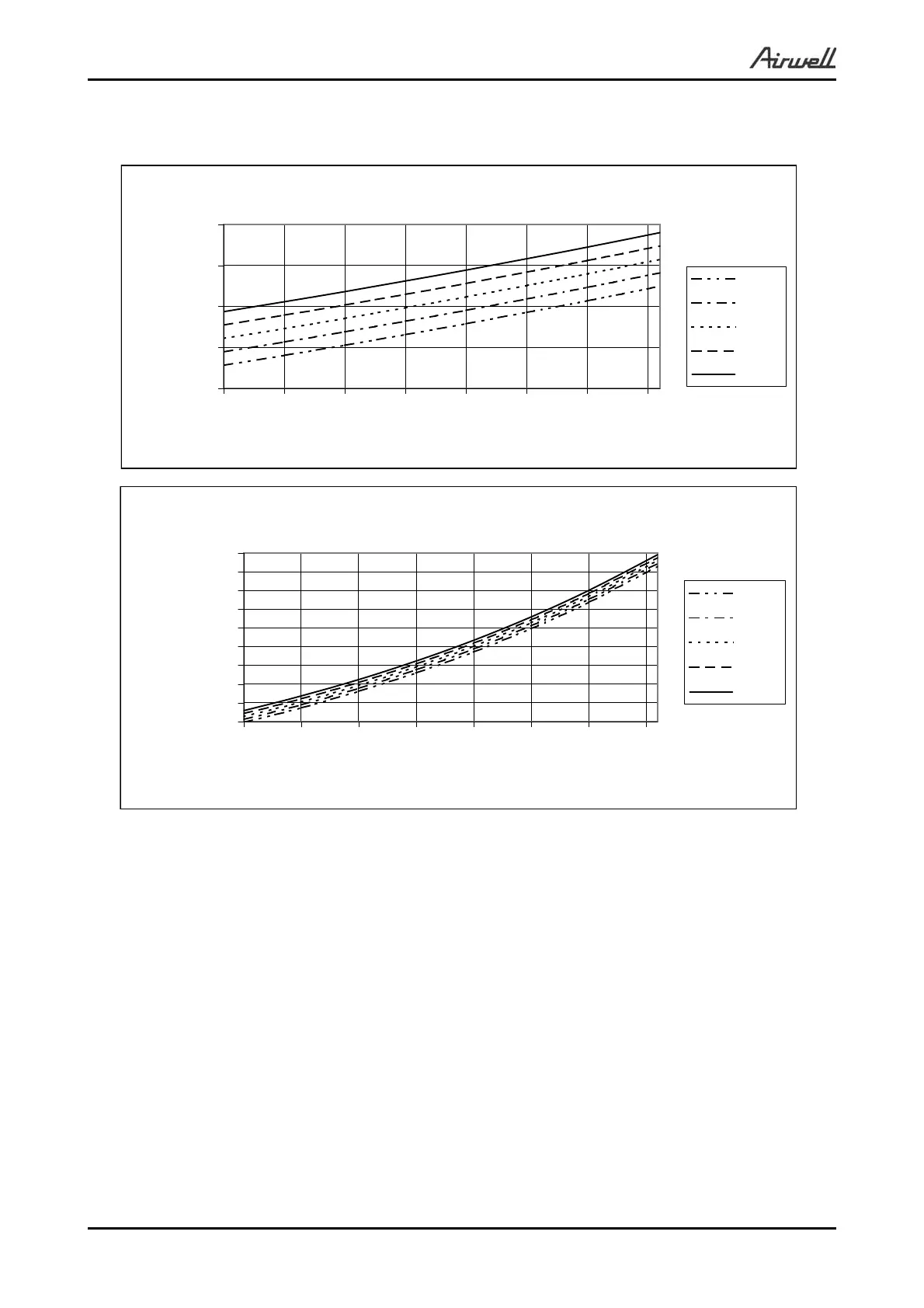

5.7.7 Model: FLO 24 DCI / GC 24 Z Cooling — Test Mode.
Discharge Pressure vs. Outdoor Temperature
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Discharge Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB
Suction Pressure vs. Outdoor Temperature
600
700
800
900
1000
10 15 20 25 30 35 40 45
Outdoor DB Temperature
Suction Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB
