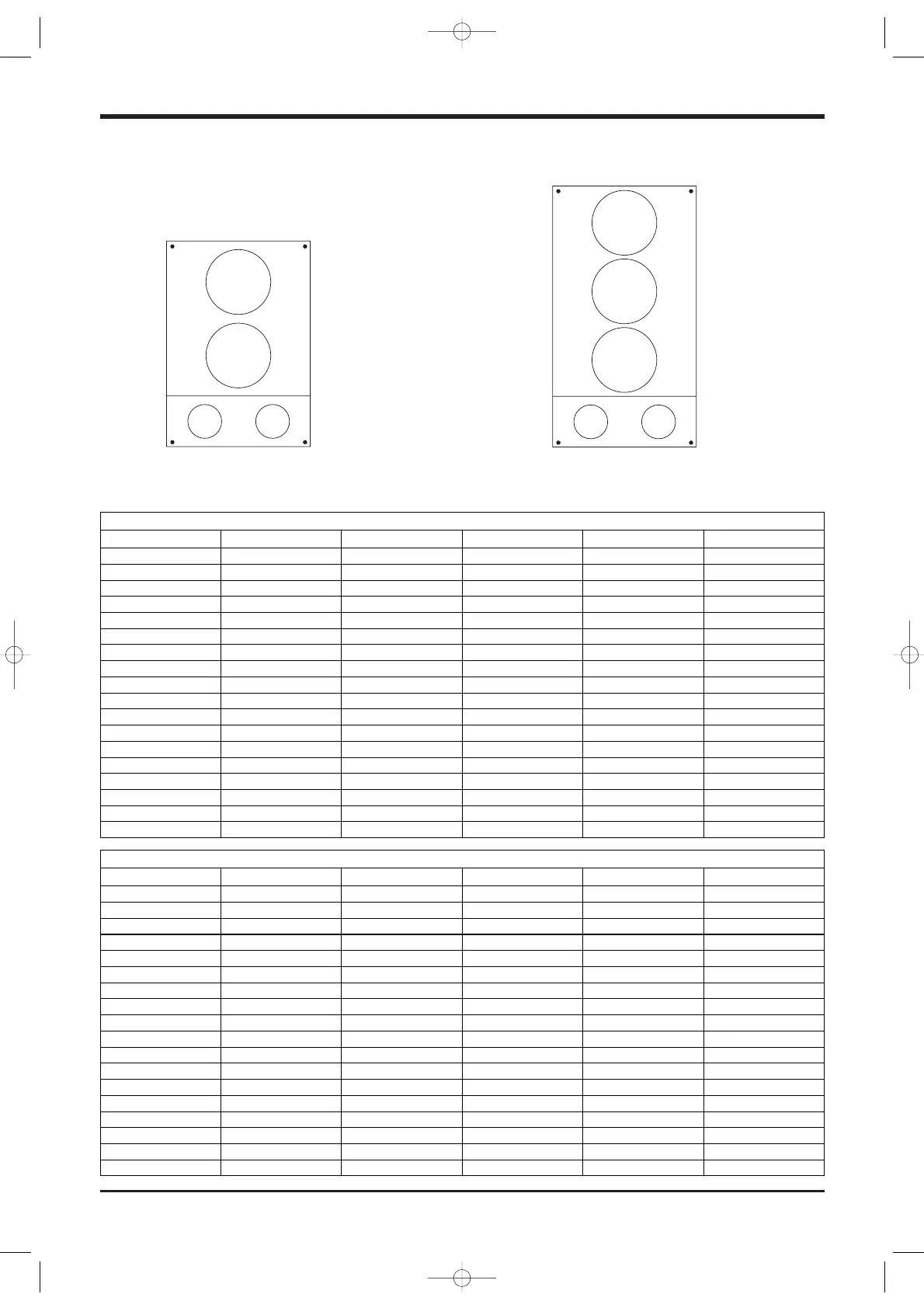

Technical data
A3 A4
A2 A1
Lato Compressori
V2
V1
C1 C2
A3 A4
A2 A1
Lato Compressori
V3
V2
V1
C1 C2
BASIC UNIT
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLH
182 STD/LN/HPF 650 224 209 101 116
202 STD/LN/HPF 700 238 223 112 127
242 STD/LN/HPF 860 296 280 134 150
302 STD/LN/HPF 910 317 300 138 155
352 STD/LN/HPF 1010 355 336 150 169
402 STD/LN/HPF 1160 401 379 179 201
502 STD/LN/HPF 1160 401 379 179 201
552 STD/LN/HPF 1295 447 423 200 224
602 STD/LN/HPF 1330 459 435 206 230
182 ELN 670 225 211 110 124
202 ELN 720 239 224 121 136
242 ELN 910 298 283 157 172
302 ELN 960 327 311 153 169
352 ELN 1130 388 367 177 198
402 ELN 1180 407 385 183 205
502 ELN 1180 407 385 183 205
552 ELN 1315 453 429 204 228
602 ELN 1350 465 441 210 234
UNIT WITH 1 PUMP
Support 4 (A4)Support 3 (A3)Support 2 (A2)Support 1 (A1)Weight (kg)
CLH
182 STD/LN/HPF 682 236 220 105 121
202 STD/LN/HPF 732 249 233 117 133
242 STD/LN/HPF 892 307 291 139 155
302 STD/LN/HPF 942 328 311 143 160
352 STD/LN/HPF 1042 367 347 154 174
402 STD/LN/HPF 1192 412 390 184 206
502 STD/LN/HPF 1192 412 390 184 206
552 STD/LN/HPF 1327 458 434 205 230
602 STD/LN/HPF 1362 470 445 211 236
182 ELN 702 236 221 115 130
202 ELN 752 249 234 127 142
242 ELN 942 309 292 162 179
302 ELN 992 338 321 158 175
352 ELN 1162 399 378 182 203
402 ELN 1212 418 396 188 210
502 ELN 1212 418 396 188 210
552 ELN 1347 464 440 209 234
602 ELN 1382 476 451 215 240
(For the support position, see paragraph 8.5).
Compressor side
Compressor side
