2.Main power switch
3.Battery charging instructions
Tip: Please turn off power to prevent the battery from over-discharging if riders don’t use it.
When the indicator is on, H3T is powered on, and when it's off,H3T is powered off.
Please connect the charger to the wheelchair before connecting it to
the AC power while charging. Please align the notch on the charger
(See Picture 3-1) with the protruding part of the charging port (See
Picture 3-2), insert and tighten the xing cap for connection. Please
loosen the xing cap before removing the charger from the wheelchair.
3-1 3-2
notch
protruding part
Warning
Please do not throw away the waste battery, so as not to pollute the environment. The waste lithium battery of the product is to be
recycled by the enterprise or dealer, and the government designated outlets.
4. Left and Right Joystick Exchange
4-3 4-4 4-5 4-64-1 4-2

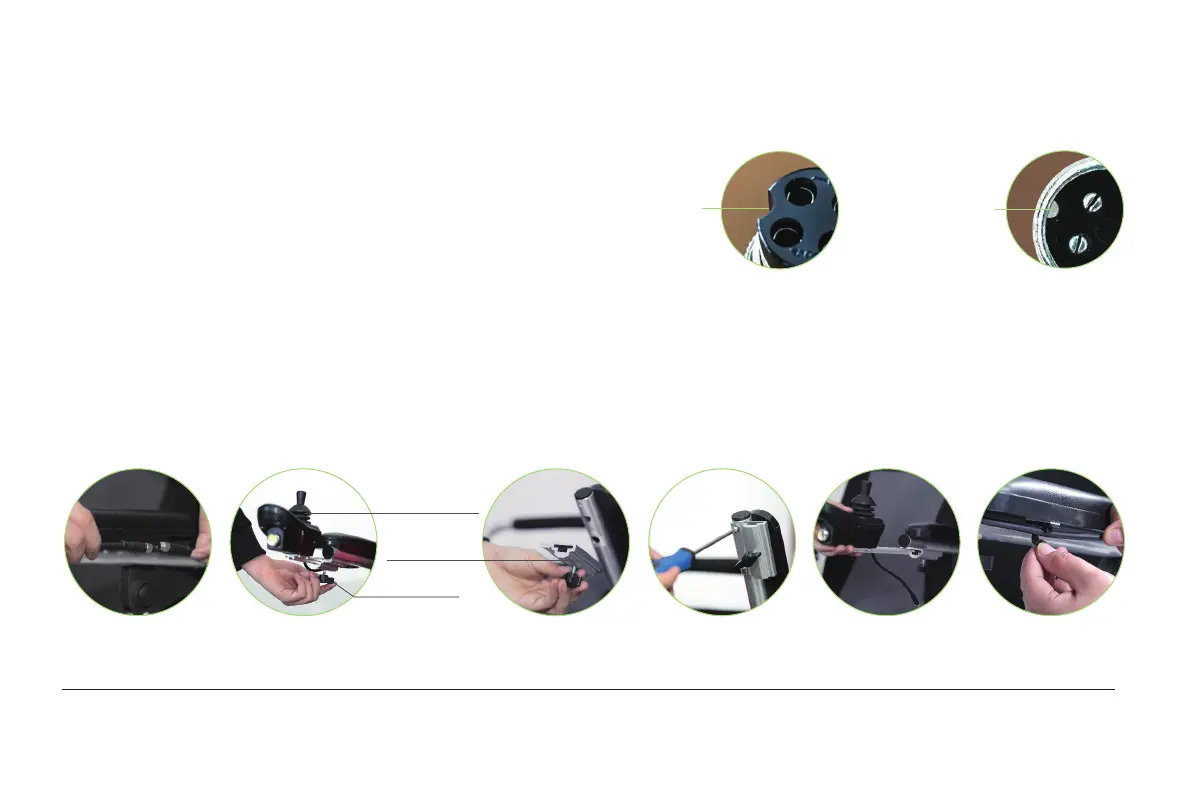

Disconnect the joystick cable (Figure 4-1) and loosen the screw to remove the joystick (Figure 4-2). Remove notch of one side
of the joystick (Figure 4-3), turn it 180 degrees to the other armrest position, tighten the screw to secure the joystick (Figure
4-4), then insert the joystick into the notch. Attach the screw (Figure 4-5), reconnect the joystick wiring, and nally attach the
joystick cable with the cable ties (Figure 4-6).
The joystick
groove
The joystick
assembly
Screw
To Next Page
