Thermostat Installation

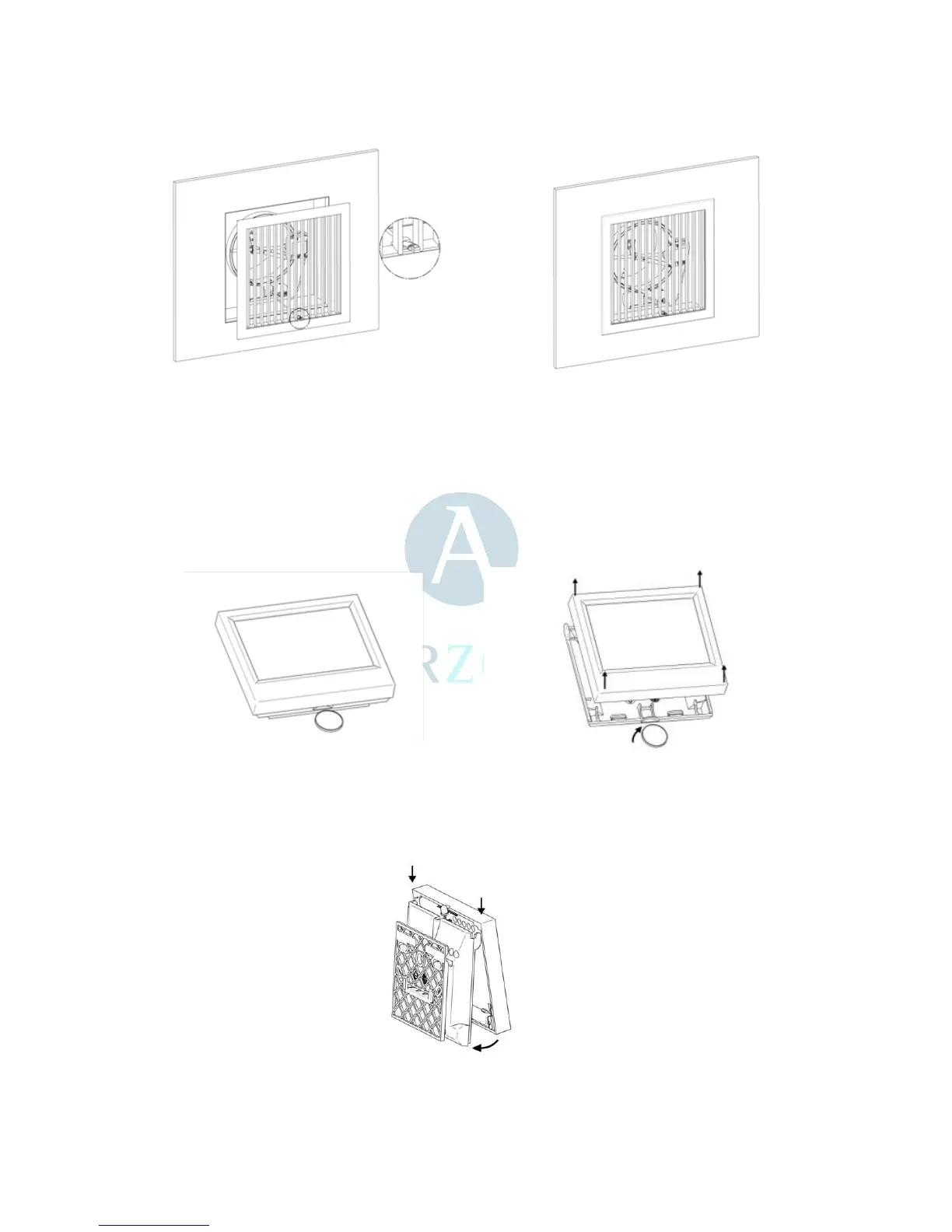

1.- Fix the base to the wall If screws are used, you will have to disassemble the thermostat from its base
before, as it is indicated below:
Detach the thermostat from the base using a coin
2.- Once fixed the base to the wall, if the thermostat had to be disassembled, reassemble to its base as
indicated below:
Insert the panel in the guides in the superior part of the base of the thermostat and close the thermostat
8.- Fix the IR receiver with the stick tape on the grid,
pointing towards the final position of the thermostat
9.- Replace the grille in its original position
