3 THERMOSTATS
3.1 THERMOSTAT AIRZONE FREE
By pressing the MODE BUTTON on the master
remote you can choose sequentially from the
options of VENT, COOL or HEAT. The same
button also serves to shut off the climate control
system in the entire home, choosing STOP.
The ZONE CONTROL button lets you turn the
air conditioning on or off in each particular
room. When the air conditioning system is off,
the word “OFF” appears on the remote’s
display. Likewise, the word “ON” will appear on
the display while the air conditioning system is
operating.
The ECO TIMER button allows you to activate the timing function. This function shuts off the
air conditioning in the selected room after 30, 60 or 90 minutes. Hold down the button until
the display shows the desired time. When this function is activated the word “ECO” appears
on the display.
The ADJUSTMENT ARROWS allow you to set room temperature, ranging from 15ºC to
35ºC, at intervals of 0,5ºC.
NOTE: The remote control has range of 15 metres. Whenever a change is made a signal will
be heard from the receiver confirming it has received the information.
3.2 AIRZONE PLUS THERMOSTAT

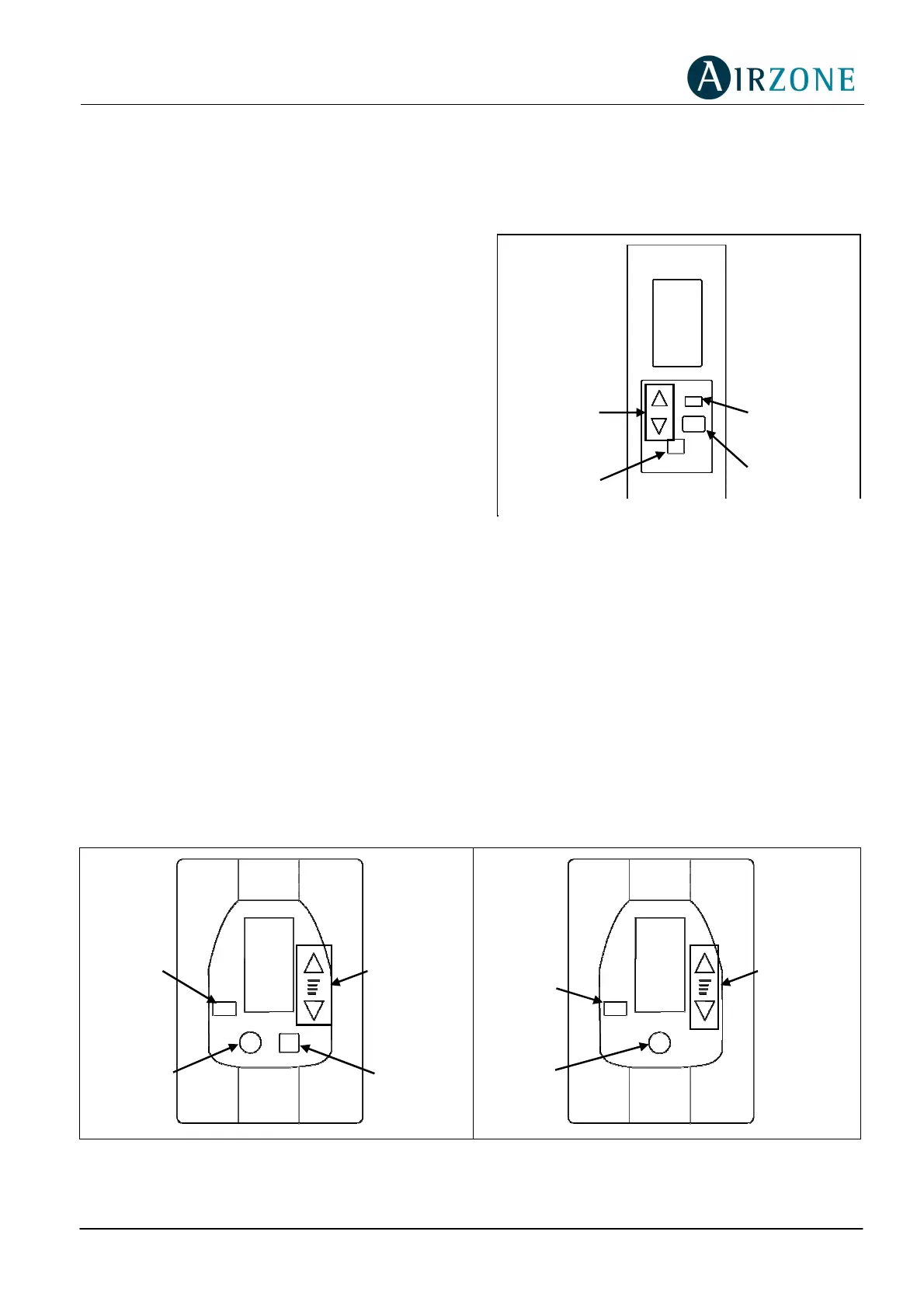

Fig. 3 – Airzone Plus Master Thermostat Fig. 4 – Airzone Plus Zone Thermostat
Eco-
timer
Button
Zone
ON/ OFF
Adjustment
Arrows
Mode
Button
Eco-
timer
Button
Adjustment
Arrows
Zone
ON/ OFF
Adjustment
arrows
Mode
Button
Eco-timer
Button
Zone
Control
Fig. 2
–
Master Airzone Free remote control and
Free Receiver
