AJAX DoorProtect User Manual

For detection and pairing to occur, the detector should be located within the
coverage area of the wireless network of the hub (at the same facility).
1. Select theAdd Device option in the Ajax app.

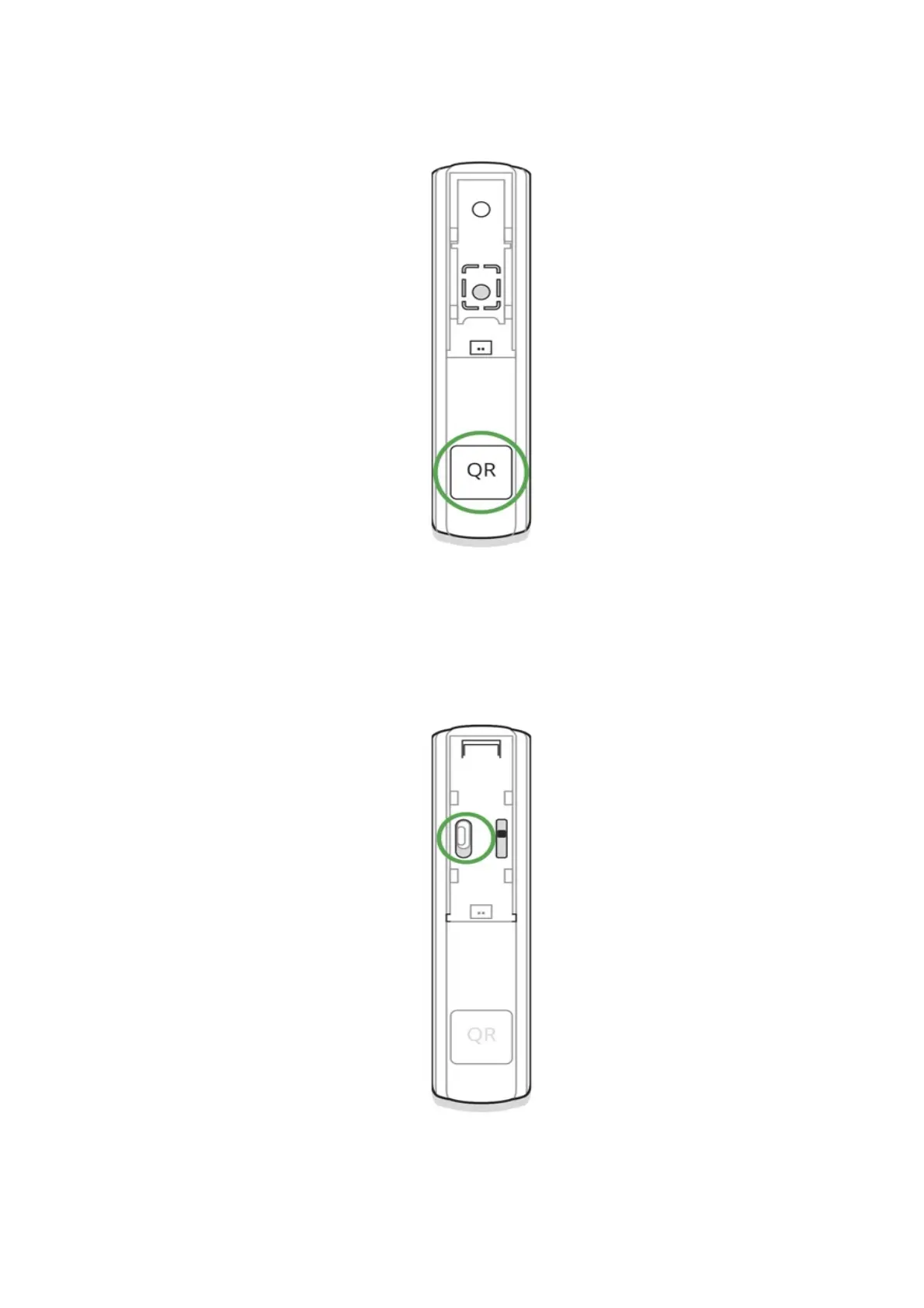

2. Name the device, scan/write manually the QR Code (located on the body
and packaging), and select the location room.
3. SelectAdd— the countdown will begin.
4. Switch on the device.

AJAX DoorProtect Specifications

General

Battery life	Up to 7 years
Tamper alarm	Yes
Operating humidity	Up to 75%
Protection Class	IP50
Type	Wireless
Detection distance	1 cm
Communication range	Up to 1, 200 m in an open space
Battery type	CR123A battery
Operating temperature range	-10°C to +40°C
Dimensions	20 x 90 mm
Radio frequency	868.0 - 868.6 MHz
Compatibility	Hub
