LUBRICATION CHART

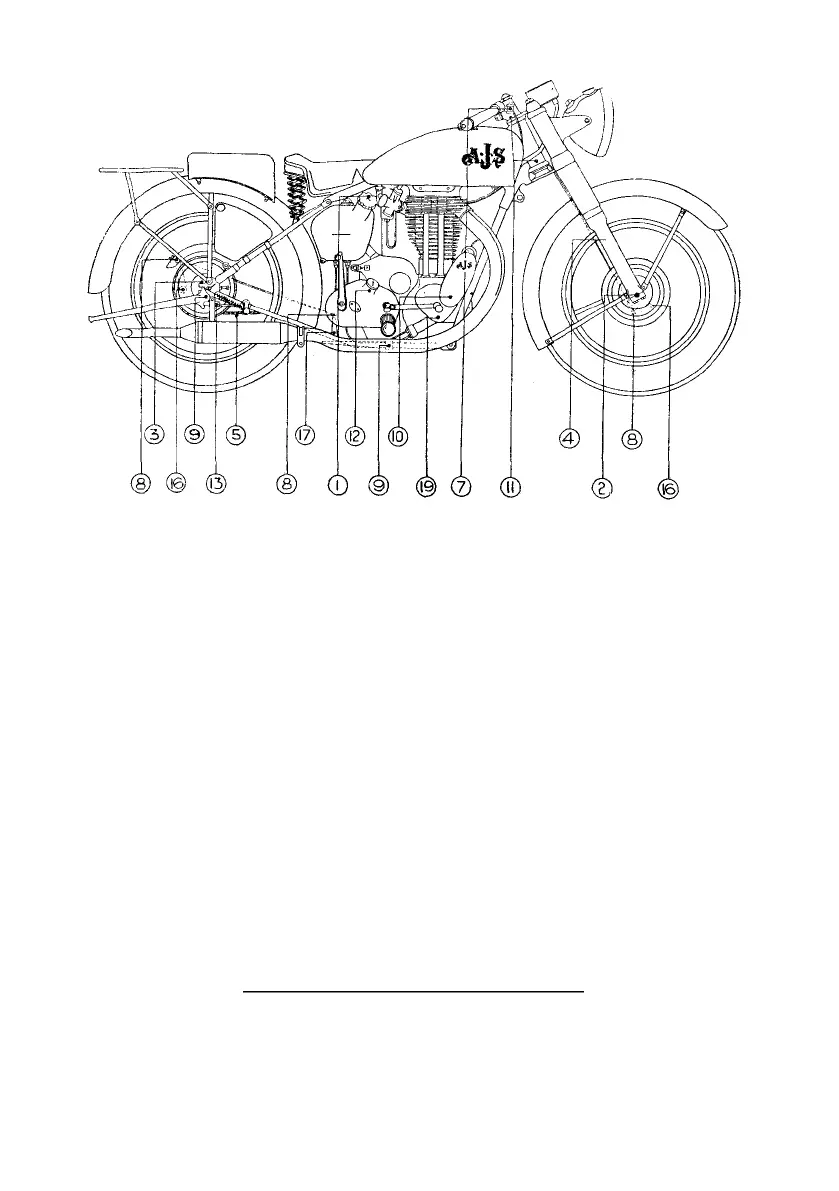

Illustration 7
Lubrication Chart
Engine Oil Locations
Tallow Location
1
7
8
9
19
12
4
MAIN OIL TANK.
CONTROL LEVER MOVING PARTS.
BRAKE ROD JOINTS.
FRONT PROP, AND REAR STAND HINGE
PINS.
FRONT CHAIN CASE.
GEAR BOX.
Hydraulic Fluid Location
FRONT FORKS (Fill at Top).
5
2
3
10
11
13
16
17
REAR CHAIN.
Grease Locations
FRONT HUB.
REAR HUB.
MAGNETO CHAIN CASE.
STEERING HEAD BEARINGS.
SPEEDOMETER GEAR BOX.
FRONT AND REAR BRAKE EXPANDERS.
BRAKE PEDAL SPINDLE.
When buying oils and greases it is advisable to specify the Brand as well as the grade
and, as an additional precaution, to buy only in sealed containers or from branded
cabinets.
