ENGINE SERVICE
ACCESS
For almost all service work to the upper parts of the engine, it is necessary, in order to
obtain accessibility, first, to remove the petrol tank. The two petrol taps facilitate
this operation by removing the need to first drain the tank of petrol.

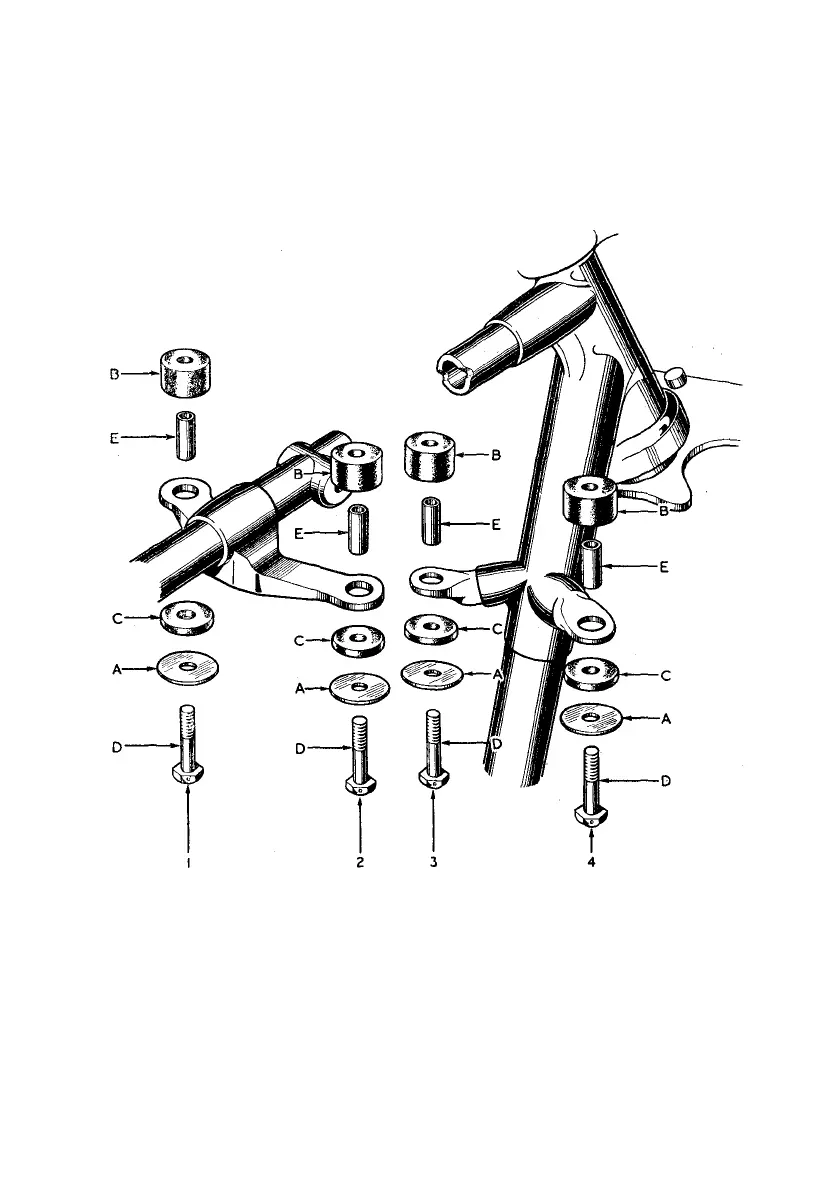

Illustration 8
Showing details and order of assembly, of the fuel tank fixing bolts and
components
A
B
C
D
E
METAL WASHER
THICK RUBBER PAD
THIN RUBBER PAD
TANK FIXING BOLT
SLEEVE FOR FIXING BOLT
Part Number
014999
014995
014996
014997
014998
1¼" diameter.
s" .hgih
x" high.
1¼" x c" x 26.
m .gnol "
… … … … … …
… … … … … …
… … … … … …
… … … … … …
… … … … …
…
…
…
…
…
