AJS 16M - Wiring Diagram

LIGHTING SWITCH
SPEEDO ILL.
DIPPER SWITCH
HORN PUSH
DYNAMO
TO SPARKING
PLUG
SNAP
CONNECTOR
MAGNETO
REGULATOR
BATTERY
(NEGATIVE EARTH)
BATTERY
CONNECTOR
HORN
TAIL LAMP
PILOT
BULB
MAIN
BULB
AMMETER

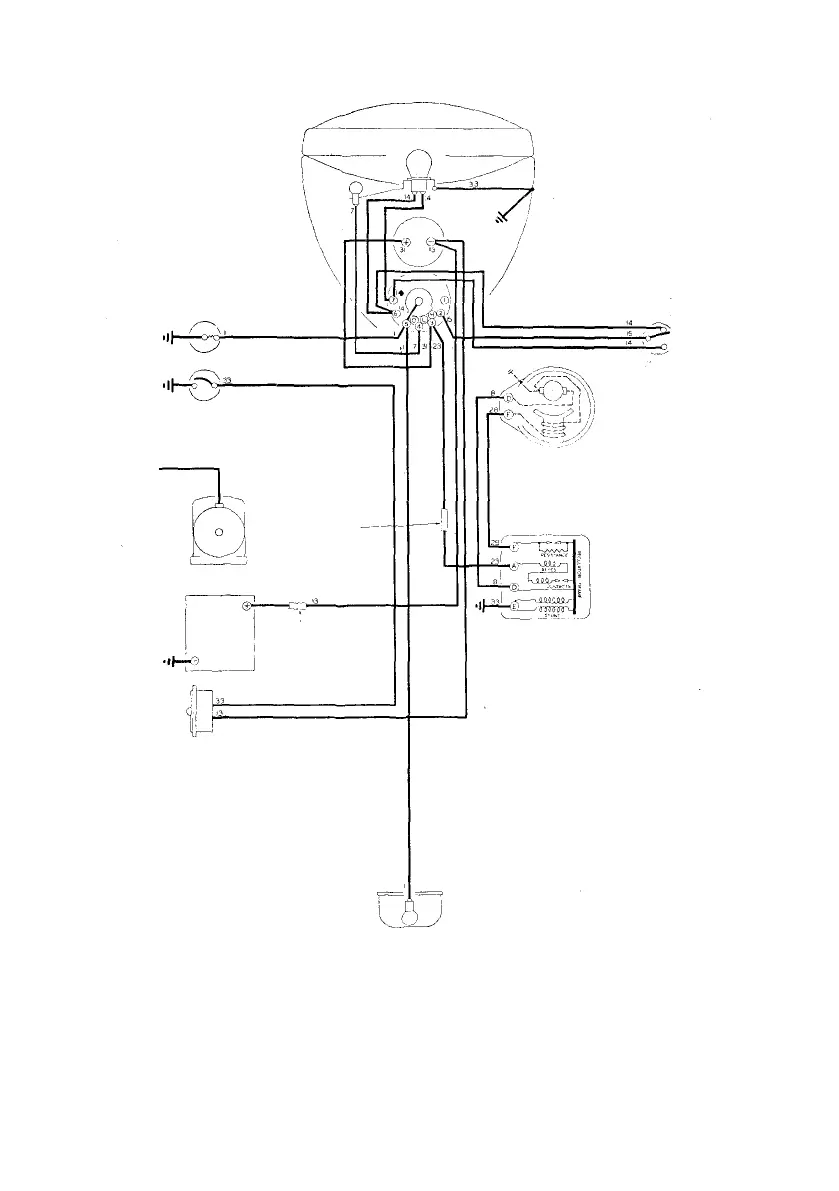

Illustration 38
Wiring diagram
(See page 96 for key to the cable numbers and colours.)
