Selecting the Installation Place
Indoor unit
This Air Conditioner (9000 BTU) is suitable for cooling or heating a room of
up to 22m
2
in size. Before starting installation, decide on the position of the
indoor and outdoor units, taking into account the minimum space required
around the units.
Install the indoor unit:
3 Level, on a strong wall that is not subject to vibrations
3 Near an electrical socket or private circuit
3 So that the inlet and outlet ports are not be obstructed, the air should be
able to blow all over the room
3 Where the minimum clearances can be maintained (Fig.1) and at least
2.30m above floor height
3 Where connection between the indoor and outdoor units is as easy as
possible.
Do NOT install the indoor unit:
2 Near a source of heat, steam or flammable gas
2 Near a doorway
2 Where it will be exposed to direct sunlight or affected by the outdoor air
2 Where it will be affected by oil fumes or splashes, smoke or steam
2 Near high-frequency facilities (such as high frequency arc welders, etc.)
2 In areas where acid solutions or special sulfide sprays are frequently used
2 Above musical instruments, TVs, computers or other valuable appliances
2 Where the air outlet of the indoor unit would be near a fire/smoke alarm (during
operation, warm air from the unit might erroneously trigger the alarm).
NOTE: If additional function devices are to be installed above the air conditioner,
make sure to leave the extra required space for such devices.

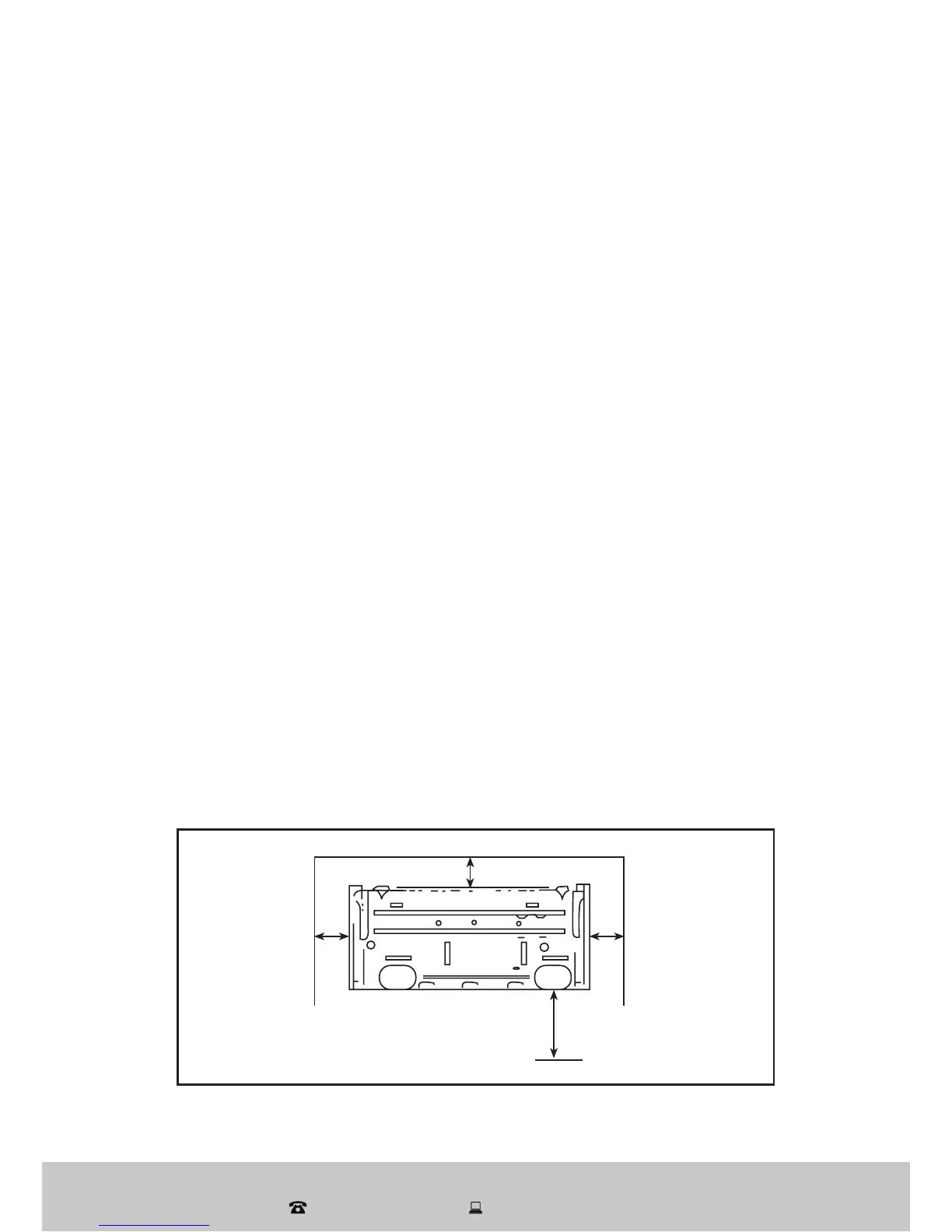

Above 100mm(4")
Left side: 150mm(6")
and above from wall
Right side: 150mm (6")
and above from wall
Ceiling
Wall hanging plate
ground
2300mm(7'6")
and above
Fig.1
