8
Installation
After Sales Support
1300 886 649 | info@tempo.org

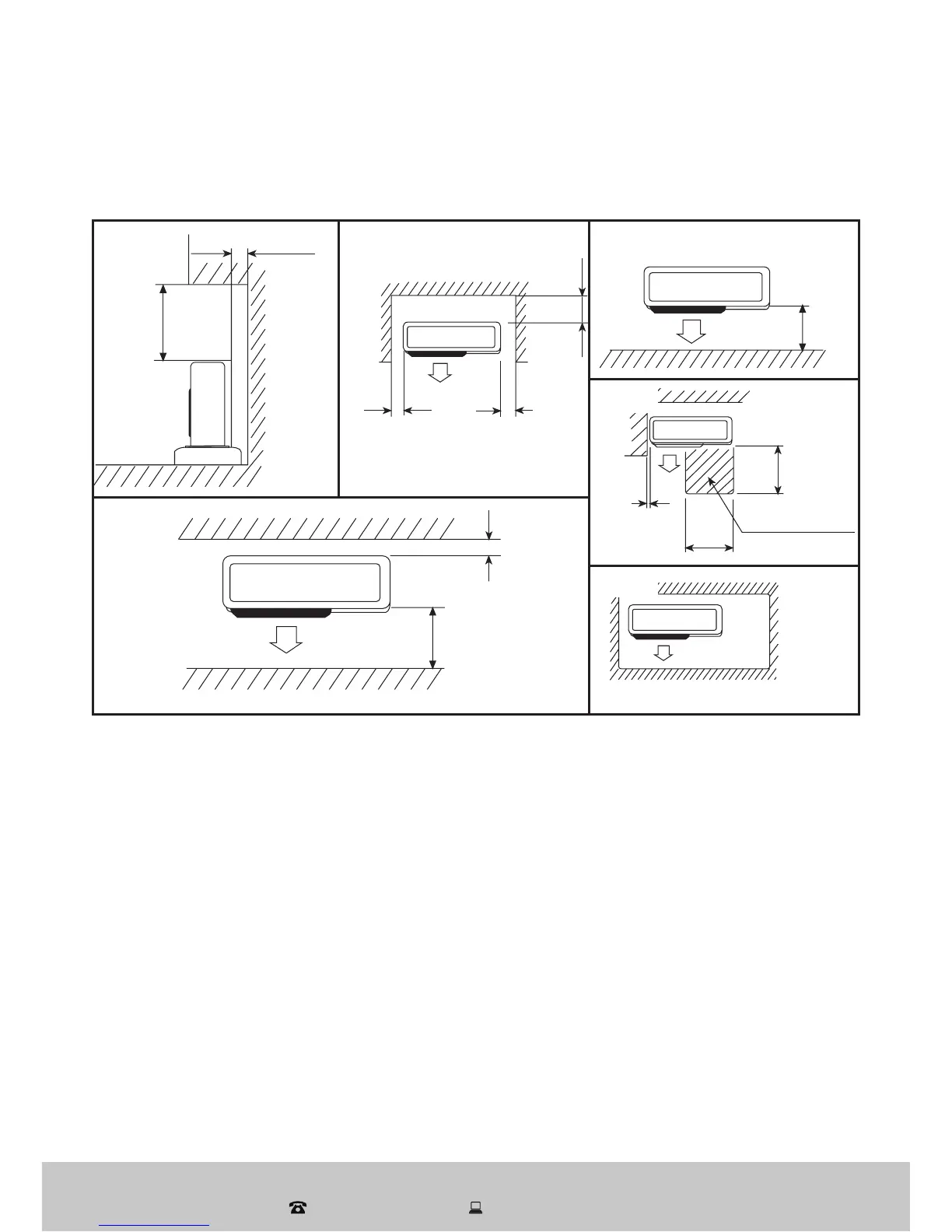

Detailed space requirements around the outdoor unit
500mm(1'8") min
100mm(4") min
500mm(1'8") min
200mm(8") min
500mm(1'8") min
500mm
(1'8")min
200mm
(8")min
Space for maintenance
200mm(8") min
300mm(1') min
1000mm(3'4") min
100mm(4") min
Fig.3 Fig.4 Fig.5
Fig.6
Fig.7
Fig.8
The above listed clearances must be maintained:
1. When there are obstacles above the unit (Fig.3).
2. When the front (air outlet) is open (Fig.4).
3. When there are obstacles only in the front (air outlet) (Fig.5).
4. For maintenance (Fig.6) of the unit.
5. When there are obstacles at the front and rear sides. (Fig.7).
6. When there are obstacles all around the unit, on four sides (Fig.8).
The outdoor unit must NOT be installed when there are obstacles all
around the unit, even if the top side is open. At least two sides must
be kept open.
