Akai AP-M50

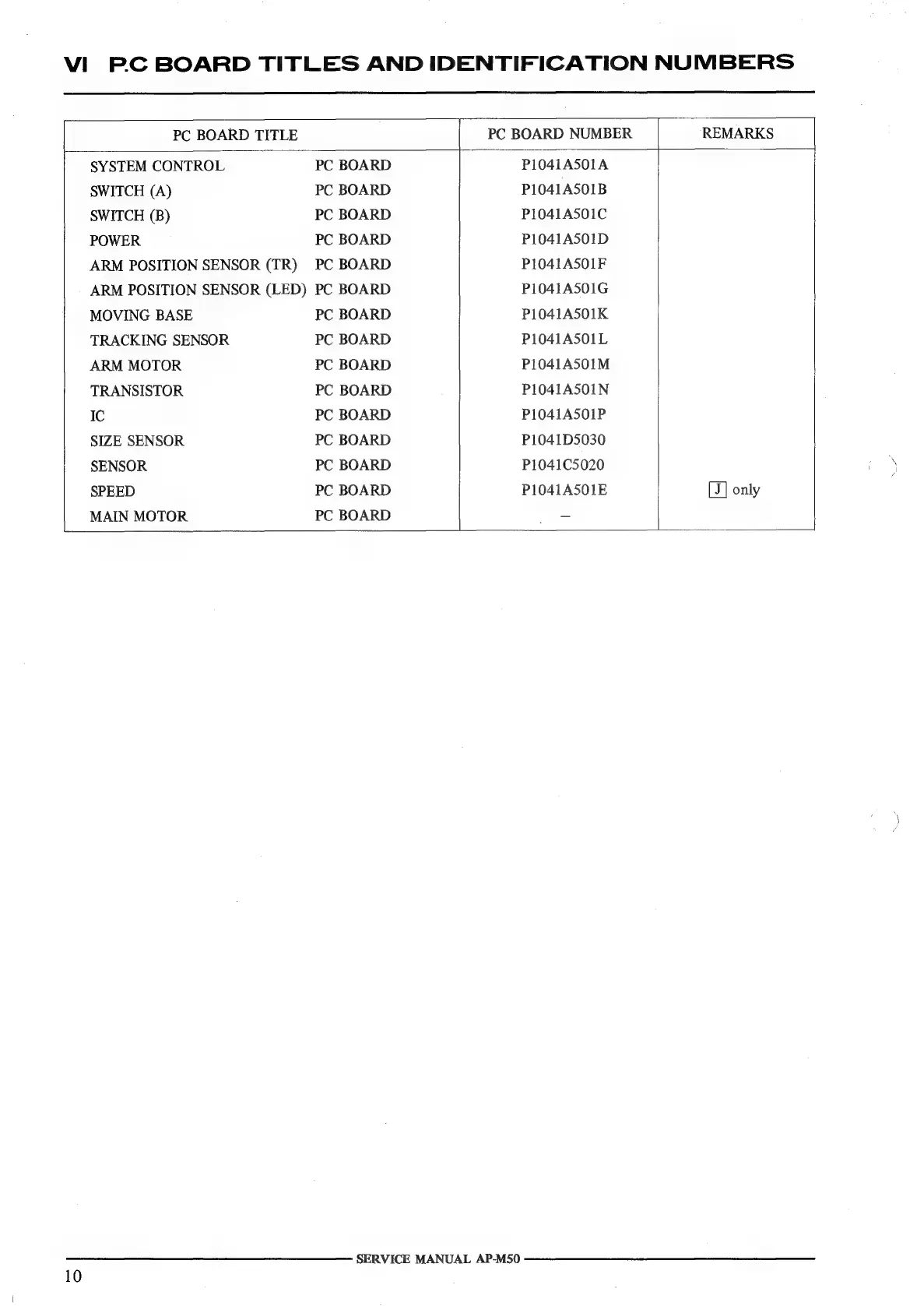

VI_ PC BOARD TITLES AND IDENTIFICATION NUMBERS
PC BOARD TITLE PC BOARD NUMBER REMARKS
r SYSTEM CONTROL PC BOARD P1041A501A
SWITCH (A) PC BOARD P1041A501B
SWITCH (B) PC BOARD P1041A501C
POWER PC BOARD P1041A501D
ARM POSITION SENSOR (TR) PC BOARD P1041 A501F
ARM POSITION SENSOR (LED) PC BOARD P1041A501G
MOVING BASE PC BOARD P1041A501K
TRACKING SENSOR PC BOARD P1041 A501L
ARM MOTOR PC BOARD P1041A501M
TRANSISTOR PC BOARD P1041A501N
Ic PC BOARD P1041A501P
SIZE SENSOR PC BOARD P1041D5030
SENSOR PC BOARD P1041C5020
SPEED PC BOARD P1041 AS01E T] only
MAIN MOTOR PC BOARD 2
SERVICE MANUAL AP-MS0O
