Akai AP-Q55

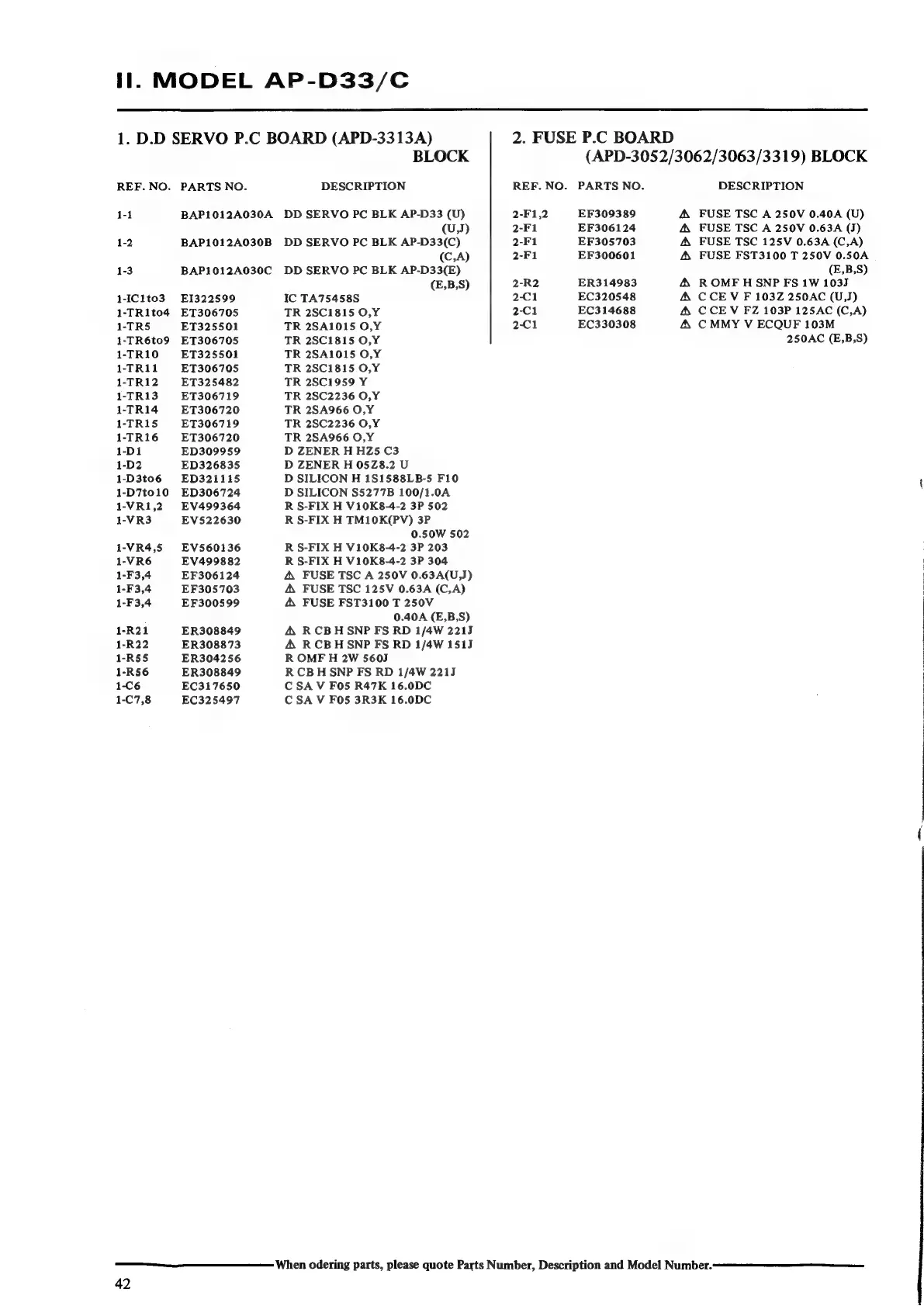

il. MODEL AP-D33/C
1. D.D SERVO P.C BOARD (APD-3313A)
REF. NO.
1-1
1-2
1-3
1-IC1to3
1-TR1to4
1-TRS
1-TR6to9
1-TR10
1-TR1i1
1-TR12
1-TR13
1-TR14
1-TR15
1-TR16
1-D1
1-D2
1-D3to6
1-D7to1i0
1-VR1,2
1-VR3
1-VR4,5
1-VR6
1-F3,4
1-F3,4
1-F3,4
1-R21
1-R22
1-RS5
1-R56
1-C6
1-C7,8
ee When odering parts, please quote Parts Number, Description and Model Number.
42
PARTS NO.
BAP1012A030A
BAP1012A030B
BAP1012A030C
EI322599
ET306705
ET325501
ET306705
ET325501
ET306705
ET325482
ET306719
ET306720
ET306719
ET306720
ED309959
ED326835
ED321115
ED306724
EV499364
EV522630
EV560136
EV499882
EF306124
EF305703
EF300599
ER308849
ER308873
ER304256
ER308849
EC317650
EC325497
BLOCK
DESCRIPTION
DD SERVO PC BLK AP-D33 (U)
(U,J)
DD SERVO PC BLK AP-D33(C)
(C,A)
DD SERVO PC BLK AP-D33(E)
(E,B,S)
IC TA75458S
TR 2SC1815 0,Y
TR 2SA1015 O,Y
TR 2SC1815 0,Y
TR 2SA1015 O,Y
TR 2SC1815 0,Y
TR 2SC1959 Y
TR 2SC2236 O,Y
TR 2SA966 0,Y
TR 2S8C2236 O,Y
TR 2SA966 0,Y
D ZENER H HZ5 C3
D ZENER H 0528.2 U
D SILICON H 1S1588LB-5 F10
D SILICON $5277B 100/1.0A
R S-FIX H V10K8-4-2 3P 502
R S-FIX H TM10K(PV) 3P
0.50W 502
R S-FIX H V10K8-4-2 3P 203
R S-FIX H V10K8-4-2 3P 304
A FUSE TSC A 250V 0.63A(U,J)
A. FUSE TSC 125V 0.63A (C,A)
A FUSE FST3100 T 250V
0.40A (E,B,S)
A RCBH SNP FS RD 1/4W 2213
A RCBH SNP FS RD 1/4W 151)
R OMF H 2W 5603
RCBH SNP FS RD 1/4W 221]
CSA V F05 R47K 16.0DC
CSA V F05 3R3K 16.0DC
2. FUSE P.C BOARD
REF. NO. PARTS NO.
2-F1,2
2-Fi
2-F1
2-F1
2-R2
2-C1
2-C1
2-Cl
(APD-3052/3062/3063/3319) BLOCK
EF309389
EF306124
EF305703
EF300601
ER314983
EC320548
EC314688
EC330308 PRPRPRP BPBPPD
DESCRIPTION
FUSE TSC A 250V 0.40A (U)
FUSE TSC A 250V 0.63A (J)
FUSE TSC 125V 0.63A (C,A)
FUSE FST3100 T 250V 0.50A
(E,B,S)
R OMF H SNP FS 1W 1033
C CE V F 103Z 250AC (U,J)
CCE V FZ 103P 125AC (C,A)
C MMY V ECQUF 103M
250AC (E,B,S)
