Akai AP-Q55

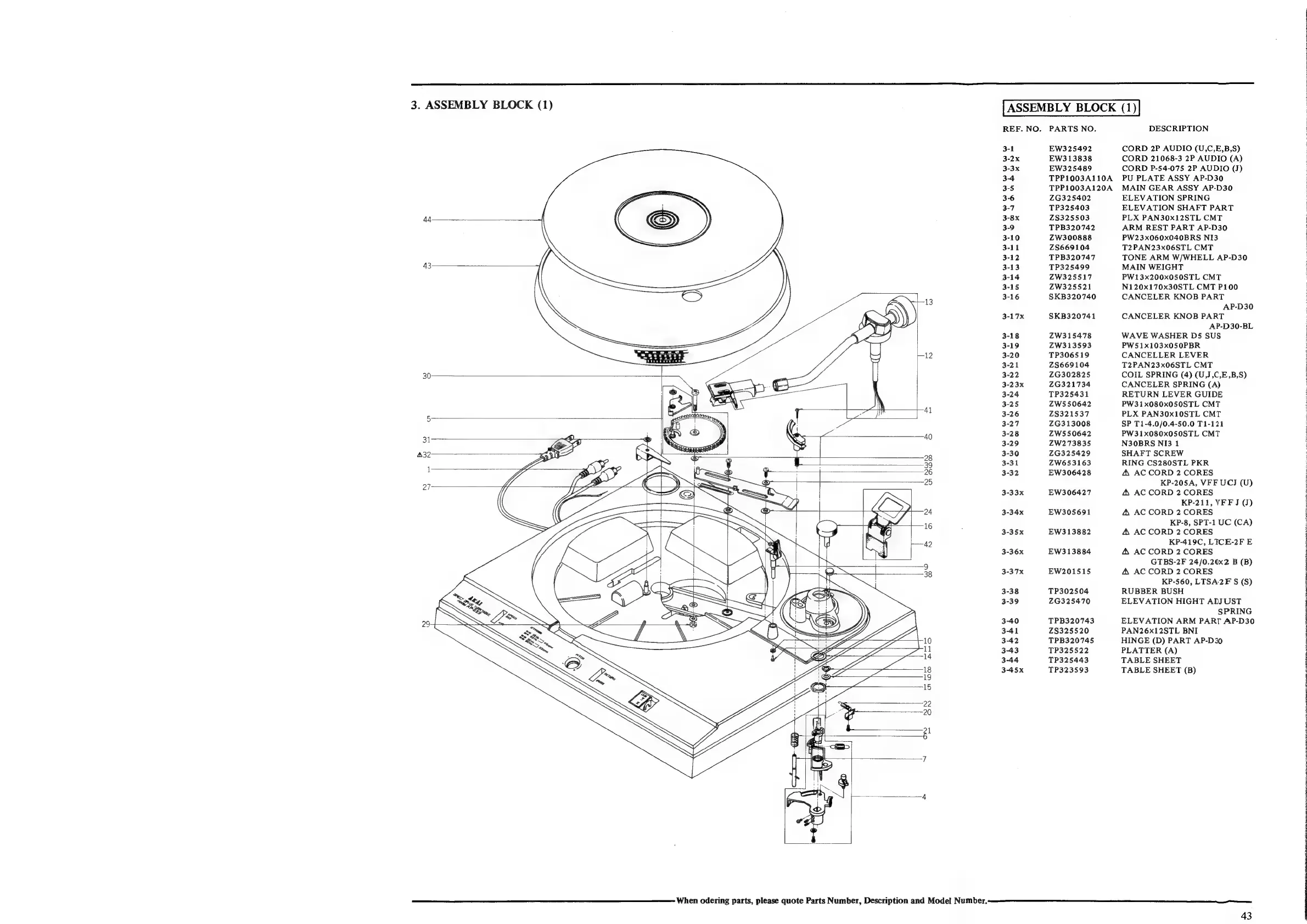

3. ASSEMBLY BLOCK (1)
ASSEMBLY BLOCK (1)
REF. NO. PARTS NO.
3-1
3-2x
3-3x
3-4
3-5
3-6
3-7
3-8x
3-9
3-10
3-11
3-12
3-13
3-14
3-15
3-16
3-17x
3-18
3-19
3-20
3-21
3-22
3-23x
3-24
3-25
3-26
3-27
3-28
3-29
3-30
3-31
3-32
3-33x
3-34x
3-35x
3-36x
3-37x
3-38
3-39
3-40
3-41
3-42
3-43
3-44
3-45x
EW325492
EW313838
EW325489
TPP1003A110A
TPP1003A120A
ZG325402
TP325403
ZS325503
TPB320742
ZW300888
ZS669104
TPB320747
TP325499
ZW325517
ZW325521
SKB320740
SKB320741
ZW315478
ZW313593
TP306519
ZS669104
ZG302825
ZG321734
TP325431
ZWS5 50642
ZS321537
ZG313008
ZW5 50642
ZW273835
ZG325429
ZW653163
EW306428
EW306427
EW305691
EW313882
EW313884
EW201515
TP302504
ZG325470
TPB320743
ZS325520
TPB320745
TP325522
TP325443
TP323593
DESCRIPTION
CORD 2P AUDIO (U,C,E,B,S)
CORD 21068-3 2P AUDIO (A)
CORD P-54-075 2P AUDIO (J)
PU PLATE ASSY AP-D30
MAIN GEAR ASSY AP-D30
ELEVATION SPRING
ELEVATION SHAFT PART
PLX PAN30x12STL CMT
ARM REST PART AP-D30
PW23x060x040BRS NI3
T2PAN23x06STL CMT
TONE ARM W/WHELL AP-D30
MAIN WEIGHT
PW13x200x050STL CMT
N120x170x30STL CMT P100
CANCELER KNOB PART
AP-D30
CANCELER KNOB PART
AP-D30-BL
WAVE WASHER D5 SUS
PW51x103x050PBR
CANCELLER LEVER
T2PAN23x06STL CMT
COIL SPRING (4) (U,J,C,E,B,S)
CANCELER SPRING (A)
RETURN LEVER GUIDE
PW31x080x050STL CMT
PLX PAN30x10STL CMT
SP T1-4.0/0.4-50.0 T1-121
PW31x080x050STL CMT
N30BRS NI3 1
SHAFT SCREW
RING CS280STL PKR
A AC CORD 2 CORES
KP-205A, VFF UCI (U)
A AC CORD 2 CORES
KP-211, VFF J (J)
A AC CORD 2 CORES
KP-8, SPT-1 UC (CA)
A AC CORD 2 CORES
KP-419C, LICE-2F E
4 AC CORD 2 CORES
GTBS-2F 24/0.20x2 B (B)
A AC CORD 2 CORES
KP-560, LTSA-2F S$ (S)
RUBBER BUSH
ELEVATION HIGHT ADJUST
SPRING
ELEVATION ARM PART AP-D30
PAN26x12STL BNI
HINGE (D) PART AP-D30
PLATTER (A)
TABLE SHEET
TABLE SHEET (B)
When odering parts, please quote Parts Number, Description and Model Number._—————>_-_—__—_——_____
43
