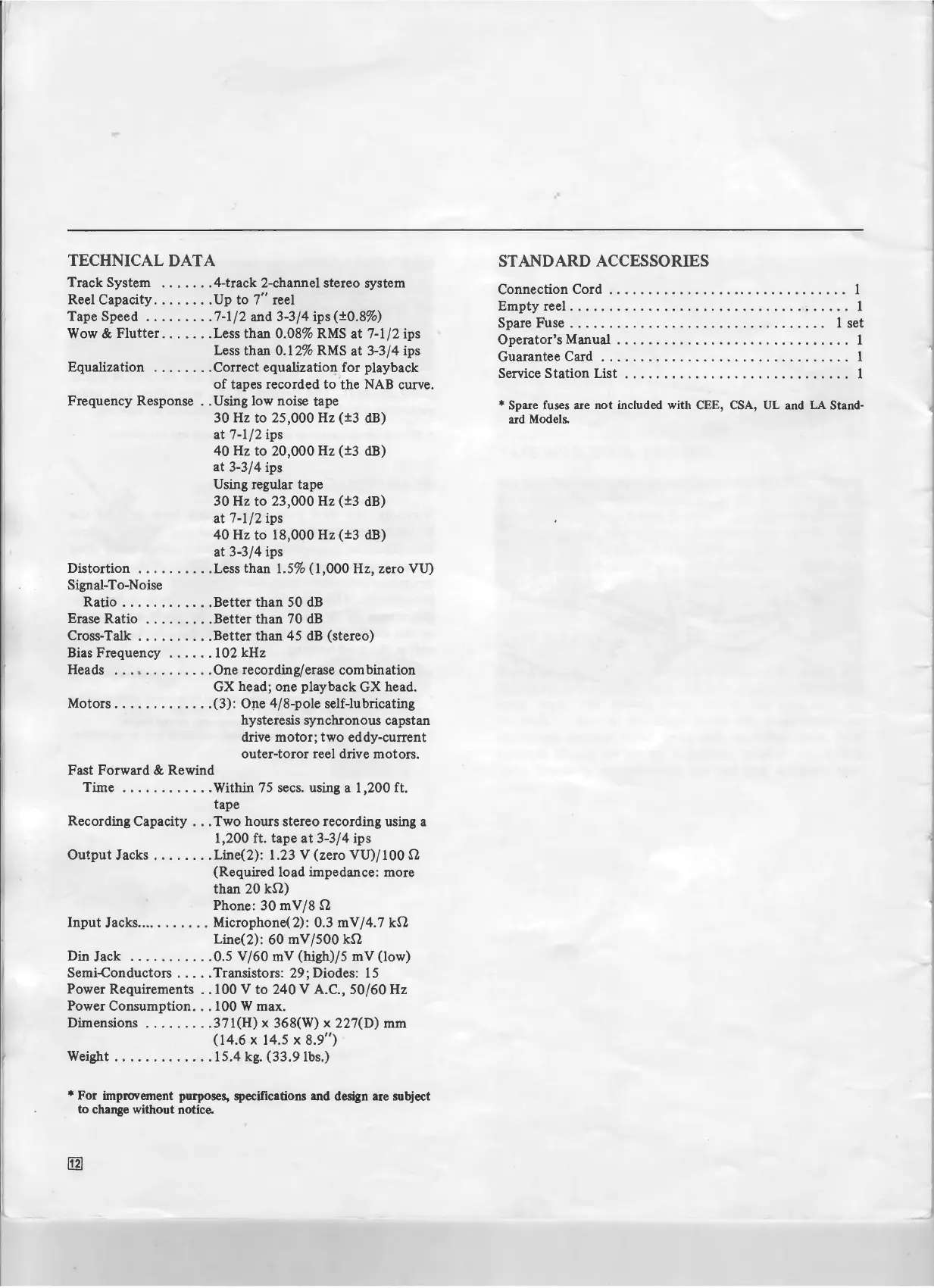

TECHNICAL DATA
Track
System
....
.
..
4-track 2-channel stereo system
Reel Capacity
.....
.
..
Up
to
7"
reel
Tape Speed .
...
..
...
7-1/2 and 3-3/4 ips (±0.8%)
Wow
&
Flutter
...
.
...
Less
than
0.08%
RMS
at
7-1/2 ips
Less
than
0.12%
RMS
at
3-3/4 ips
Equalization .
....
...
Correct equalization for p1ayback
of
tapes recorded to
the
NAB
curve.
Frequency Response . . Using low noise tape
30Hz
to 25,000 Hz (±3
dB)
at 7-1/2 ips
40 Hz
to
20,000 Hz (±3 dB)
at
3-3/4 ips
Using regular tape
30Hz
to
23,000 Hz (±3 dB)
at 7-1/2 ips
40Hz
to
18,
000
Hz (±3 dB)
at 3-3/4 ips
Distortion .
.....
.
...
Less
than
1.5% (1,000 Hz, zero VU)
Signal-To-N oise
Ratio
..
.
..
.
..
.
...
Better
than
50
dB
Erase Ratio
.....
.
...
Better than
70
dB
Cross-Talk .
..
...
....
Better than 45
dB
(stereo)
Bias Frequency
..
.
..
. 102 kHz
Heads . . . .
.........
One recording/ erase corn bina
ti
on
GX head; one playback GX head.
Motors . . . .
..
.
......
(3): One 4/8-pole self-lubricating
Fast
Forward & Rewind
hysteresis synchronous capstan
drive
motor;
two eddy-current
outer-toror reel drive motors.
Time . .
..
. . .
..
..
. Within
75
secs. using a 1,200 ft.
tape
Recording Capacity .
..
Two hours stereo recording using a
1,200 ft. tape
at
3-3/4 ips
Output
Jacks
..
......
Line(2): 1.23 V (zero VU)/100
il
(Required load impedance: more
than 20
kil)
Phone:
30
mV/8
il
Input
Jacks
...........
Microphone(2): 0.3 mV/4.7
kil
Line(2): 60
mV/500
kil
Din Jack
........
.
..
0.5
V/60
mV (high)/5
rn
V (low)
Semi-Conductors
.....
Transistors: 29; Diodes: 15
Power Requirements . . 100 V
to
240 V A.C.,
50/60Hz
Power Consumption .
..
100 W max.
Dimensions . .
..
.
..
. . 371(H) x 368(W) x 227(D) mm
(1
4.6 x 14.5 x
8.9")
Weight
..
..
.
...
. . . . . 15.4 kg.
(33.9lbs.)
•
For
improvement purposes, specifications and design are subject
to
change without notice.
STANDARD ACCESSORIES
Connection Co rd
...
..
.......
.
..
.
...
.
.....
.
..
. . .
Empty
reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Spare Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 set
Operator's Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Guarantee Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Service Station List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
* Spare fuses are
not
included with CEE, CSA, UL
and
LA
Stand-
ard Models.
