'----Fuse
Post
CD)
OUT50Hz
IN
60Hz
~
A
KAI
~-e·
• •
\__Voltage
Selector Plug
.50Hz
Dt.
· 60Hz
AKAI

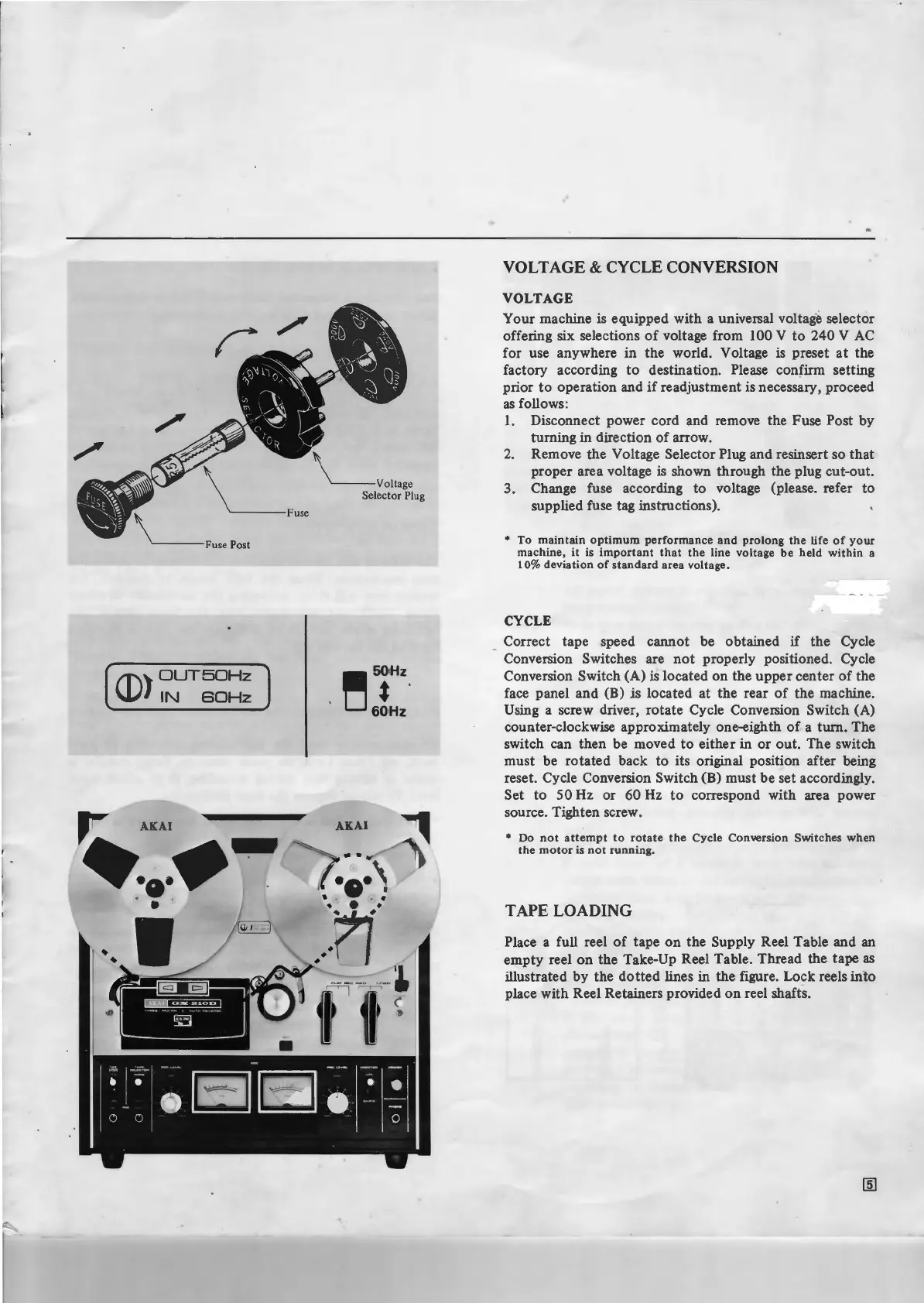

VOLTAGE & CYCLE CONVERSION
VOLTAGE
Your machine is equipped with a universal voltage selector
offering six selections
of
voltage from 100 V
to
240 V
AC
for use anywhere in the world. Voltage
is
preset
at
the
factory according
to
destination. Please confirm setting
prior
to
operation and
if
readjustment is necessary, proceed
as
follows:
1.
Disconnect power cord and remove the Fuse Post by
turning in direction
of
arrow.
2. Remove the Voltage Selector Plug and resinsert so
that
proper area voltage is shown through the plug eut-out.
3. Change fuse according
to
voltage (please. refer
to
supplied fuse tag instructions).
•
To
maintain
optimum
performance
and
prolong
the
!ife
of
your
machine,
it
is
important
that
the
line
voltage
be
held
within
a
10%
deviation
of
standard
a
rea
voltage.
CYCLE
Correct tape speed cannot be obtained
if
the Cycle
Conversion Switches are
not
properly positioned. Cycle
Conversion Switch (A)
is
located
on
the
upper
center
of
the
face panel and (B)
is located at the rear
of
the machine.
Using a screw driver,
rotate
Cycle Conversion Switch (A)
counter-clockwise approximately one-eighth
of
a turn. The
switch can
then
be moved
to
either in
or
out. The switch
must be rotated back
to
its original position after being
reset. Cycle Conversion Switch (B)
must
be set accordingly.
Set
to
50
Hz or
60Hz
to
correspond with area power
source. Tighten screw.
• Do
not
a
ttempt
to
rotate
the
Cycle
Conversion
Switches
when
the
motor
is
not
running
.
TAPE LOADING
Place a full reel
of
tape
on
the Supply Reel Table and an
empty
reel
on
the Take-Up Reel Table. Thread the tape
as
illustrated
by
the
dotted
lines in the figure. Lock reels inl:o
place with Reel Retainers provided
on
reel shafts.
To Next Page
