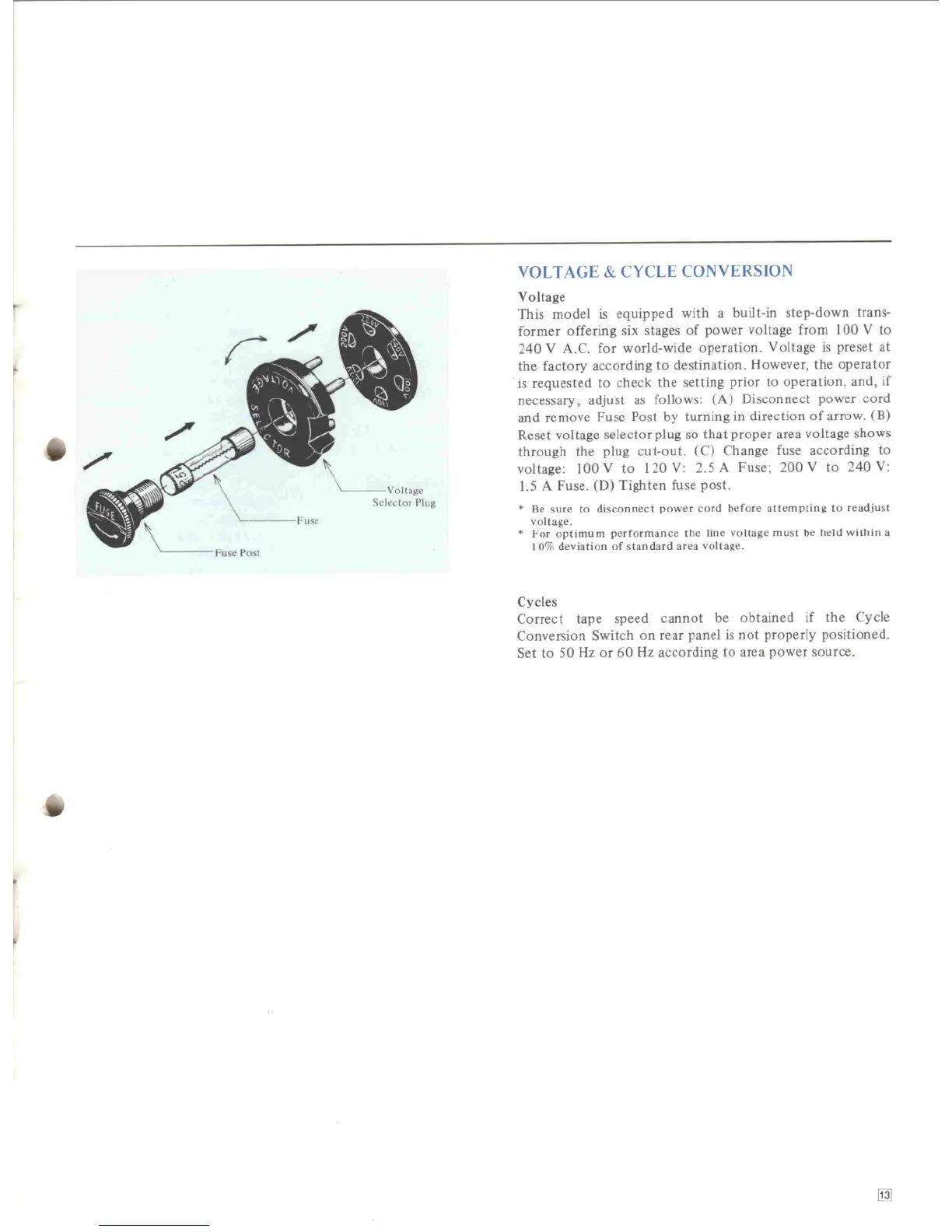

VOLTAGE & CYCLE CONVERSION
~
./'
~x- '
I
'
.JIII'.JIII' ~
\ L
L-
Voltage
F
Selector PI
use
ug
Voltage
This model is equipped with a built-in step-down trans-
former offering six stages of power voltage from 100 V to
240 V A.C. fOT world-wide operation. Voltage is preset at
the factory according to destination. However, the operator
.
is requested to check the setting prior to operation, and, if
necessary, adju'st as follows: (A) Oisconnect power cord
and remove Fuse Post by turning in direction of arrow. (B)
Reset voltage selector pluS so that proper area voltage shows
through the pluS cut-out. (C) Change fuge according to
voltage: 100 V to 120 V: 2.5 A Fuse; 200 V to 240 V:
1.5 A Fuse. (0) Tighten fuge post.
Fuse Post
.
Be sure to disconnect power cord before attempting to readjust
voltage.
.
For optimum performance the Une voltage must be held within a
10% deviation of standard area voltage.
Cycles
Correct tape speed cannot be obtained if the Cycle
Conversion Switch on rear panel is not properly positioned.
Set to 50 Hz or 60 Hz according to area power source.
.
~
