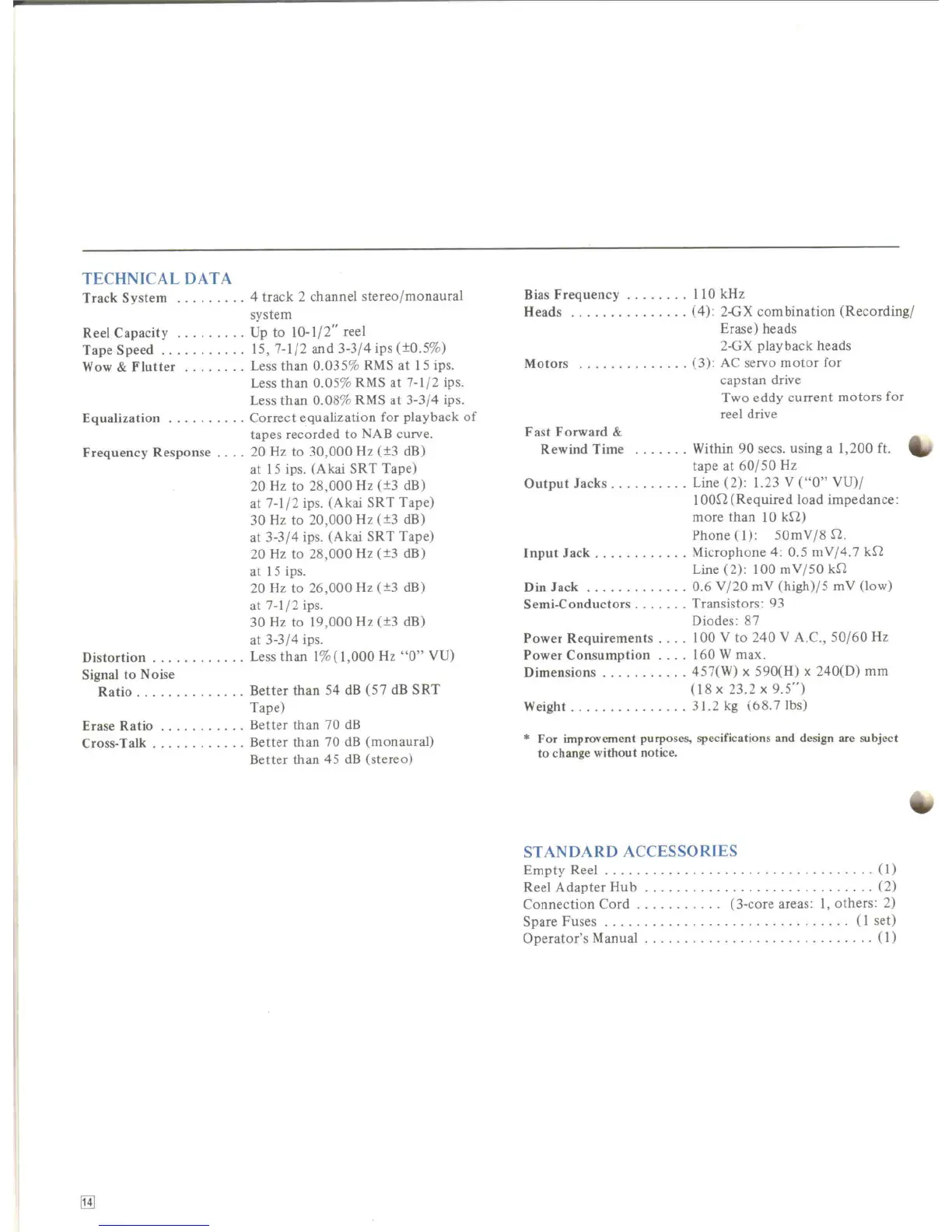

TECHNICAL DATA
Track System. . . . . . . . . 4 track 2 channel stereo/monaural
system
ReeiCapacity .... Upto 10-1/2"reel
Tape Speed. . . . . . . . . . . 15,7-1/2 and 3-3/4 ips (fO.5%)
Wow & F1utter Less than 0.035% RMS at 15 ips.
Less than 0.05% RMS at 7-1/2 ips.
Less than 0.08% RMS at 3-3/4 ips.
Equalization , Correct equalization für playback of
tapes recorded to NAB CUIVe.
Frequency Response. . . . 20 Hz to 30,000 Hz (f3 dB)
at 15 ips. (Akai SR T Tape)
20 Hz to 28,000 Hz (f3 dB)
at 7-1/2 ips. (Akai SRT Tape)
30 Hz to 20,000 Hz (f3 dB)
at 3-3/4 ips. (Akai SRT Tape)
20 Hz to 28,000 Hz (f3 dB)
at 15 ips.
20 Hz to 26,000 Hz (f3 dB)
at 7-1/2 ips.
30 Hz to 19,000 Hz (f3 dB)
at 3-3/4 ips.
Distortion. . . . . . . . . . . . Less than 1% (1,000 Hz "0"
VU)
Signal to Noise
Ratio. . . . . . . . . . . . . . Better than 54 dB (57 dB SRT
Tape)
Erase Ratio. . . . . . . . . . . Better than 70 dB
Cross-Talk. . . . . . . . . . . . Better than 70 dB (monaural)
Better than 45 dB (stereo)
lHJ
Bias Frequency . . . . . . . . 110 kHz
ßeads (4): 2-GX combination (Recording/
Erase) heads
2-GX playback heads
Motors. . . . . . . . . . . . . . (3): AC seIVOmotor für
capstan drive
Two eddy current motors für
reel drive
Fast Forward &
Rewind Time. . . . . . . Within 90 sees. using a 1,200 ft.
tape at 60/50 Hz
Output Jacks . . . . . . . . . . Line (2): 1.23 V ("0" VU)/
10051(Required load impedance:
more than 10 kn)
Phone (1): 50mV/8 n.
Input Jack. . . . . . . . . . . . Microphone 4: 0.5 mV/4.7 kn
Line (2): 100 mV/50 kn
Din Jack 0.6 V/20 mV (high)/5 mV (low)
Semi-Conductors. . . . . . . Transistors: 93
Diodes: 87
Power Requirements . . .. 100 V to 240 V A.C., 50/60 Hz
Power Consumption 160 W max.
Dimensions. . . . . . . . . . . 457(W) x 590(H) x 240(D) rnrn
(18 x 23.2 x 9.5")
Weight. . . . . . . . . . . .. . . 31.2 kg (68.71bs)
~
*
For improvement purposes, specifications and design are subject
to change without notice.
.,
STANDARD ACCESSORIES
ErnptyRee1 (1)
ReelAdapterHub (2)
Connection Cord. . . . . . . . . .. (3-core areas: 1, others: 2)
Spare Fuses , (1 set)
Operator'sManual
(l)
