MONAURAL
.
I
I
Track 1
.
Mono 1 -
n
2
4-
3
11
3-
.
4
2--
Track 1
Mono1-
2
11
4-
.
3
3-
4
.
2-
[I
Track1
2
3
4
STEREO
I I
. StereoL1-
R2-
. StereoR1-
L2-
.
.
Track 1
2
3
4
L1-
R2-
R1-
L2--
-
-
~
.
~
.- ....

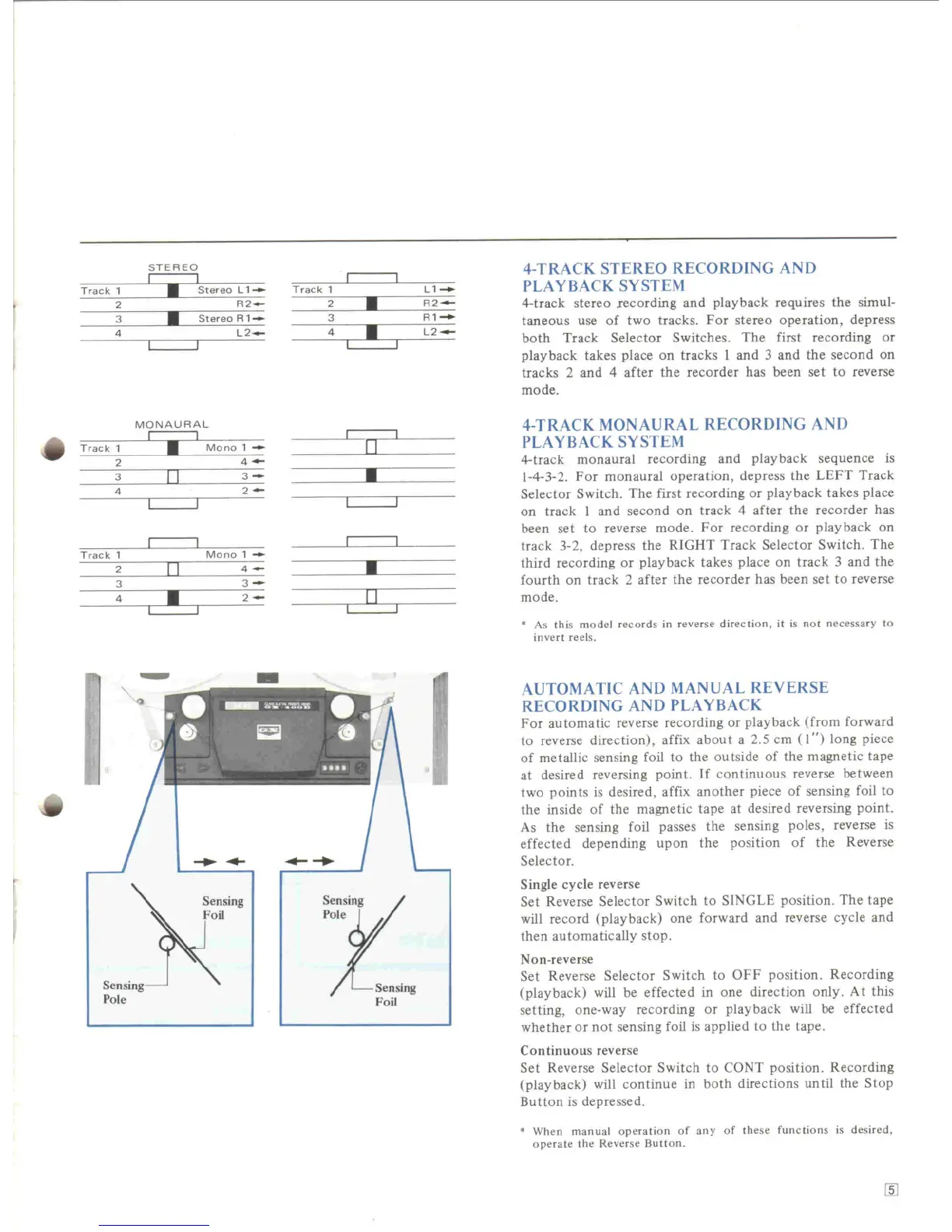

4-TRACK STEREO RECORDING AND
PLAYBACK SYSTEM
4-track stereo eecording and playback requires the sirnul-
taneous use of two tracks. For stereo operation, depress
both Track Selector Switches. The first recording or
playback takes place on tracks 1 and 3 and the second on
tracks 2 and 4 after the recorder has been set to reverse
mode.
4-TRACK MONAURAL RECORDING AND
PLA YBACK SYSTEM
4-track monaural recording and playback sequence is
1-4-3-2. For monaural operation, depress the LEFT Track
Selector Switch. The first recording or playback takes place
on track 1 and second on track 4 after the recorder has
been set to reverse mode. For recording or playback on
track 3-2, depress the RIGHT Track Selector Switch. The
third recording or playback takes place on track 3 and the
fourth on track 2 after the recorder has been set to reverse
mode.
.
As this model records in reverse direction, it is not necessary to
invert reels.
AUTOMA TIC AND MANUAL REVERSE
RECORDING AND PLAYBACK
For automatie reverse recording or playback (from forward
to reverse direction), affix about a 2.5 cm (1") long piece
of metallic sensing foi! to the outside of the magnetic tape
at desired reversing point. If continuous reverse between
two points is desired, affix another piece of sensing foil to
the inside of the magnetic tape at desired reversing point.
As the sensing foil passes the sensing poles, reverse is
effected depending upon the position of the Reverse
Selector.
Single cycle reverse
Set Reverse Selector Switch to SINGLE position. The tape
will record (playback) Olle forward and reverse cyc1e and
then automatically stop.
Non-reverse
Set Reverse Selector Switch to OFF position. Recording
(playback) will be effected in Olle direction only. At this
setting, one-way recording or playback will be effected
whether or not sensing foi! is applied to the tape.
Continuous reverse
Set Reverse Selector Switch to CaNT position. Recording
(playback) will continue in both directions until the Stop
Button is depressed.
.When manual operation of any of these functions is desired,
operate the Reverse Button.
[ID
