Akai GXC-570D

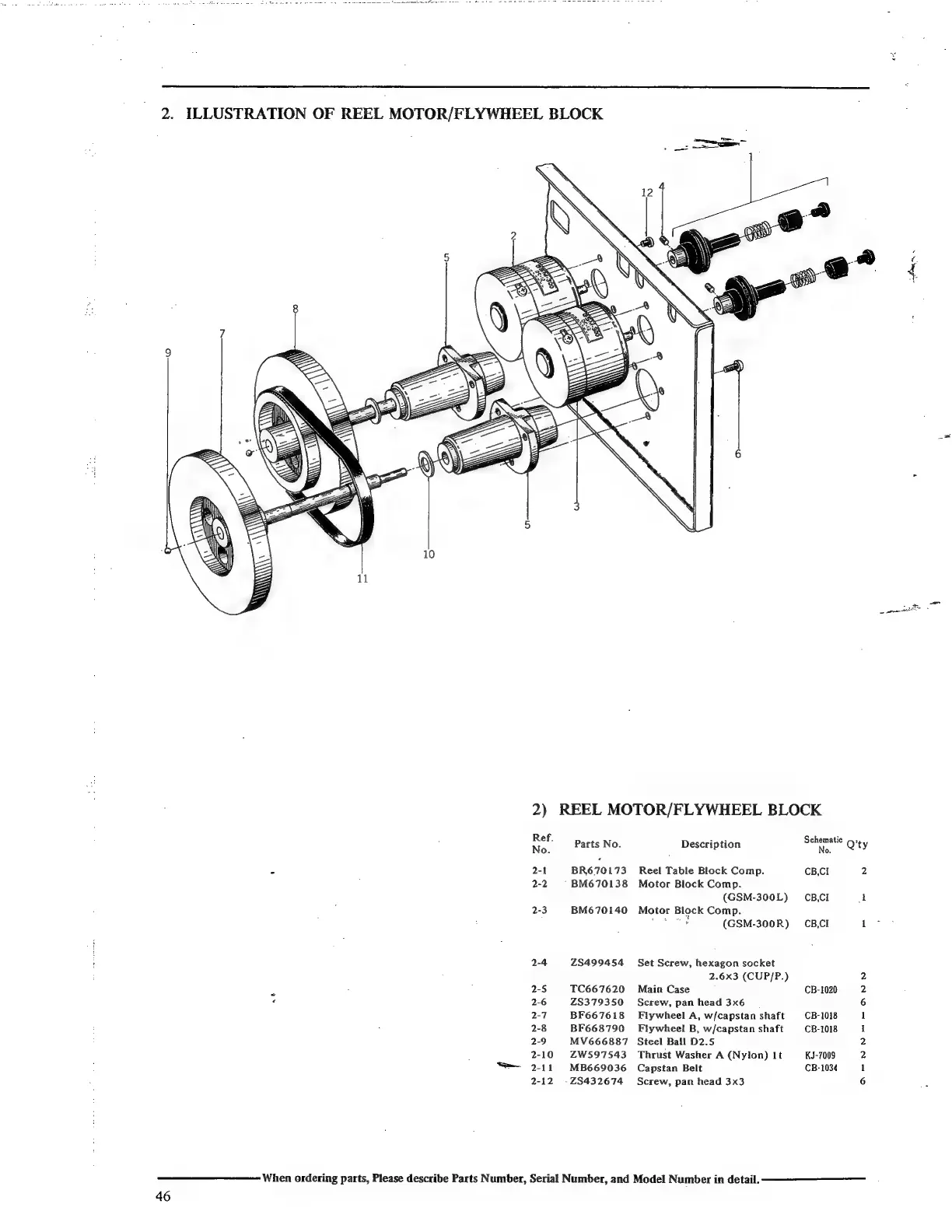

2) REEL MOTOR/FLYWHEEL BLOCK
Ref.
No.
- 2-1
2-2
2-3
2-4
2-5
‘ 2-6
2-7
2-8
2-9
2-10
wd
2-12
Parts No.
BR670173
BM670138
BM670140
ZS499454
TC667620
ZS379350
BF667618
BF668790
MV666887
ZW597543
MB669036
-Z8432674
Description
Reel Table Block Comp.
Motor Block Comp.
(GSM-300L)
Motor Block Comp.
ee (GSM-300R)
Set Screw, hexagon socket
2.6x3 (CUP/P.)
Main Case
Screw, pan head 3x6
Flywheel A, w/capstan shaft
Flywheel B, w/capstan shaft
Steel Ball D2.5
Thrust Washer A (Nylon) It
Capstan Belt
Screw, pan head 3x3
Schematic Q't
No. y
CB,CI 2
CB,CI i
CB,CI i
2
CB-1020 2
6
CB-1018 i
CB-1018 1
2
KJ-7009 2
CB-1034 1
6
When ordering parts, Please describe Parts Number, Serial Number, and Model Number in detail. ——-——————_
46
