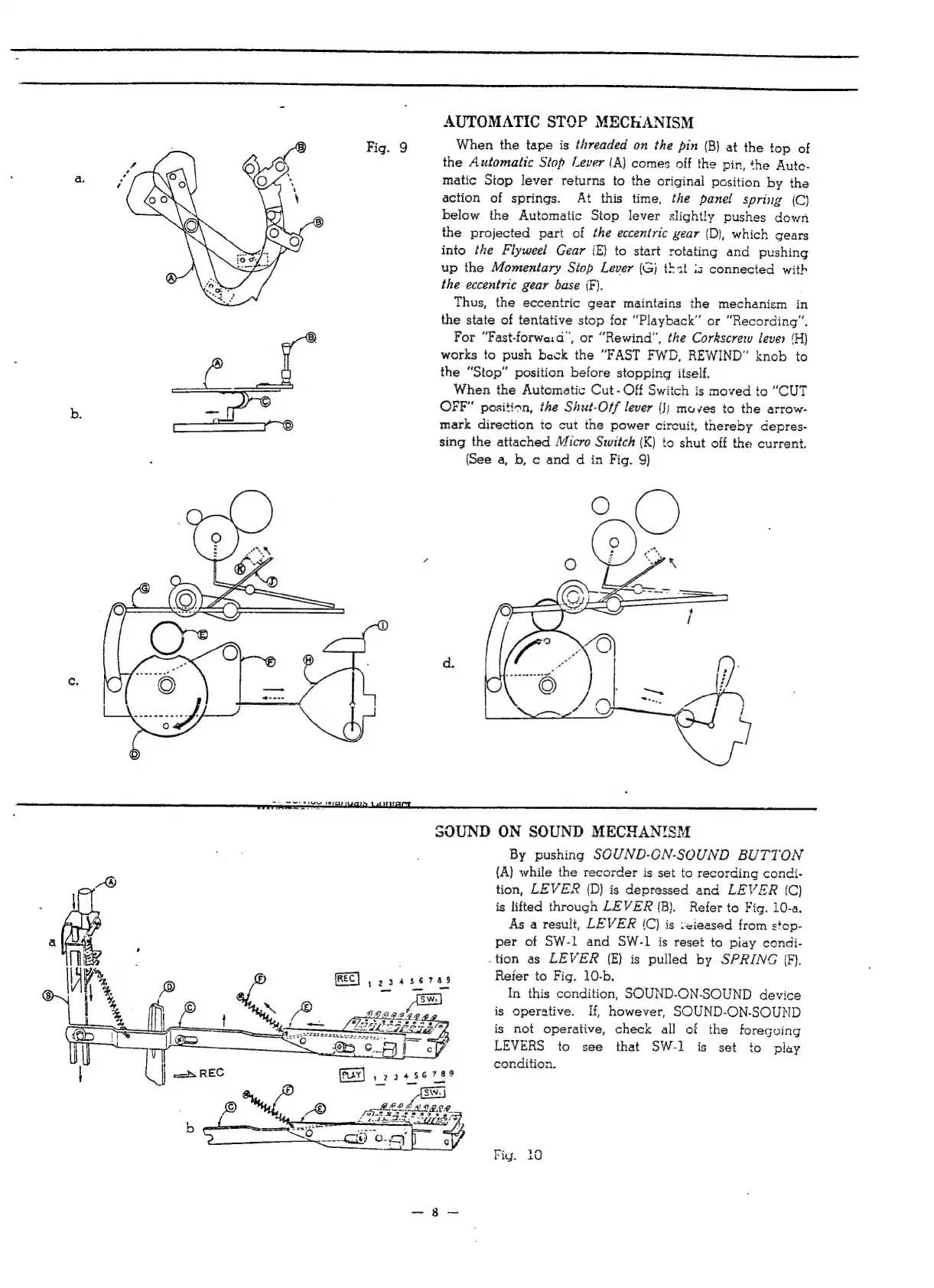

Fig.
9
AUTOMATIC
STOP
MECHANISM
When
the
tape
is
threaded
on
the
pin
(B)
at
the
top
of
the
Automatic
Stop
Lever
{A)
comes
off
the
pin,
the
Auto.
matic
Stop
lever
returns
to
the
original
position
by
the
action
of
springs.
At
this
time,
the
panel
spring
(C)
below
the
Automatic
Stop
lever
slightly
pushes
down
the
projected
part
of
the
eccentric
gear
(D},
which
gears
into
the
Flyweel
Gear
(E)
to
start
rotating
and
pushing
up
the
Momentary
Stop
Lever
(G}
thst
is
connected
with
the
eccentric
gear
base
(F).
Thus,
the
eccentric
gear
maintains
the
mechanism
in
the
state
of
tentative
stop
for
“Playback”
or
“Recording”.
For
“Fast-forwa:a’,
or
“Rewind”,
the
Corkscrew
lever
'H)
works
to
push
back
the
"FAST
FWD,
REWIND”
knob
to
the
“Stop”
position
before
stopping
itself.
When
the
Automatic
Cut-Off
Switch
is
moved
to
“CUT
OFF"
position,
the
Shut-Off
lever
(J)
moves
to
the
arrow-
mark
direction
to
cut
the
power
circuit,
thereby
depres-
sing
the
attached
Micro
Switch
(K)
to
shut
off
the
current.
(See
a,
b,
c
and
d
in
Fig.
9)
SOUND
ON
SOUND
MECHANISM
By
pushing
SOUND-CN-SOUND
BUTTON
{A)
while
the
recorder
is
set
to
recording
condi-
tion,
LEVER
(D)
is
depressed
and
LEVER
(C)
is
lifted
through
LEVER
(B).
Refer
to
Fig.
10-a.
As
a
result,
LEVER
'C)
is
veieased
from
stop-
per
of
SW-l
and
SW-1
is
reset
to
play
condi-
.tion
as
LEVER
(E)
is
pulled
by
SPRING
(F).
Refer
to
Fig.
10-b.
In
this
condition,
SOUND-ON-SOUND
device
is
operative.
If,
however,
SOUND-ON-SOUND
is
not
operative,
checx
all
of
the
foregoing
LEVERS
to
see
that
SW-1
is
set
to
play
condition.
