Akai MPC 1000 User Manual

MPC1000 v2 Operator’s Manual rev 1.0
5

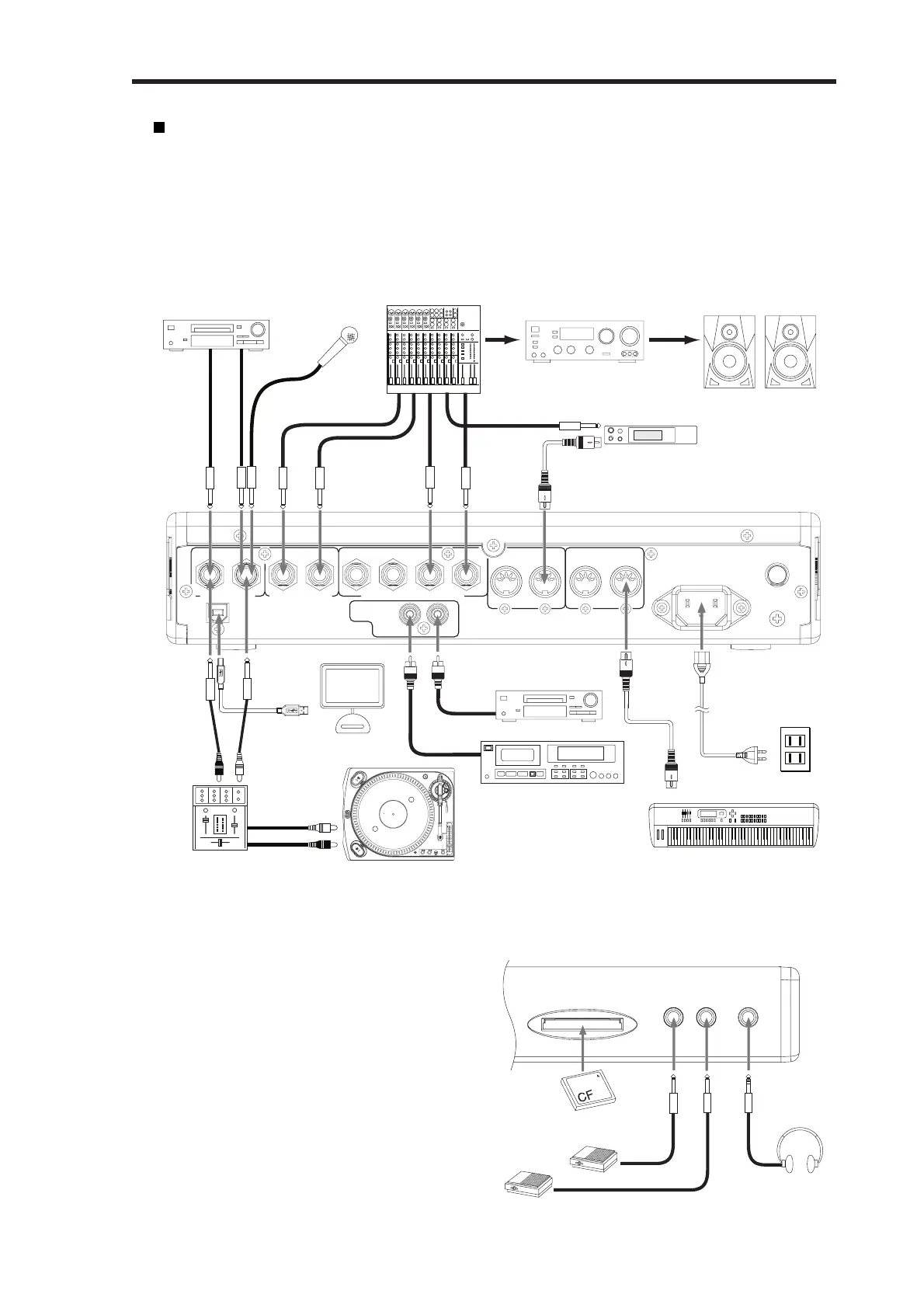

Connecting MPC1000 to External Audio/MIDI device
The diagram below demonstrates how you can connect the MPC1000 to an external Audio/MIDI device.
Please note that this is one example, so, when you actually connect your devices, refer to the device’s operator's manual.
Note: When you connect devices, make sure the power is turned off.
PC or MAC
MIDI Keyboard
DIGITAL
OUT IN
USB
RECORD IN
RIGHT LEFT RIGHT LEFT
4321
STEREO OUT ASSIGNABLE MIX OUT
MIDI OUT
AB
MIDI IN
12
LINE OUT
CD Player
DIGITAL
OUT
CD Player
Microphone
INPUT
Mixer
DJ Mixer
MASTER
OUT L/R
Amplifier
Monitor Speaker
Sound Module
MIDI IN
AUDIO OUT
MIDI OUT
MD Recorder
USB
DIGITAL
IN
Turn Table
PHONO
Headphone
PHONES
FOOTSWITCH
12
Footswitch
Compact Flash

Akai MPC 1000 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Bit Depth	16-bit
Sequencer	Yes
Sequencer Resolution	96 PPQ
Sample Memory	16 MB standard, expandable to 128 MB
Storage	Compact Flash card slot
USB	USB 1.1
Pads	16 velocity and pressure sensitive pads
Sample Format	WAV
Effects	Yes
Display	240 x 64 pixel LCD
MIDI	In, Out, Thru
Power Supply	AC adapter
