AL-KO AMS2 - Radio Remote Control; LED Indicator Meanings

Radio remote control
694 570_b 25
RADIO REMOTE CONTROL
AMS II
FUNK-CAN
5
A
ADAPTER
3
4
1
2
B
A
5
a
b
c
0
I
d
f
e
g

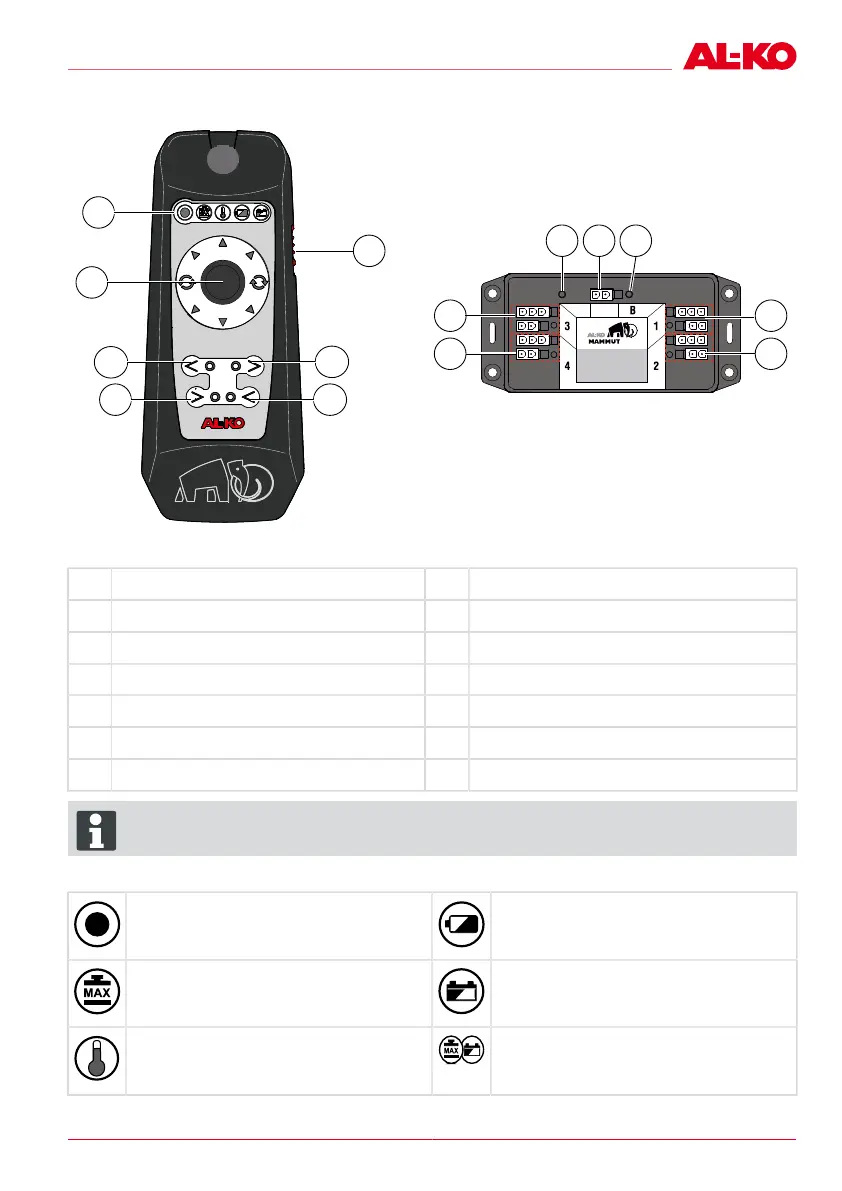

Fig. 2: Radio remote control
a LED indicators 1 Sockets and LED for drive front left
b Master switch (I = ON / 0 = OFF) 2 Sockets and LED for drive front right
c Joystick 3 Sockets and LED for drive rear left
d Moving drives away from the wheels 4 Sockets and LED for drive rear right
e Moving drives away from the wheels 5 Socket for release switch
f Moving drives up to the wheels A Teach-in button
g Moving drives up to the wheels B RADIO CAN ADAPTER release button
ADVICE
Two-hand operation!
Keys d + e or f + g must always be pressed at the same time.
Meaning of the LED indicators
LED operating status Remote control battery status
Maximum gradeability reached Battery status of supply battery for drives
Maximum drive temperature reached Only retracting now possible – driving
function blocked! See Help in case of
malfunctions
