Albany 355 - Installation of Manual Disengagement Lever; Top Roll Bearing Bracket (Top View)

13 Nov. 2006

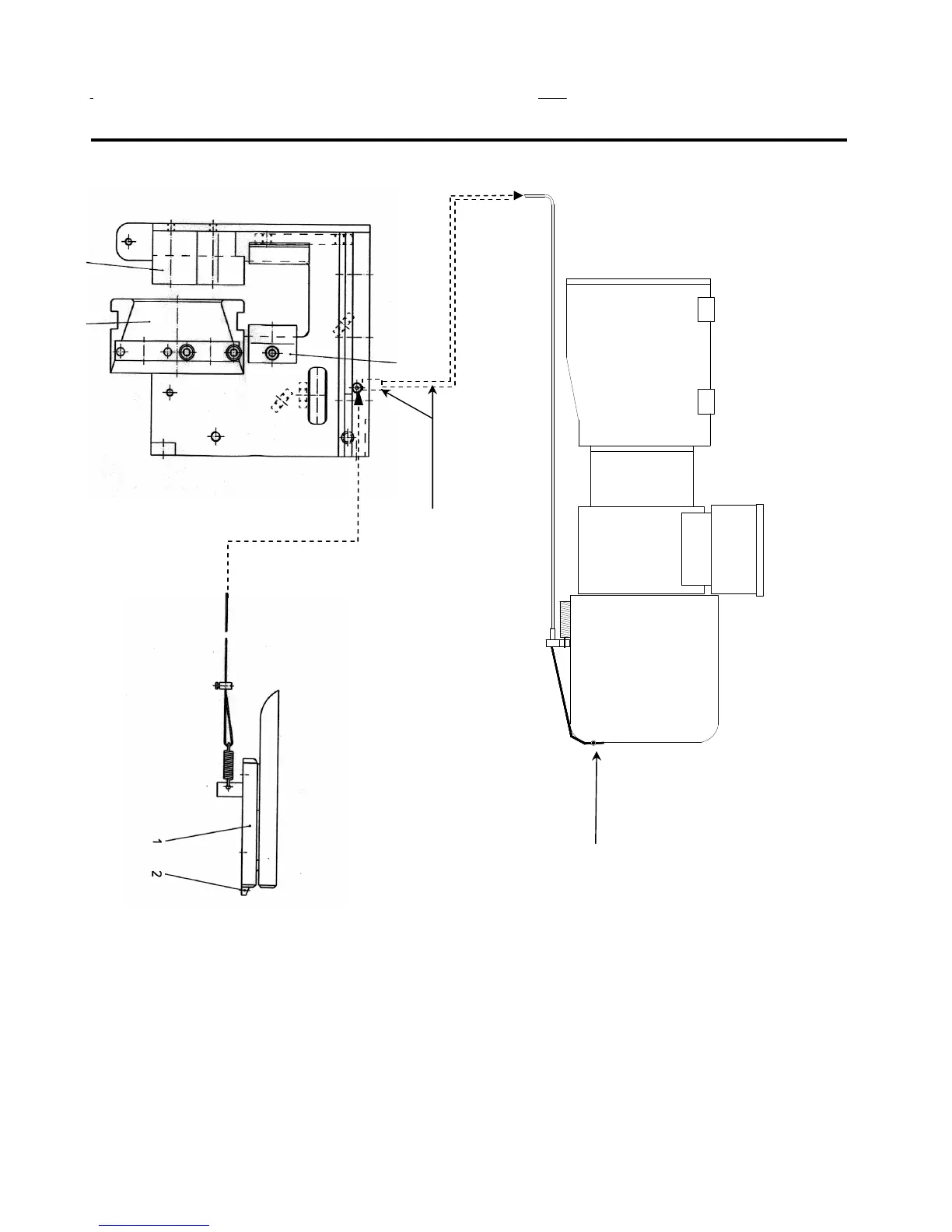

INSTALLATION OF MANUAL DISENGAGEMENT LEVER
TOP ROLL BEARING BRACKET (TOP VIEW)
DRIVE UNIT
1. RUN BARE CABLE UP THROUGH SIDE
FRAME AND SMALL HOLE IN BEARING
PLATE.
CABLE SHEATH
STARTS HERE.
RUN CABLE
FROM TOP OF
BEARING PLATE
OVER TO DRIVE
UNIT.
SECURE BARE CABLE TO
BOTTOM OF MOTOR COVER
USING SUPPLIED CABLE CLAMP.
ALSO REFER TO FIGURE 6
Figure 9
