8 Nov. 2006
Step 6
. Attach width gauge to the rear of door at both head plates. Removal of the black plastic funnels
on the head plates will make installing the width gauge easier along with the routing of the photocell
cables. Run wires under the back funnel and inside width gauge, from non-drive side to drive side of
door. These wires are for photocells, contactless safety edge photocells, and SRD2™ sensors.

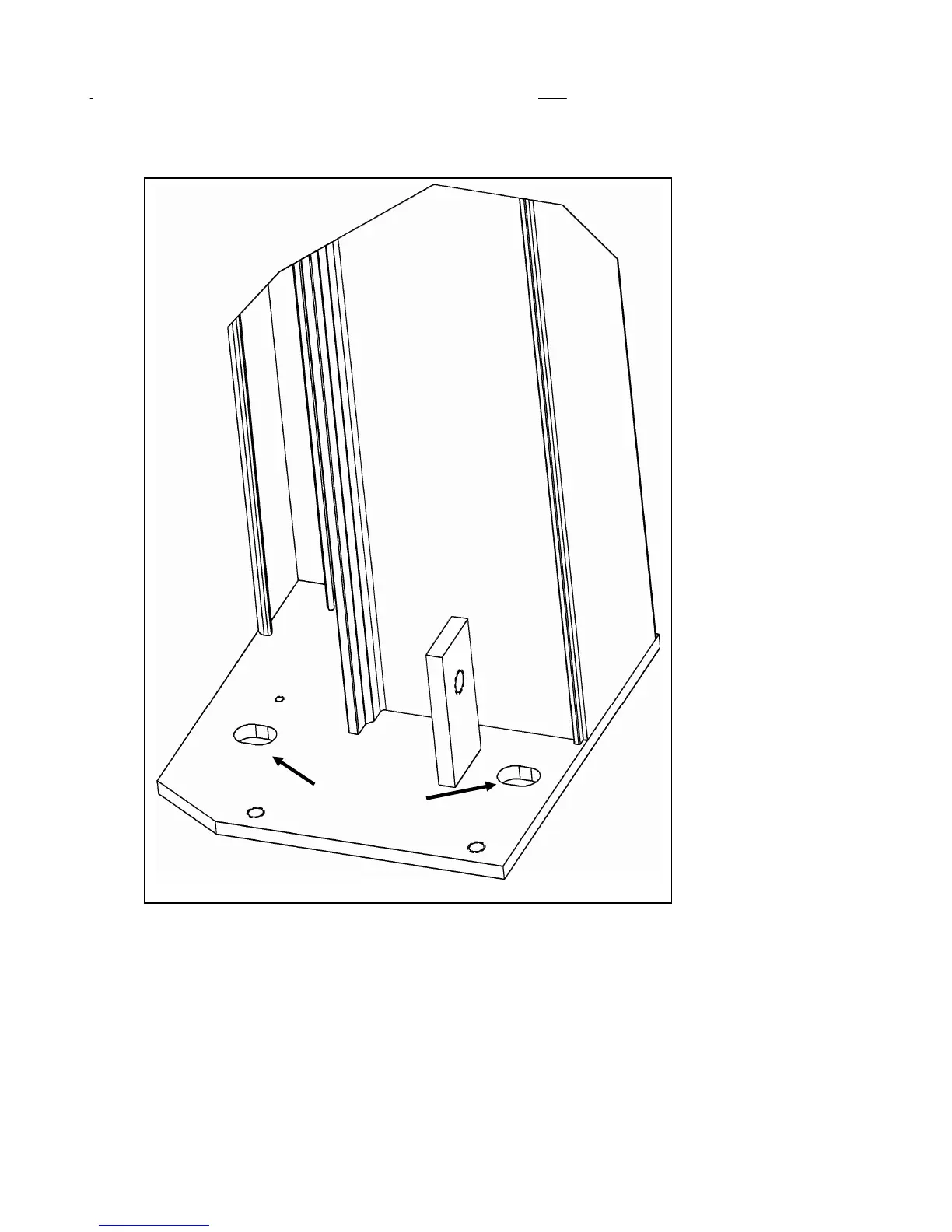

Figure 2
Slotted Holes
To Next Page
