4.2 Installing the battery pack
If the battery pack has been removed from the wheelchair, you have to insert it back into
the battery pack bag [12] on the wheelchair before starting up the Esprit.

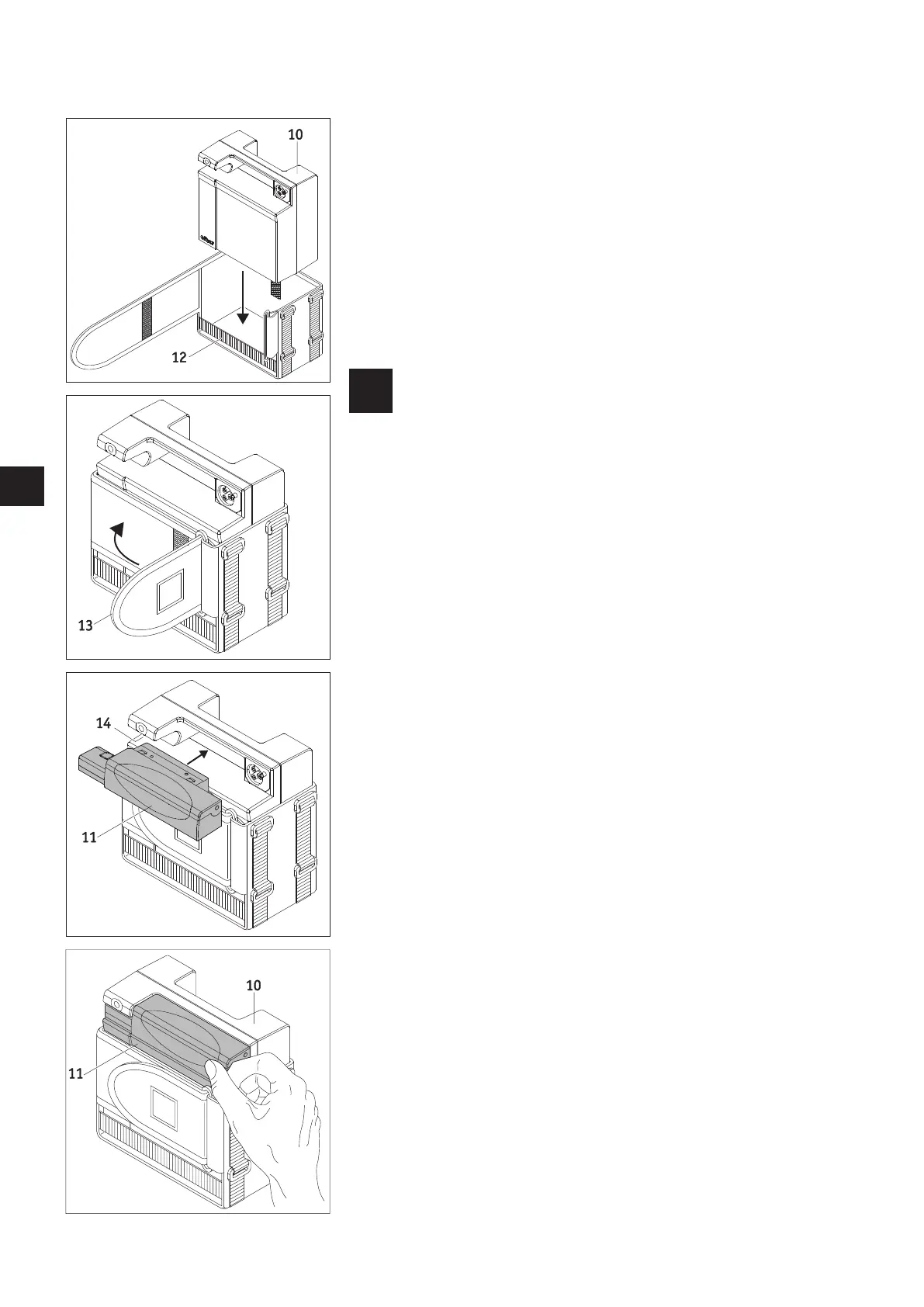

• Put the battery pack [10] in the battery pack bag [12] as shown in the diagram
(socket of the interface facing forwards).
• Seal the battery pack bag [12] with the Velcro fastener [13]. Ensure that the Vel-
cro strap is as close as possible to the housing of the battery pack [10].
• Insert the interface [11] into the battery pack as shown in the drawing. In doing
so, ensure that the cables are inside the opening [14].
• Press the interface [11] firmly against the housing of the battery pack [10].
The locking mechanism of the interface must lock into place in the battery pack in
the process!
Do not smoke when removing or attaching the battery pack!
Burning cigarettes could accidentally fall into the battery pack and
possibly set it on fire. Also do not smoke while using the wheel-
chair.
