Replacing the bit in the bit cartridge (3)
If the bits in the bit cartridge (3) need to be replaced, you can follow the
steps below (See Fig. B1-B4):
1) Pull the top slide cover (4) backwards completely.
2) Push the bit cartridge (3) out from the left window of the driver.
3) Replace the bit with the desired bit. Ensure the bits are properly
positioned in the bit cartridge (3) and are not protruding from the
back of the bit cartridge (3).
4) Push the bit cartridge (3) back into the driver completely.
5) Push the top slide cover (4) forwards completely.
Or you can follow the steps below (See Fig. B5-B7):
1) Push the top slide cover (4) to the forward
position .
2) Simply pull the worn or broken bit out from
the chuck and replace it with a new one. It will
load into the bit cartridge (3) automatically
when the top slide cover (4) is pulled
backwards.
NOTE:
• Only 25mm bits are compatible with the screwdriver.
• If the top slide cover (4) is not pulled backwards fully, the bit
cartridge (3) will get stuck when taking it from the driver. Pull the
top slide cover (4) all the way back.
• The top slide cover (4) may not fully push forwards if the bit cartridge
(3) is not positioned properly. Make sure the bit cartridge (3) has
clicked into place. If the top slide cover (4) cannot be pushed forwards,
turn the bit cartridge (3) slightly anti-clockwise and try again.

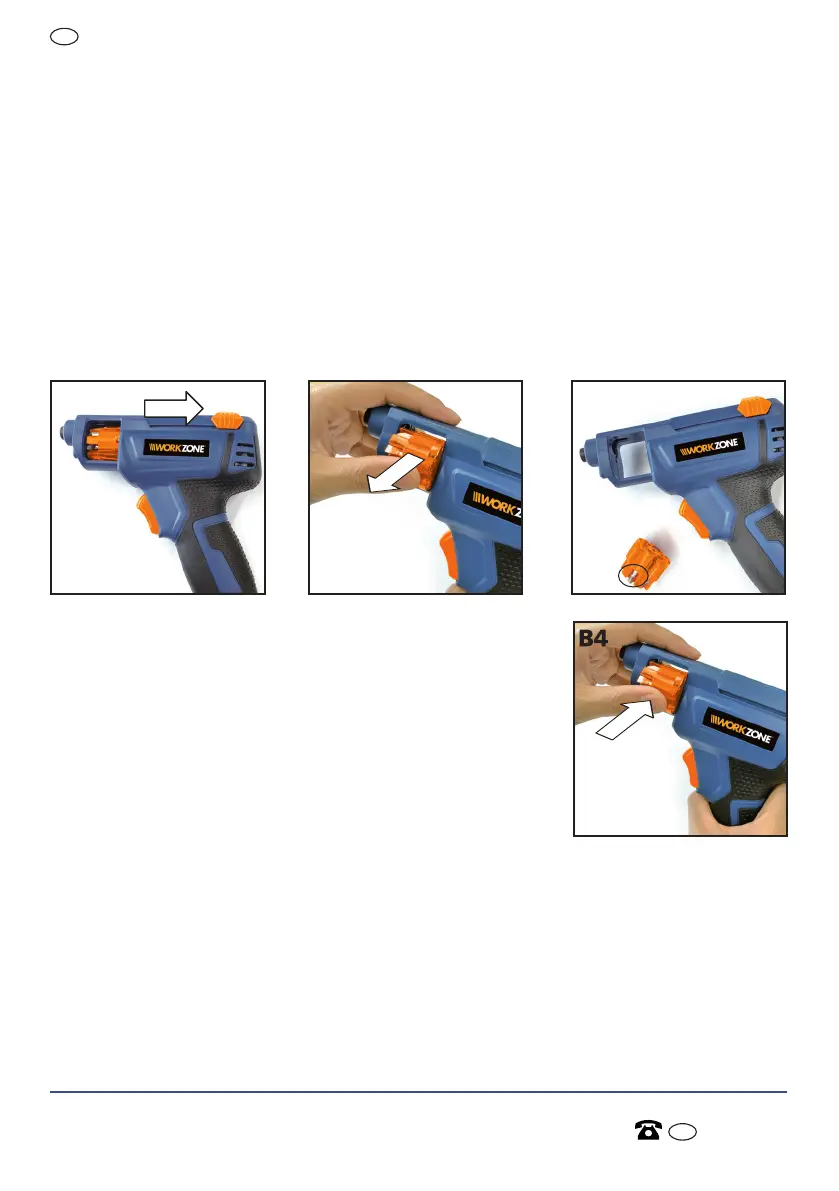

B1 B2 B3
