Alesis 3 - POWER

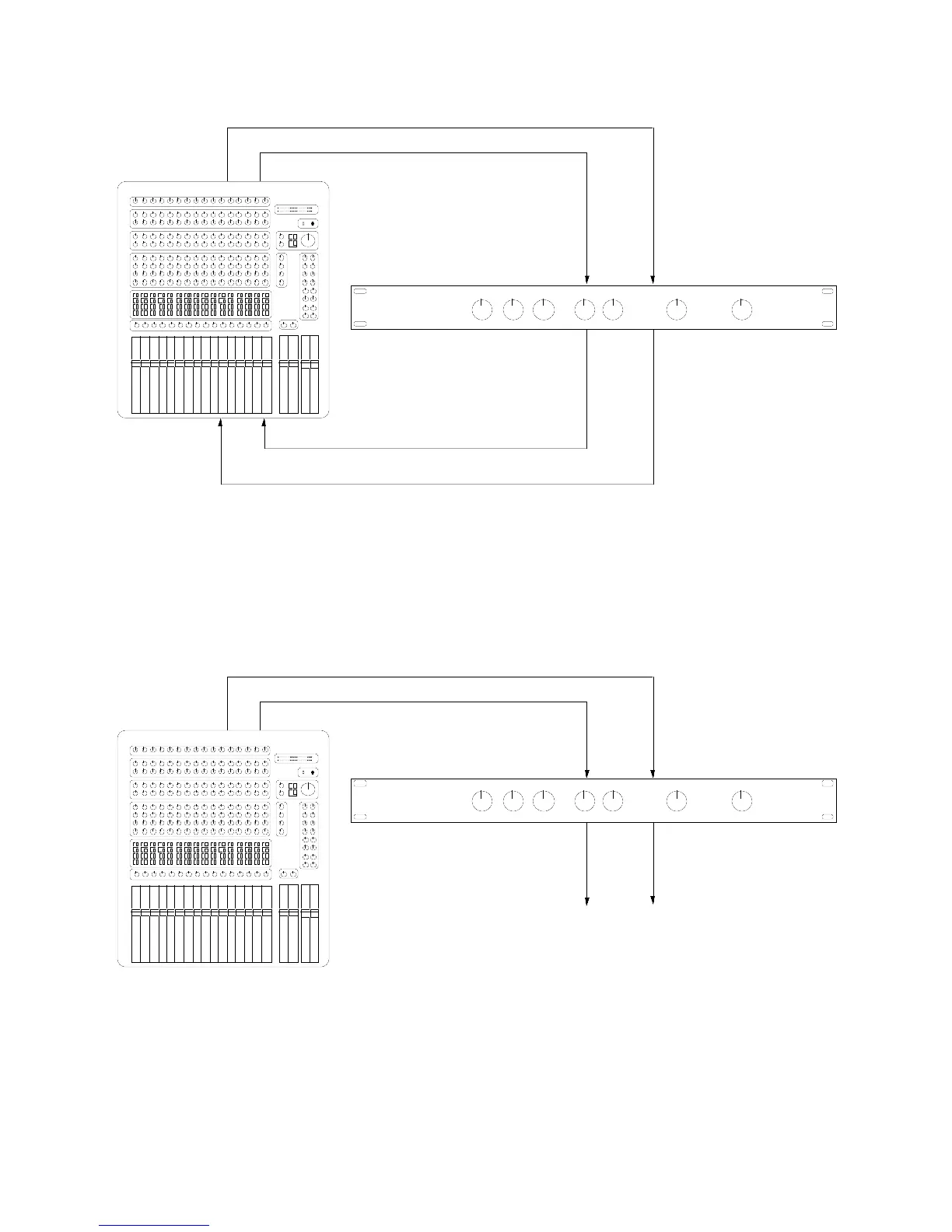

FIGURE 2
STEREO CONNECTION TO MIXING CONSOLE VIA AUX SENDS AND RETURNS
Another way of interfacing the MICROVERB III unit to a mixer or recording console would be in-line
across the output of your mixing console. See figure 3 This method should only be used if you
needed to effect the entire mix, since the same effect would be on all of the instruments or vocals.
FIGURE 3
STEREO CONNECTION TO THE MICROVERB III USING THE MAIN OUTPUTS
POWER
The MICROVERB III is powered by a remote supply providing 9 volts AC through a 3.5mm barrel
plug. This power supply approach keeps stray magnetic fields from interfering with low level signals,
allowing easy conversion to alternate power sources (220V).
Main Out Right
Main Out Left
Left Input
Right Input
Left Output
Right Output
To Mixdown Deck or
Sound System
Aux Send 1
Aux Send 2 (Optional)
Left Input
Right Input
Left Output
Right Output
Aux Return or Input Channel
Aux Return or
Input Channel
